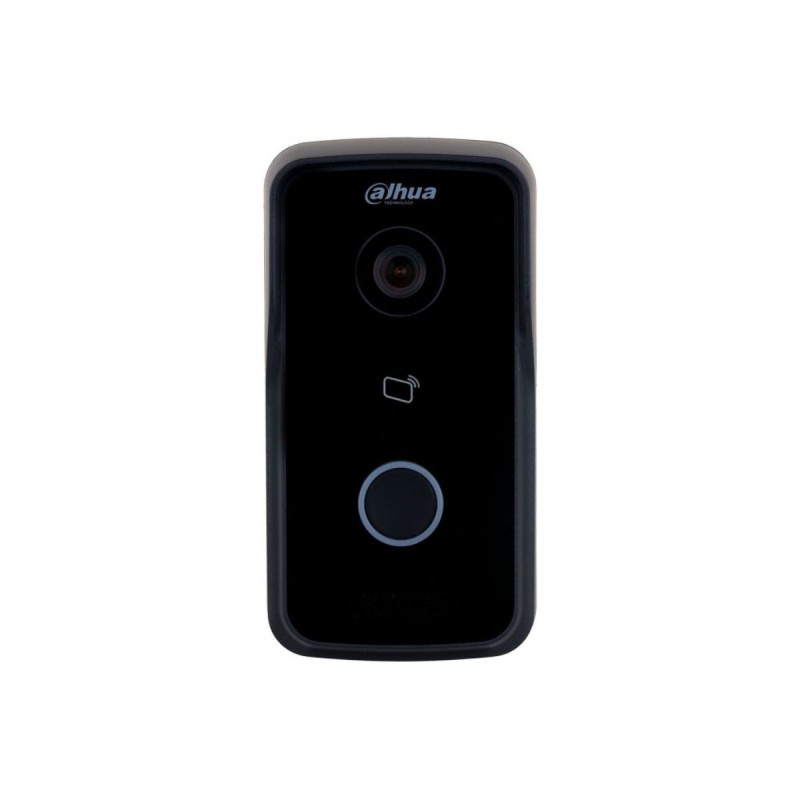

Dahua DHI-VTO2111D-P-S3 - SIP Video Door Turntable

The Dahua SIP video door entry system offers advanced security with a 2-megapixel camera, 10,000 card management capacity, and dual lock control, all in a rugged IP65 enclosure and packed with comprehensive features like two-way audio and night vision.

Highlights of the Dahua Street Station

• Large management capacity : Supports up to 10,000 access cards, providing flexibility for large residential or commercial developments.

• Advanced Night Vision : Equipped with infrared illumination and a 2-megapixel CMOS sensor with day/night mode for clear visibility in all conditions.

• Versatile Control : Allows unlocking by card, from the indoor monitor, or remotely via an app, with the ability to control up to two locks.

The Dahua SIP video door entry system is designed to meet the most demanding security needs with impressive flexibility. Featuring a 2-megapixel CMOS camera with enhanced night vision thanks to infrared illumination, it ensures exceptional image quality even in low-light conditions. The viewing angle of 107° (horizontal), 60° (vertical) and 122° (diagonal) allows a wide area to be covered for complete surveillance of the entrance.

This model stands out for its extensive management capability, supporting up to 10,000 access cards, making it ideal for high-traffic environments such as residential complexes or commercial buildings. It also offers a variety of unlocking options: card-based, from an indoor monitor or remotely via a mobile app, as well as a dual-lock control function for enhanced security.

The Dahua video door entry system is protected by a rugged housing with IP65 protection, weatherproof, and an extended operating temperature range of -30°C to +60°C. It runs on a 12V DC power supply with support for the PoE standard for simplified installation. The integrated Linux operating system and on-board processor ensure stable and reliable performance, while digital communication features, including echo and noise cancellation, ensure clear exchanges with visitors.

Features of the Dahua SIP Video Door Phone

• Camera : 2 Megapixel CMOS, Day/Night Mode with ICR Mechanical Filter, Digital WDR, Low Light
• Angle of view : 107° (H), 60° (V), 122° (D)
• Video compression : H.265, H.264
• Video streams : 720P, WVGA, D1, CIF (25/30 fps) and 1080P, WVGA, D1, QVGA, CIF (25/30 fps)
• Audio compression : G.711a, G.711u, PCM
• Audio : Bidirectional, built-in speaker, echo and digital noise cancellation
• Card Management : Up to 10,000 cards, reading range 0~4.5cm
• Lock Control : Up to 2 locks, unlock by card, indoor monitor or app
• Storage & Connection : 1 x RS485 Port, 1 x 12V Power Output, 200 mA, 1 x Door Status Detection Port, 1 x Door Control Port (NC by default)
• Connectivity : 10/100M network interface, IPv4, RTSP, UDP, DNS, P2P, RTP, TCP, SIP
• Compatibility : Onvif support, CGI
• Protection : IP65 (requires silicone gasket)
• Materials : Polycarbonate and acrylic housing
• Power supply : 12V DC, 1A, supports standard PoE
• Power consumption : ≤1W (standby), ≤5W (operating)
• Operating temperature : -30°C ~ +60°C
• Humidity : 10%~90% (non-condensing)
• Dimensions : 70.6 (W) x 135 (H) x 34.6 mm
• Weight : 326 g
