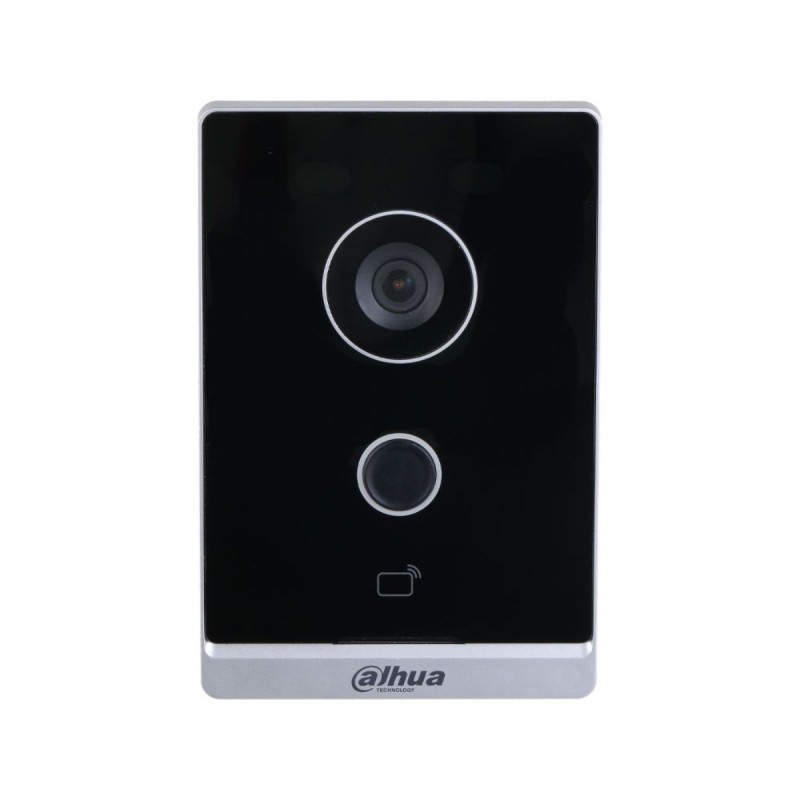

Dahua DHI-VTO2211G-WP-S2 - SIP Wi-Fi Video Door Phone Black

The Dahua SIP WiFi Video Door Phone combines advanced security with a 2-megapixel camera, dual lock control, and 10,000 card management, all in an ultra-thin and lightweight design with WiFi and PoE support.

Highlights of the Dahua Wi-Fi Video Door Phone

• Advanced Night Vision : 2-megapixel camera with infrared illumination and 120dB WDR for clear surveillance day and night.

• Flexible access management : Supports up to 10,000 access cards and allows unlocking by card, via the indoor monitor or remotely via the mobile app.

• Rugged and Stylish Design : Ultra-thin IP65 weatherproof enclosure, with WiFi integration and PoE support for easy and flexible installation.

The Dahua SIP WiFi Video Door Phone is designed to provide exceptional security and convenience for modern homes and offices. Featuring a 2-megapixel CMOS camera with a wide viewing angle of 125° (horizontal), 71° (vertical), and 142° (diagonal), it captures sharp, detailed images. Built-in infrared illumination and day/night mode with removable ICR filter ensure optimal visibility even in low-light conditions, while digital WDR improves image quality in high-contrast situations.

This model stands out for its ability to manage up to 10,000 access cards, providing exceptional flexibility for large residential complexes or commercial environments. Unlocking options include the use of smart cards, control via an indoor monitor, and remote unlocking through a mobile app. The doorman also supports the control of two locks, increasing the security of your entrance.

The ultra-thin and lightweight design of the Dahua SIP WiFi is paired with proven ruggedness with an IP65 rating, making it weatherproof. It also incorporates WiFi and supports standard PoE, facilitating flexible installation and reducing cabling requirements. The built-in Linux operating system and embedded processor ensure stable and reliable performance, while H.265 and H.264 video compression optimizes bandwidth utilization.

Features of the Dahua SIP Video Door Phone

• Camera : 2-megapixel 1/2.8" CMOS sensor
• Angle of view : 125° (H), 71° (V), 142° (D)
• Night Vision : Infrared illumination, day/night mode with removable ICR filter
• WDR : 120dB
• Noise Reduction : 3D
• Video stream :
  • Stream 1: 720P, WVGA, D1, CIF (25/30 fps)
  • Stream 2: 1080P, WVGA, D1, QVGA, CIF (25/30 fps)
• Video compression : H.265, H.264
• Audio : G.711a, G.711u, PCM, bidirectional compression with echo and digital noise cancellation
• Unlocking : By card, on indoor monitor, remotely via app
• Card Management : Up to 10,000 cards, reading range 0~4.3cm
• Storage : SD card slot up to 256GB (card not included)
• Connectivity :
  • WiFi IEEE802.11b/g/n 2.4GHz
  • 10/100M network interface
• Network protocols : IPv4, RTSP, UDP, DNS, P2P, RTP, TCP, SIP
• Compatibility : Onvif, CGI
• Ports :
  • 1 RS485 port
  • 1 alarm input / 1 alarm output
  • 1 x 12V power output, 200 mA
  • 1 x Exit Button Port
  • 1 Door Status Detection Port
  • 1 Door Control Port (NC by default)
• Protection : IP65 (requires silicone gasket)
• Power supply : 12V DC, 1A, standard PoE
• Power consumption : ≤1W (standby), ≤7W (operating)
• Operating temperature : -30°C ~ +60°C
• Humidity : 10%~90% (non-condensing)
• Dimensions : 100 (W) x 150 (H) x 25.4 mm
• Weight : 490 g (net), 510 g (raw)
• Materials : Polycarbonate and acrylic, ultra-thin design
