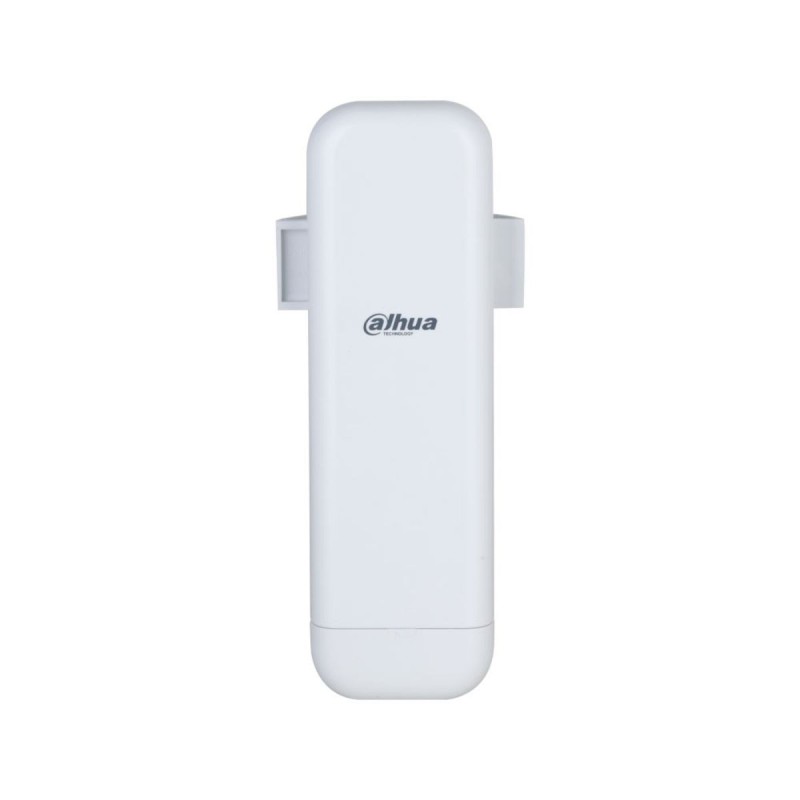

Dahua DH-WBC5-30AC-05P - 5km Wireless Bridge with 802.11ac 5.8G

The Dahua 5.8G WBC series wireless bridge is designed to offer high transmission rates and extended range of up to 5km. Using 802.11ac and TDMA technology, it is ideal for point-to-point and point-to-multipoint connections, with a bandwidth of up to 867 Mbps. Its cloud-based management and IP65 protection make it a reliable and easy-to-deploy solution for outdoor environments.

Wireless bridge highlights up to 5km

• Extended range and strong signal : Thanks to its reinforced antenna, it can transmit wireless signals over distances of up to 5 km.

• Large Bandwidth Capacity : Ensures lag-free transmission with up to 867 Mbps bandwidth, making full use of the capacity of the Gigabit Ethernet port.

• Easy Installation & Remote Management : Supports PoE to simplify installation and allows for easy management via the DoLynk Care app.

The Dahua 5.8G WBC Series Wireless Bridge is a high-performance connectivity solution, designed to meet the needs of high-speed data transmission over long distances. Equipped with 802.11ac and TDMA technology, it offers a bandwidth of more than 500 Mbps and allows optimal use of the Gigabit Ethernet port in point-to-point (PTP) or point-to-multipoint (PTMP) configurations.

Backward compatibility with Dahua wireless devices and the ability to upgrade existing networks ensure maximum flexibility. The integration of a 2.4 GHz Wi-Fi module for remote management simplifies network deployment and maintenance. With its PoE+ (802.3af/at) power supply and PoE output capabilities, the bridge reduces installation complexity by reducing the number of cables required.

Designed to withstand outdoor conditions, the wireless bridge features IP65 protection, making it waterproof and dustproof. It can operate in a wide range of temperatures, from -30°C to +65°C, and offers multiple installation methods, including wall and pole mounting.

Features of the Dahua Wireless Bridge

• Range : 5 km
• Wireless Standards : 802.11b/g/n (2.4 GHz), 802.11a/n/ac (5 GHz)
• Bandwidth : Up to 867 Mbps
• Antenna : Upgraded with 90° (H), 20° (V) direction angle
• Protection : IP65
• Connectivity :
  • 10/100/1000 Mbps RJ45 LAN1 port (PoE input)
  • 10/100Mbps RJ45 LAN2 port (PoE output)
• Network protocols : HTTPS, IPv4, UDP, NTP, DHCP, TCP
• Power Supply : PoE+ (802.3af/at), <30W Power Consumption
• Storage temperature : -40°C ~ +80°C
• Operating Temperature : -30°C ~ +65°C
• Operating Humidity : 5%~95% (non-condensing)
• Dimensions : 82 (W) x 268 (H) x 35 mm
• Weight : Net 370 g, Gross 1.16 kg
• LED Indicators : Yes
• Number of connected wireless terminals : Up to 8
• Installation Methods : Wall and Pole Mount

What is the purpose of the wireless bridge?

The Dahua 5.8G wireless bridge is used to create long-distance wireless network links between different geographical points. It is ideal for connecting remote surveillance cameras, eliminating the need for physical cables and providing a reliable and fast connectivity solution for varied environments such as parks, tourist areas, and factories.
