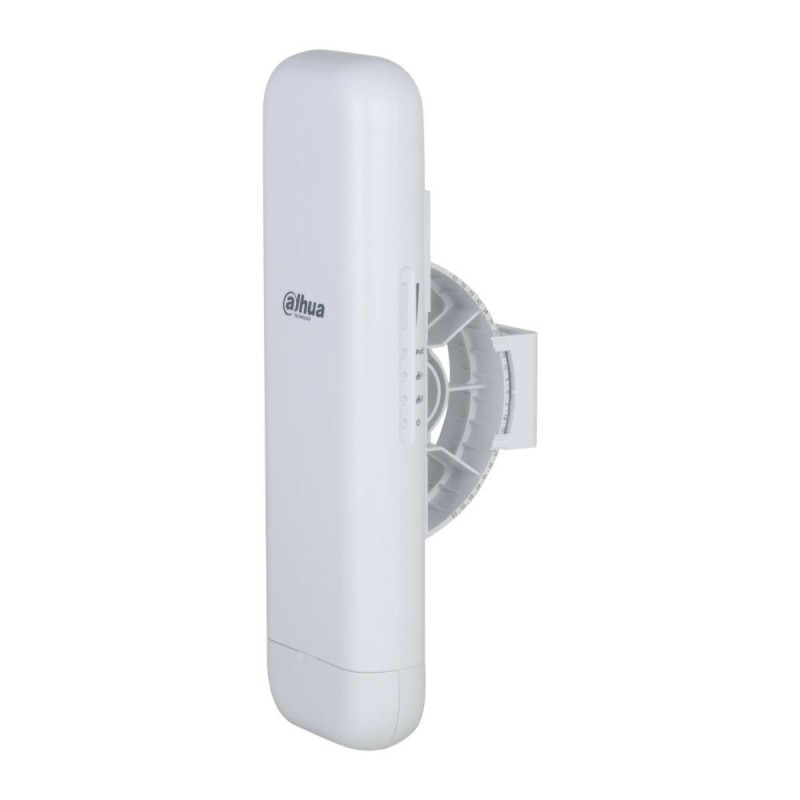

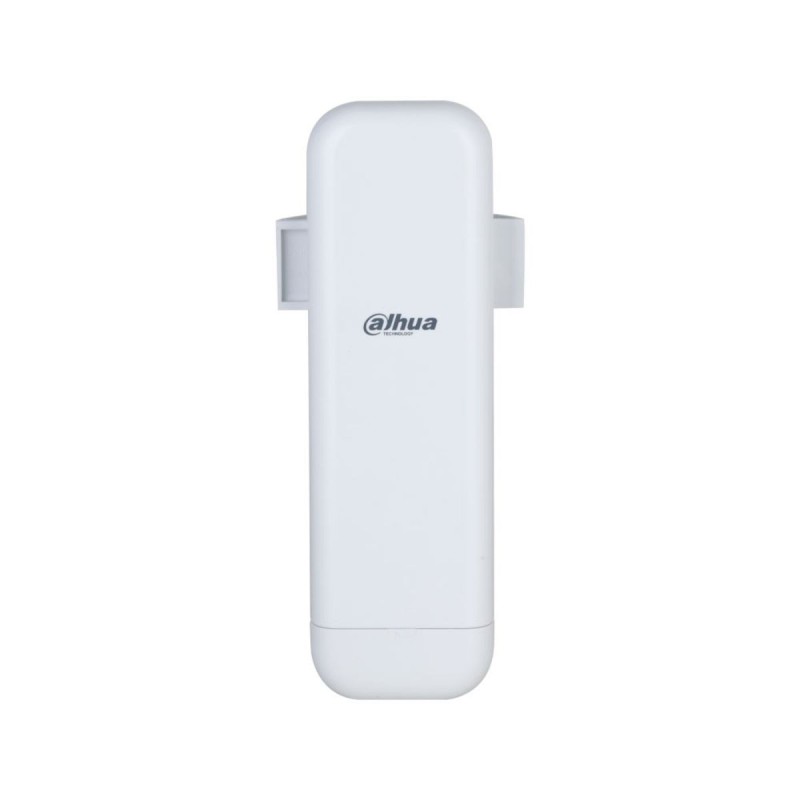

Dahua DH-WBC5-45AC-03P - 3km Wireless Bridge with 802.11ac 5.8G

The Dahua 5.8G wireless bridge is designed for long-distance connections up to 3 km, offering a high bandwidth of 867 Mbps and simplified installation with PoE power and cloud management.

Highlights of Dahua 3Km Wireless Bridge

• Extended Range & Strong Signal : With its reinforced antenna, it can transmit wireless signals over distances of up to 3km.

• Large Bandwidth Capacity : Ensures fast and lag-free transmission with up to 867 Mbps bandwidth.

• Simplified installation and remote management : Supports PoE input and output, and allows for easy management via the cloud.

The Dahua 5.8G Wireless Bridge is a high-performance connectivity solution that is ideal for environments that require reliable network connections over long distances. Thanks to 802.11ac and TDMA technology, this wireless bridge ensures high transmission rates with a bandwidth of up to 867 Mbps. Its 3 km range makes it a perfect choice for video surveillance installations, connections between buildings and other applications requiring stable wireless transmission.

The improved antenna allows for stable, interference-free transmission over long distances, while the integration of PoE+ (802.3af/at) power simplifies installation by reducing the number of cables required. In addition, the device supports cloud-based management, allowing operators to monitor and manage the network remotely via a dedicated application.

Built to withstand outdoor conditions, the wireless bridge features IP65 protection, making it waterproof and dustproof. It can operate in a wide range of temperatures, from -30°C to +65°C, and offers multiple installation methods, including wall and pole mounting.

Features of the Wireless Bridge for Video Surveillance

• Range : 3 km
• Wireless Standards : 802.11b/g/n (2.4 GHz), 802.11a/n/ac (5 GHz)
• Bandwidth : Up to 867 Mbps
• Antenna : Upgraded with 90° (H), 20° (V) direction angle
• Protection : IP65
• Connectivity :
  • 10/100/1000 Mbps RJ45 LAN1 port (PoE input)
  • 10/100Mbps RJ45 LAN2 port (PoE output)
• Network protocols : HTTPS, IPv4, UDP, NTP, DHCP, TCP
• Power supply : PoE+ (802.3af/at), <30 W power consumption
• Storage temperature : -40°C ~ +80°C
• Operating Temperature : -30°C ~ +65°C
• Operating Humidity : 5%~95% (non-condensing)
• Dimensions : 82 (W) x 268 (H) x 35 mm
• Weight : Net 370 g, Gross 1.16 kg
• LED Indicators : Yes
• Number of connected wireless terminals : Up to 8
• Installation Methods : Wall and Pole Mount
