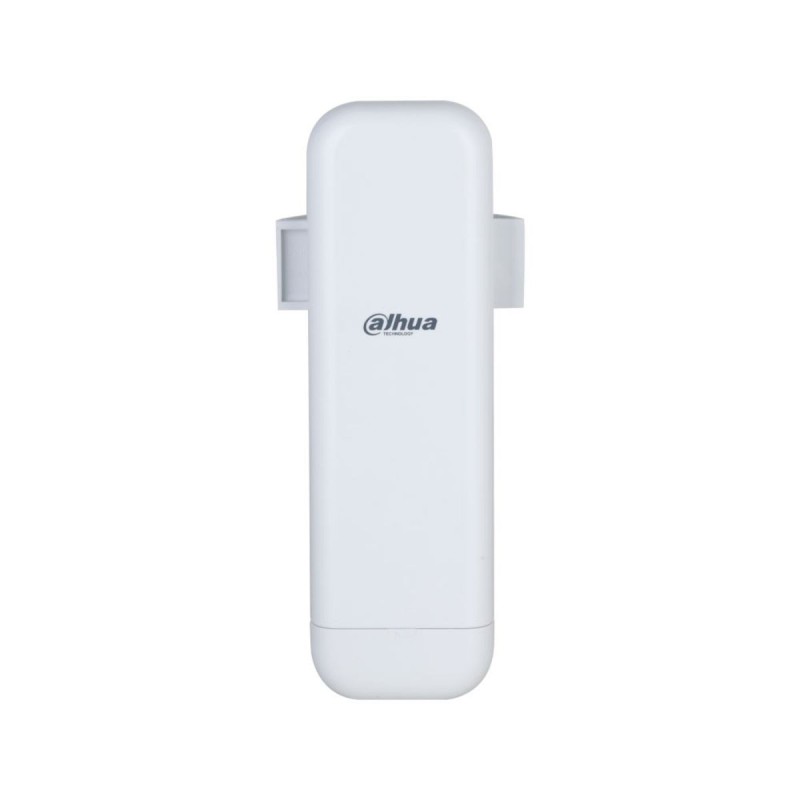

Dahua DH-WBC5-90AC-01P - 1km Wireless Bridge with 802.11ac 5.8G

The Dahua 5.8G Wireless Bridge is a robust solution for long-range wireless networks, offering a range of up to 1 km with a bandwidth of 867 Mbps. Ideal for outdoor installations, it is equipped with a ruggedized antenna and has IP65 protection.

Highlights of the 1 km Dahua Wireless Bridge

• 1 km extended range : Connect remote sites with effective range with an enhanced antenna.

• High bandwidth : Enjoy transmission speeds of up to 867 Mbps for demanding applications.

• Easy Installation & Rugged Protection : With an IP65 rating and multiple mounting options, it's designed to withstand outdoor conditions and install quickly.

The Dahua 5.8G wireless bridge is designed to provide reliable connectivity over long distances, with a maximum range of 1 km and an impressive bandwidth of up to 867 Mbps. Equipped with a ruggedized antenna, this device ensures a stable connection even in harsh environments. TDMA (Time Division Multiple Access) technology ensures efficient bandwidth management and optimal performance for multiple concurrent users.

With support for 802.11ac and the ability to connect up to 8 wireless terminals, this bridge is ideal for outdoor deployments where speed of installation and durability are critical. Its cloud-based management allows for easy remote configuration and monitoring, while its IP65 protection makes it resistant to dust and water jets, providing rugged durability. The bridge also supports multiple installation methods, such as wall or pole mounting, to accommodate different deployment scenarios.

Features of the Dahua Wireless Bridge

• Range : Up to 1 km
• Bandwidth : Up to 867 Mbps
• Wireless Standards : 802.11b/g/n (2.4 GHz), 802.11a/n/ac (5 GHz)
• Technology : TDMA
• Protection : IP65
• Antenna : Directional, with an angle of 90° horizontal and 20° vertical
• Ports :
  • LAN1 RJ45 10/100/1000 Mbps (PoE input)
  • LAN2 RJ45 10/100 Mbps (PoE output)
• Power supply : PoE+ (802.3af/at)
• Power consumption : <30 W
• Operating Temperature : -30°C ~ +65°C
• Storage temperature : -40°C ~ +80°C
• Operating Humidity : 5%~95% (non-condensing)
• Dimensions : 82 (W) x 268 (H) x 35 mm
• Net weight : 370 g
• Gross Weight : 1.16 kg
• Management : In the Cloud
