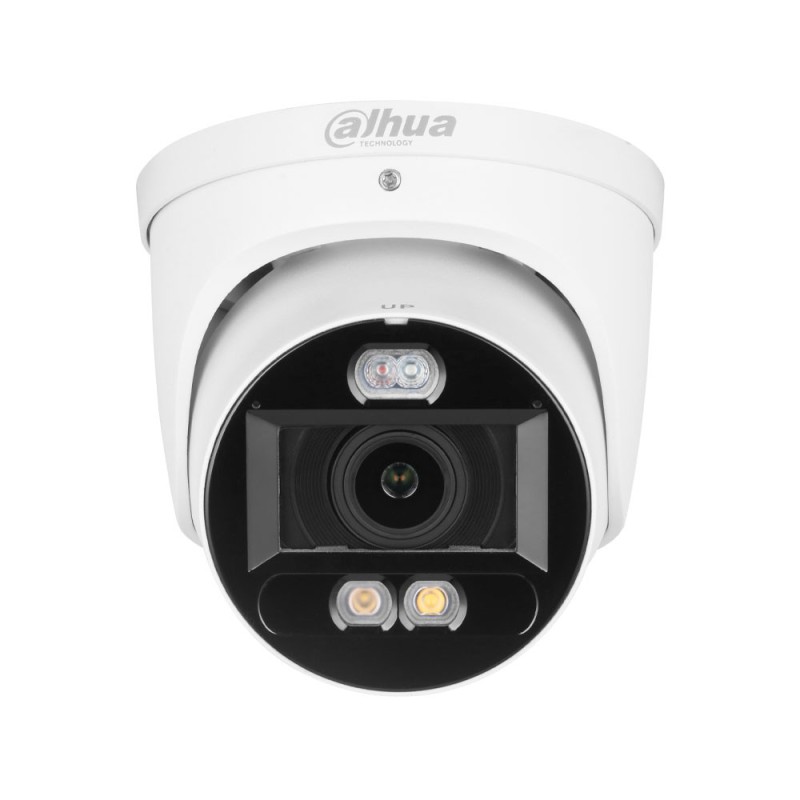

Dahua DH-IPC-HDW3449HP-ZAS-PV-27135-S5 - 4MP smart dual light IP dome camera

The Dahua WizSense 4MP IP dome camera offers high-quality surveillance with advanced features such as AI, H.265+ compression, and perimeter protection. It is equipped with a motorized lens, dual microphone, speaker, and active deterrence, all in a rugged IP67 housing.

Highlights of the Dahua 4MP Dual Light Camera

• Intelligent Surveillance : Featuring AI for human/vehicle classification and perimeter protection with line and intrusion detection.

• Superior image quality : 4MP resolution with 120dB WDR, 3D-NR, and 2.7~13.5mm motorized optics for clear and detailed images.

• Active Deterrence : Includes an audible and light alarm, with red and blue lights, as well as built-in dual microphone and speaker functions for enhanced security.

The Dahua WizSense 4MP IP Dome Camera is designed to provide advanced and intelligent surveillance, ideal for environments that require enhanced security. Equipped with a 4-megapixel 1/2.7" CMOS sensor, it offers an impressive resolution of 2688x1520, allowing you to capture clear and detailed images. The camera uses advanced compression technologies such as AI-H.265+ and Smart H.265+, effectively reducing bandwidth and storage requirements without compromising image quality.

With its Smart Dual Light feature, the CCTV camera combines two IR LEDs for night vision up to 50 meters and two warm light LEDs for a range of 40 meters, ensuring efficient 24-hour surveillance. The motorized optics from 2.7 to 13.5mm allow for unparalleled flexibility in adjusting the viewing angle, while the 120dB WDR and 3D-NR noise reduction ensure sharp images in a variety of lighting conditions.

The video camera also incorporates advanced perimeter protection features with cross-line and intrusion detection capabilities, both of which support human/vehicle classification. With its built-in microphones and speaker, the camera can emit sound and light alarms to deter intruders, enhancing the security of the monitored perimeter.

Features of Dahua Dome Camera

• Sensor : 4-megapixel 1/2.7" CMOS
• Supported resolutions : 4MP (2688x1520), 3.6MP (2560x1440), 3MP (2304x1296, 2048x1536), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576, 704x480), VGA (640x480), CIF (352x288, 352x240)
• Video compression : AI H.265, Smart H.265+, Smart H.264+, H.265, AI H.264, H.264, MJPEG
• Video stream :
  • Stream 1: 4MP (1~25/30 fps)
  • Stream 2: D1 (1~25/30 fps)
  • Stream 3: 1080P (1~30 fps)
• Day/Night Mode : ICR (Removable Mechanical Filter)
• Lighting :
  • 2 IR LEDs (50 meters)
  • 2 warm light LEDs (40 meters)
• Sensitivity : 0.003 lux F1.0 (color), 0.0003 lux F1.0 (B/W), 0 lux IR On
• Optics : Motorized 2.7~13.5mm
• Viewing Angle : 103°~33°(H), 54°~18°(V), 124°~38°(D)
• Picture Modes : BLC, HLC, WDR 120dB, SSA, 3D-NR, EIS, Mirror, Defog
• White Balance : 6 modes
• Gain Control : Automatic and Manual
• Detection and analysis :
  • 4-zone video sensor
  • 4 regions of interest (ROI)
  • 4-zone privacy mask
  • Perimeter protection with cross-line and intrusion detection
• Audio :
  • Built-in dual microphones
  • Built-in speaker
  • 1 RCA audio input
  • 1 RCA audio output
• Alarm :
  • 1 alarm input
  • 1 alarm output
  • Sound and light alarm (red and blue lights)
• Storage : MicroSD card slot up to 512GB
• Network Interface : RJ45 (10/100 Base-T)
• Network protocols : IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, SNMP, P2P
• Compatibility : ONVIF (Profile S/T/G), CGI, SDK, API
• Concurrent users : Up to 20

Remote viewing: IE browsers, Chrome, Firefox Management software : Smart PSS Lite, DSS, DMSS Mobile compatibility : iOS, Android Power supply : 12V DC / PoE (802.3af) Power consumption : 8.5W (12V) / 10.6W (PoE) Environment :

• Storage temperature: -40°C ~ +60°C
• Operating temperature: -30°C ~ +60°C
• Relative humidity: ≤95%

Protection Grade : IP67 Material : Metal housing Dimensions : Ø122 (W) x 127.6 (H) mm Weight :

• Net weight: 885 g
• Gross Weight: 1.06 kg

3AXIS : 0°~360°(PAN), 0°~78°(TILT), 0°~360°(Rotation)
