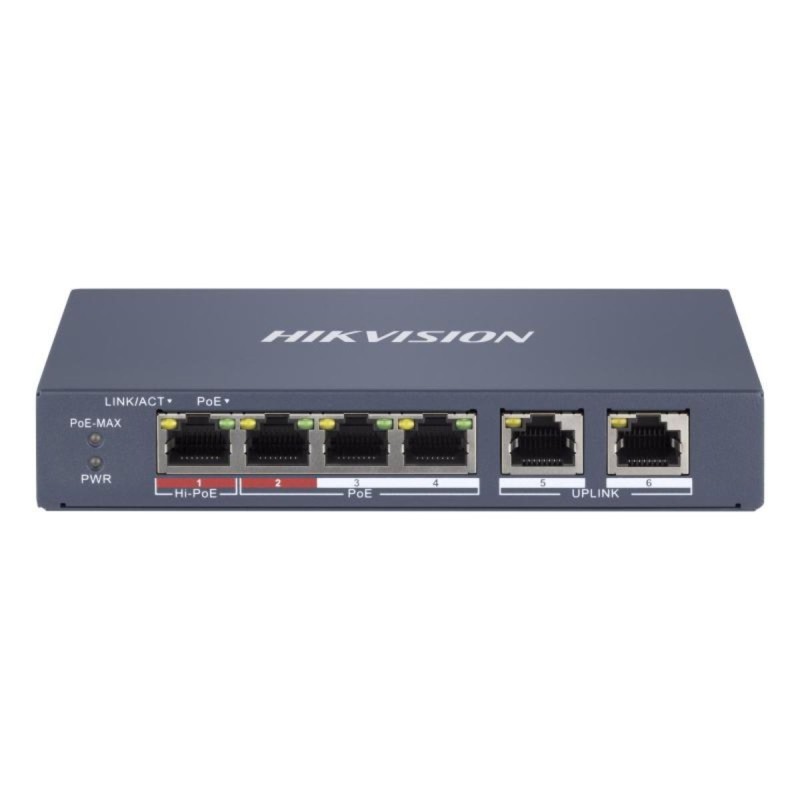

Hikvision DS-3E1106HP-EI - 4-Port POE Switch

The 4-port 10/100Mbps PoE switch with IP40 protection and transmission capacity up to 300m, provides efficient power for various network devices with 6KV surge protection.

Highlights of the POE switch box

• Hi-PoE Port : An additional Hi-PoE port for increased power requirements, with a maximum power of 30W per port and 60W in total.

• Long-range transmission : Supports transmission distances up to 300m, ideal for extended deployments.

• Rugged Protection : Provides 6 KV surge protection and an IP40 rating for increased durability in various environments.

The 4-port 10/100Mbps PoE switch is designed to provide reliable and efficient network power for your PoE devices. Featuring 2 x 10/100Mbps RJ45 ports and a Hi-PoE port, this switch provides a maximum power of 30W per PoE port with a total of 60W, ensuring sufficient power for various equipment. With an IP40 rating, it is protected against dust particles, making it suitable for indoor environments.

The switch supports long-range transmission up to 300m, allowing for flexible and extensive installations. Its 6 KV surge protection provides increased safety for your network equipment against voltage spikes. Operating with a 48 VDC power supply at 1.35 A, and measuring 14.5 cm x 2.5 cm x 6.8 cm for a weight of 0.245 kg, it combines compactness and performance to meet your networking needs.

Features of Hikvision 4-Port PoE Switch:

• Ports :
  • 2 x 10/100 Mbps RJ45 ports
  • 1 Hi-PoE port
  • 2 to 4 PoE ports
• PoE standards : IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
• Power : Max. 30W per PoE port, 60W total
• Protection :
  • IP40 protection class
  • 6 KV surge protection for PoE ports
• Transmission : Up to 300 m
• Power supply : 48 VDC, 1.35 A, max. 65W
• Operating temperature : 0°C to 40°C
• Dimensions : 14.5 cm x 2.5 cm x 6.8 cm
• Weight : 0.245 kg
