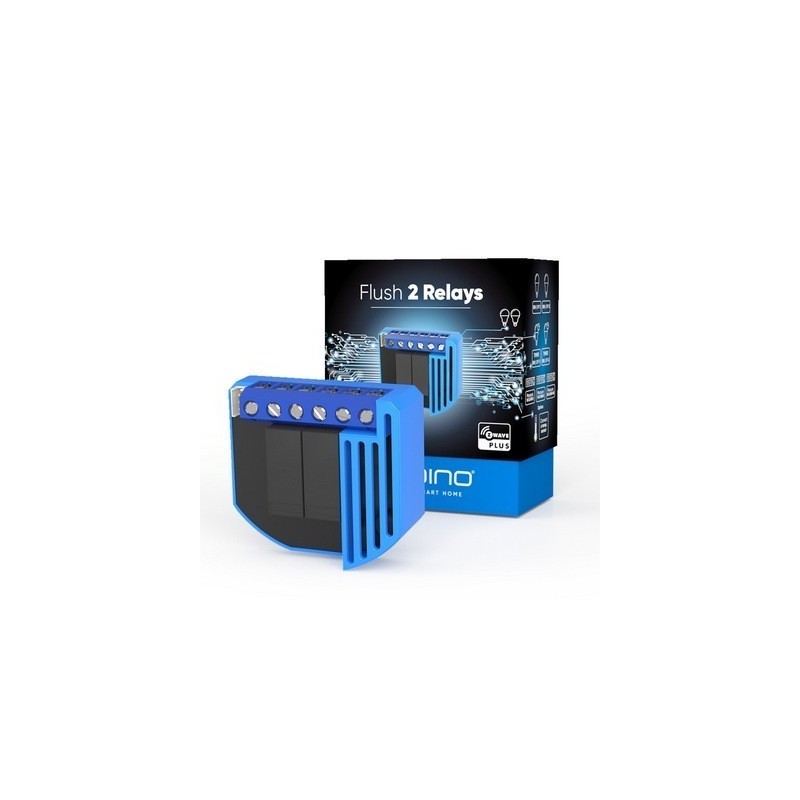

ZMNHBD1 Qubino micro-module switch 2 relay and conso-meter Z-wave+ ZMNHBD1
€48.99
VAT included
ZMNHBD1 Module Z-wave More Qubino switch two circuits.
Module with energy meter.
Garanties sécurité(à modifier dans le module "Réassurance")
Politique de livraison(à modifier dans le module "Réassurance")
Politique retours(à modifier dans le module "Réassurance")
Module home automation Z-wave More Qubino ZMNHBD1 to control two circuits with a power of 920 Watts each.
The module Qubino Z-wave More ZMNHBD1 allows control of two circuits ON/OFF mode.
This module Qubino allows the measurement of instantaneous power in watts and total power consumption in Kilo Watts per hour.
Features:
-
Order two lights/appliances remotely
-
Installs behind existing switch
-
Function ON/OFF
-
Integrates the chip Z-wave 500 series (Z-wave+)
-
Communication 250% faster compared to devices Z-wave standard
-
The smallest module 2 outputs in the world
-
Case design specially designed for ease of installation (ease of mounting of the cables), and tested by electricians professionals
-
Very low power consumption with less than 0.4 W
-
Operating temperature -10 to 40°C
-
Connector for temperature sensor analog
-
Measurement of power consumption
-
1 binary input allows you to connect an additional device such as a sensor, buttons, bistable or push, etc
-
Power supply : 110 - 230 VAC ±10% 50/60Hz, 24-30VDC
-
Power consumption : 0.4 W
-
Rated current of AC output (resistive load) : 2 X 4A / 230VAC
-
Rated current of DC output (resistive load) : 2 X 4A / 30VDC
-
Power of the circuit on the AC output (resistive load) : 2 X 920W (230VAC)
-
Power circuit DC output (resistive load) : 2 X 96W (24VDC)
-
Accuracy of the measurement of energy : P=0-200W, +/-2W, P>200W, +/-3%
-
Frequency of radio emission : 868.42 MHz, Z-wave
-
Range : up to 30 m indoors (depending on surrounding materials)
-
Measuring range temperature sensor digital (sensor sold separately) : -50 ~ 125°C
-
Operating temperature : -10 ~ 40°C
-
Space required for installation : Ø ≥ 60mm
-
Dimensions (W x H x d) : 41,8 x 36,8 x 16,9 mm
-
Weight : 25g
-
Certifications : CE, RoHs
Compatibility:
-
Compatible eedomus Yes
-
Compatible With Vera 3/Lite Yes
-
Compatible with Fibaro HC Lite Partially
-
Compatible with Fibaro HC2 Partially
-
Compatible with ZIPABOX Partially
-
Compatible Controller Lite Yes
-
Compatible Controller Pro Yes
-
Tax Code 85364900
ZMNHBD1
Data sheet
- Protocol
- Z-WAVE
- Functions
- Actuator
- Type
- Wireless
Specific References
- EAN13
- 3830062070119
