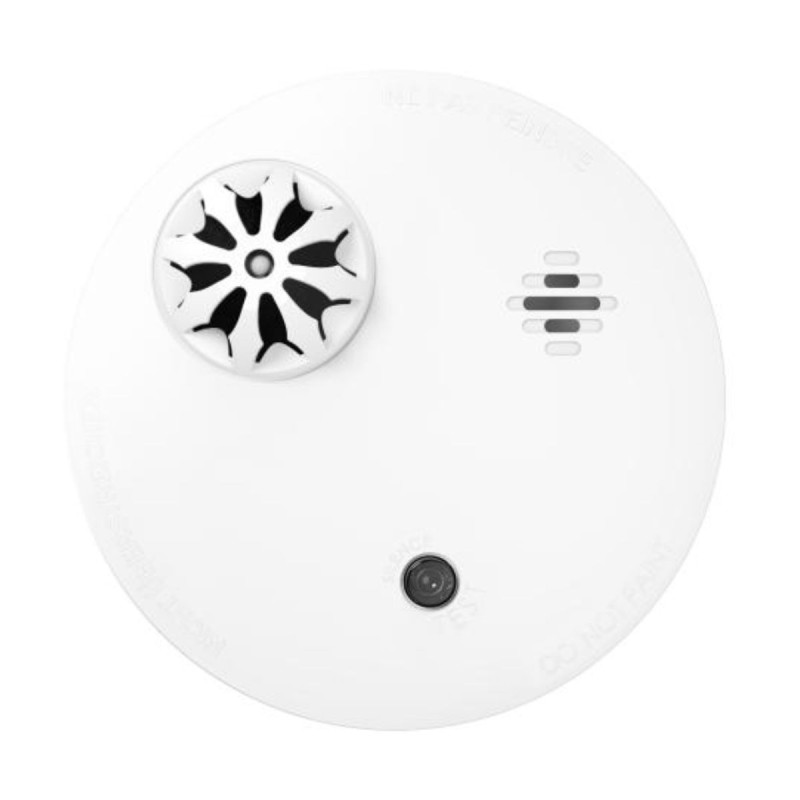

Hikvision DS-PDHT-E-WE - Ax Pro Heat Detector

The Hikvision DS-PDHT-E-WE Ax Pro Heat Detector is an advanced heat detection device designed to alert when the ambient temperature exceeds 57°C. Featuring a long-lasting battery and advanced safety features, it ensures reliable and continuous monitoring.

Highlights of the Heat Detector

• Long battery life: Up to 10 years of operation for the standalone sensor and 5 years for wireless RF connectivity.

• Security and reliability: Secure transmission with AES-128 encryption and transmission range of up to 1.6 km in free space.

• Advanced Design: LED indicators, powerful buzzer of ≥ 85dB at 3 meters, and multiple enlistment methods for easy installation.

The Hikvision DS-PDHT-E-WE heat detector from the Ax Pro range is an essential tool for the safety of indoor environments. Designed to detect critical temperature increases, it emits an audible alert when it exceeds 57°C, ensuring a quick response to emergency situations. The sensor's battery offers exceptional longevity, with up to 10 years of operation in standalone mode and 5 years with wireless RF connectivity. With secure transmission using AES-128 encryption and an impressive 1.6 km clear range, this detector ensures constant and reliable monitoring.

The DS-PDHT-E-WE is equipped with many features, such as signal and device status indicators, a sensor integrity check system, and a loud buzzer emitting a sound of ≥ 85dB at 3 meters for effective audible alerts. Its compact and elegant design allows for discreet installation on the ceiling, making this detector ideal for various indoor applications.

Features of Hikvision Heat Detector

• Detection Method: Temperature Sensor
• Ambient Temperature Indicator: Supported
• Signal Strength Indicator: Supported
• Self-monitoring of Sensor Status: Supported
• Audible Alarm Interconnect: Supported
• Interface: Power switch, enrollment on power on, red LED indicator (alarm)
• Buzzer: ≥ 85dB @ 3 meters
• Transmission:
  • Method: Two-way wireless RF
  • Frequency: 868MHz
  • Security: AES-128 encryption
  • Range: 1.6 km in free space
  • Enrollment Methods: Power On, Remote ID, QR Code
• Electrical Features:
  • Battery Life: 10 years for standalone sensor, 5 years for wireless RF connectivity
  • Battery Type: Energizer L91 x 2 non-replaceable for sensor, CR123A x 1 replaceable for wireless RF
  • Typical Voltage: 3V
• General:
  • Operating Temperature: -10°C to 50°C (14°F to 122°F)
  • Storage Temperature: -20°C to 60°C (-4°F to 140°F)
  • Operating Humidity: 5% to 90%
  • Dimensions (WxHxD): φ120 × 52.5 mm
  • Weight: 179.5g
  • Mounting Method: Ceiling
  • Usage Scenario: Indoor
