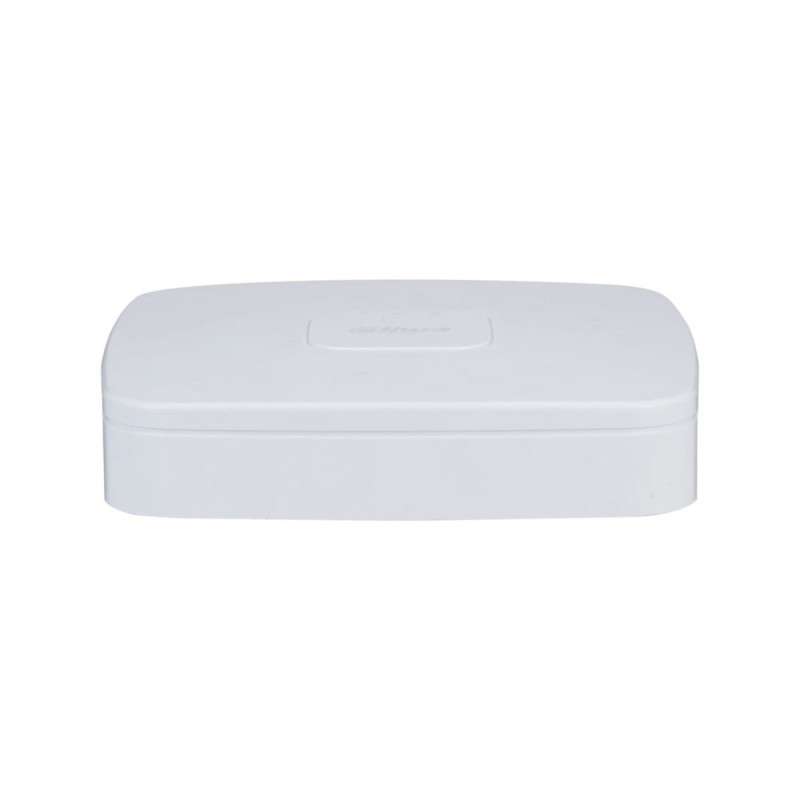

Dahua DHI-NVR2104-4KS3 - 4-Channel IP Video Recorder NVR

The Dahua 4-channel IP NVR is an efficient surveillance solution with smart camera support, simultaneous 4K HDMI and VGA 1080P outputs, and intelligent video management.

Highlights of Dahua Video Recorder:

• Advanced Video Compression : Supports Smart H.265+ and Smart H.264+ for optimized bandwidth management and superior image quality.

• High-resolution decoding : Up to 12MP decoding capability with smooth performance, even with multiple channels active.

• PoE support : Equipped with 4 PoE ports for simplified installation and direct power management of IP cameras.

The Dahua 4-channel IP NVR is designed to offer secure and flexible surveillance with advanced support for smart cameras. It incorporates the latest Smart H.265+ and Smart H.264+ video compression technologies to maximize bandwidth efficiency while maintaining high image quality. Its 4K HDMI and VGA 1080P video outputs allow simultaneous viewing of high-definition videos on different displays.

With a bandwidth of 80 Mbps for input and recording, as well as 60 Mbps for output, this NVR ensures smooth data transmission, even in high resolution. The decoding capability, up to 12MP with AI off and up to 8MP with AI on, ensures exceptional playback performance. It also offers a variety of recording options, including general, motion detection, alarm and more.

Featuring 4 built-in PoE ports, it simplifies cabling by delivering power and data directly to IP cameras. The NVR supports various network protocols and is compatible with modern browsers as well as Android and iOS devices. In terms of security and accessibility, it allows remote access via a joystick keypad and can send alerts via email or FTP in case of alarm detection.

Dahua 4-Channel NVR Features:

• Model : 4-Channel Dahua IP NVR
• Video compression : Smart H.265+, Smart H.264+, H.265, H.264, MJPEG
• Audio compression : G.711a, G.711u, PCM, G726
• Bandwidth : 80 Mbps input, 80 Mbps recording, 60 Mbps output
• Recording Resolution : 12MP, 8MP, 5MP, 4MP, 3MP, 1080P, 720P, D1
• Decode : Up to 12MP with AI off, up to 8MP with AI on
• Video outputs : Simultaneous 4K HDMI, VGA 1080P
• Ports : 1 RJ45 Fast Ethernet, 2 USB 2.0, 4 PoE+ ports (10/100Mbps)
• Capacity : 1 SATA hard drive up to 20 TB (not included)
• Power supply : 12V DC, 1.5A
• Power Consumption : ≤10W (excluding disks), 36W maximum for PoE
• Operating Temperature : -10°C ~ +55°C
• Storage Temperature : -20°C ~ +60°C
• Relative Humidity : 10%~93% (non-condensing)
• Dimensions : 204.6 (W) x 45.6 (H) x 206.4 mm
• Net Weight : 450 g
• Gross Weight : 1.05 kg
• Installation : Tabletop
