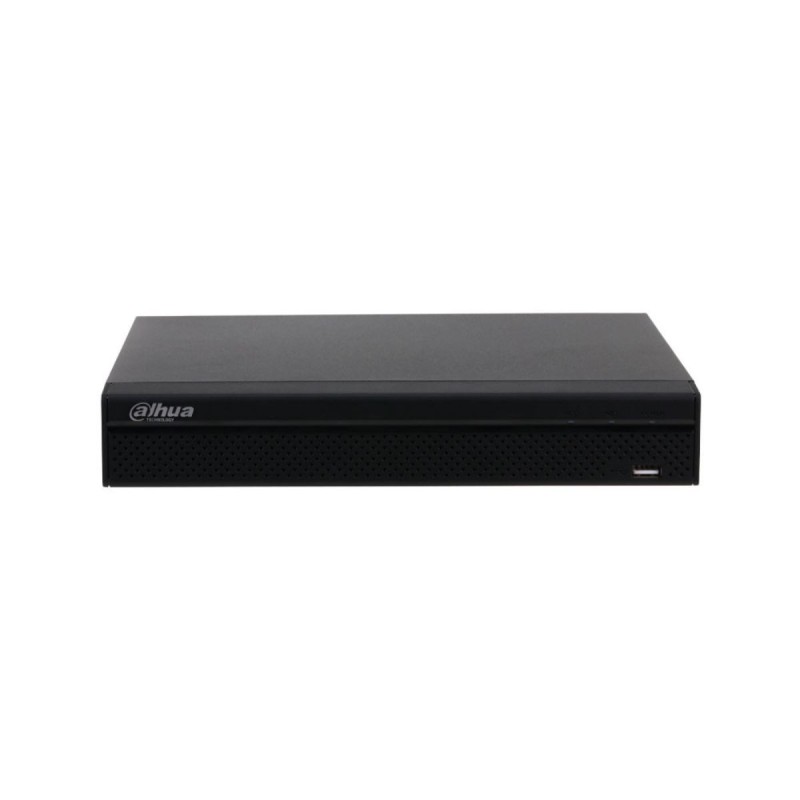

Dahua DHI-NVR4108HS-4KS3 - 8-Channel IP Video Surveillance Recorder NVR

The 8-channel Dahua IP NVR offers advanced video surveillance management with high-resolution recording capabilities, simultaneous 4K HDMI and VGA outputs, and smart camera compatibility.

Highlights of the Dahua 8-channel NVR

• High-Performance decoding : Supports up to 12MP per channel with enhanced AI decoding capability, delivering exceptional image quality even with multiple channels enabled.

• Simultaneous Outputs : Allows simultaneous display of high-definition video via 4K HDMI and VGA 1080P.

• Artificial Intelligence : Integrates advanced features such as face detection and recognition, as well as perimeter protection, for intelligent and efficient surveillance.

The Dahua 8-Channel IP NVR is a rugged and versatile video surveillance recorder designed to provide efficient management and storage of video streams. With a recording capability of up to 12MP per channel, it enables high-resolution image capture with great clarity. Bandwidth is optimized to 80 Mbps input and recording, and 60 Mbps output, ensuring smooth data transmission even under high load.

The device is equipped with 4K HDMI and VGA 1080P outputs that work simultaneously, allowing for maximum flexibility for display and monitoring. It supports a SATA hard drive up to 20TB (not included), providing ample storage capacity for long-term recordings. The integration of artificial intelligence via smart cameras enables advanced features such as perimeter protection, face detection, and face recognition, increasing the accuracy and efficiency of surveillance.

The NVR also offers full network connectivity with an RJ45 Fast Ethernet port, two USB 2.0 ports for external devices, and remote management possible via a connected keyboard or joystick. Its compatibility with ONVIF protocols and DDNS services ensures easy integration with other video surveillance equipment and secure remote access via the Internet.

Features of 8-channel NVR

• Video Compression Format : Smart H.265+, H.265, Smart H.264+, H.264
• Bandwidth : 80 Mbps input, 80 Mbps recording, 60 Mbps output
• Recording resolutions : up to 12MP
• Video outputs : Simultaneous HDMI (4K) and VGA (1080P)
• AI decoding : 1 channel at 12MP, 1 channel at 8MP, 2 channels at 5MP, 3 channels at 4MP, 7 channels at 1080P
• Recording Modes : General, Motion Detection, Intelligence, Alarm
• Alarm Inputs/Outputs : 4 Inputs, 2 Outputs
• Storage Capacity : 1 SATA hard drive up to 20 TB (sold separately)
• Ports : 1 RJ45 Fast Ethernet, 2 USB 2.0
• Power supply : 12V DC, 2A
• Power consumption : ≤10W (excluding disks)
• Operating Temperature : -10°C ~ +55°C
• Storage Temperature : -20°C ~ +60°C
• Dimensions : 260 (W) x 47.6 (H) x 232.5 mm
• Weight : 810 g net / 1.38 kg gross
• Installation : Rack or Desktop
