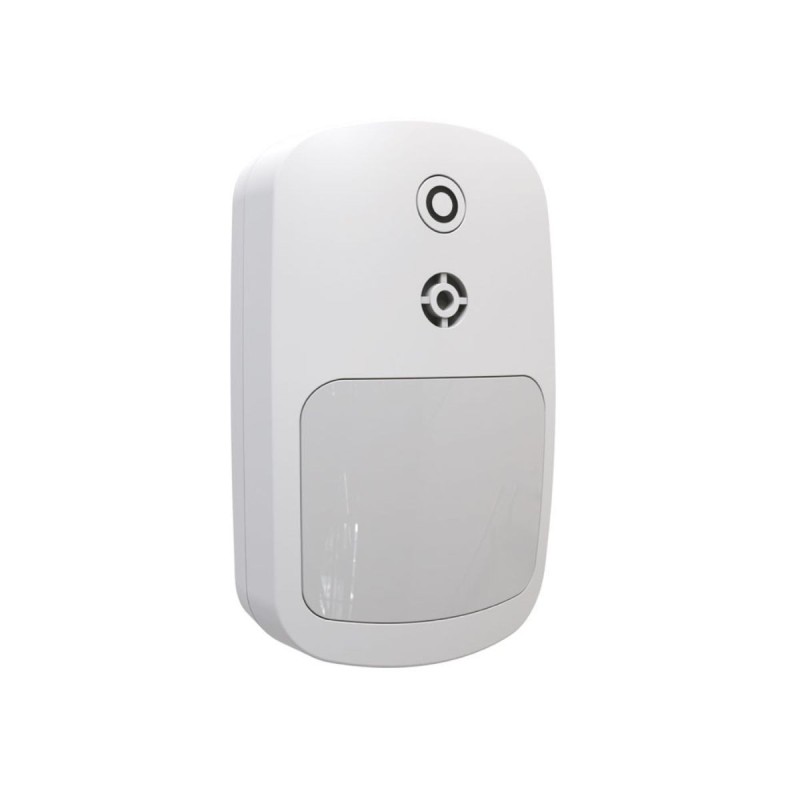

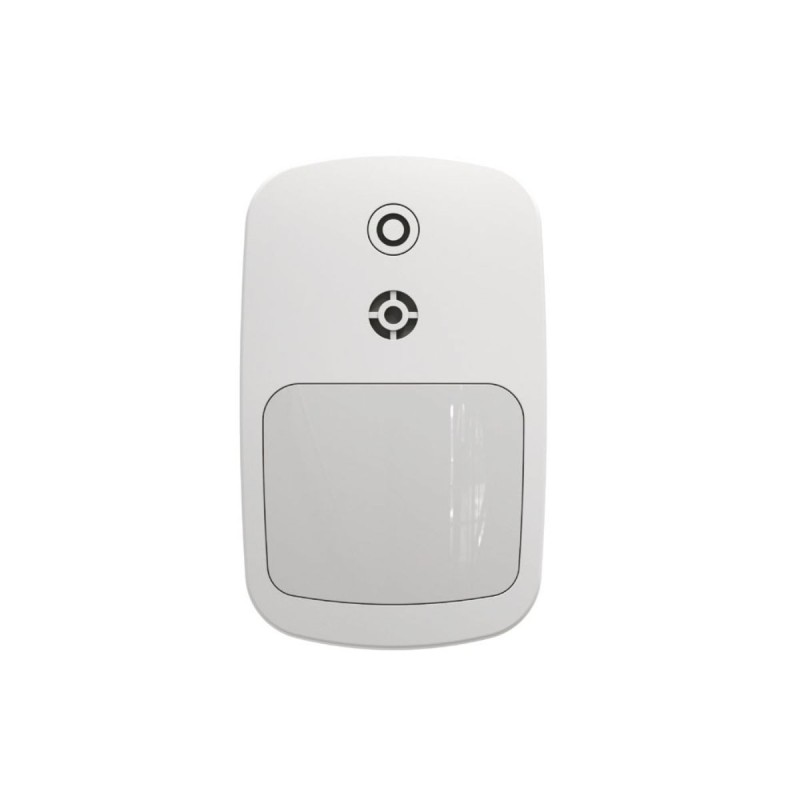

Vesta IRAGS-35SL-F1-2W-868 - PIR and Glass Breakage Detector

The IRAGS-35 PIR and Glass Break Detector combines motion and acoustic detection for enhanced security, with a range of 12 meters for movement and 8 meters for glass breakage, while providing immunity to animals up to 25 kg.

Highlights of the Vesta PIR detector

• Dual Technology Detection : Combines a PIR sensor for motion and a microphone for glass breakage.

• Animal Immunity : Remote sensitivity and immunity adjustment for animals up to 25 kg.

• High performance : 12-meter PIR range, microphone range up to 8 meters, with advanced technology to reduce blind spots.

The IRAGS-35 PIR and Glass Break Detector is an advanced multi-functional device designed to provide complete safety. It incorporates a PIR sensor to detect movement in a room with a range of up to 12 meters and a 90° coverage angle. In addition, it has microphone technology that detects glass breakage with a range of 8 meters, thanks to adjustable sensitivity to adapt to different environments. This detector has a special lens that reduces blind spots, ensuring optimal coverage.

Its system allows remote adjustment of sensitivity and immunity to pets, supporting up to 25 kg, making it suitable for environments where pets are present. It operates on an 868 MHz radio frequency with periodic control signals to ensure the integrity of the system. Its operating temperature range is from -10°C to +45°C, and it is powered by 3 CR123 lithium batteries offering a 5-year battery life.

The IRAGS-35 is certified EN50131 Grade 2, which ensures compliance with high safety standards.

Features of the Vesta Glass Break Detector

• Type : PIR and Glass Break Detector
• PIR range : Up to 12 meters, 90° angle
• Microphone range : Up to 8 meters, adjustable sensitivity (8/5/3/1.5 meters)
• Animal immunity : Up to 25 kg
• Technology : Combined PIR and acoustic detection
• Radio frequency : 868 MHz
• Control Signal : Periodic
• Operating temperature : -10°C to +45°C
• Humidity : Up to 85% (non-condensing)
• Power supply : 3 CR123 lithium batteries
• Battery life : 5 years
• Dimensions : 69 x 112 x 37 mm
• Certifications : EN50131 Grade 2
