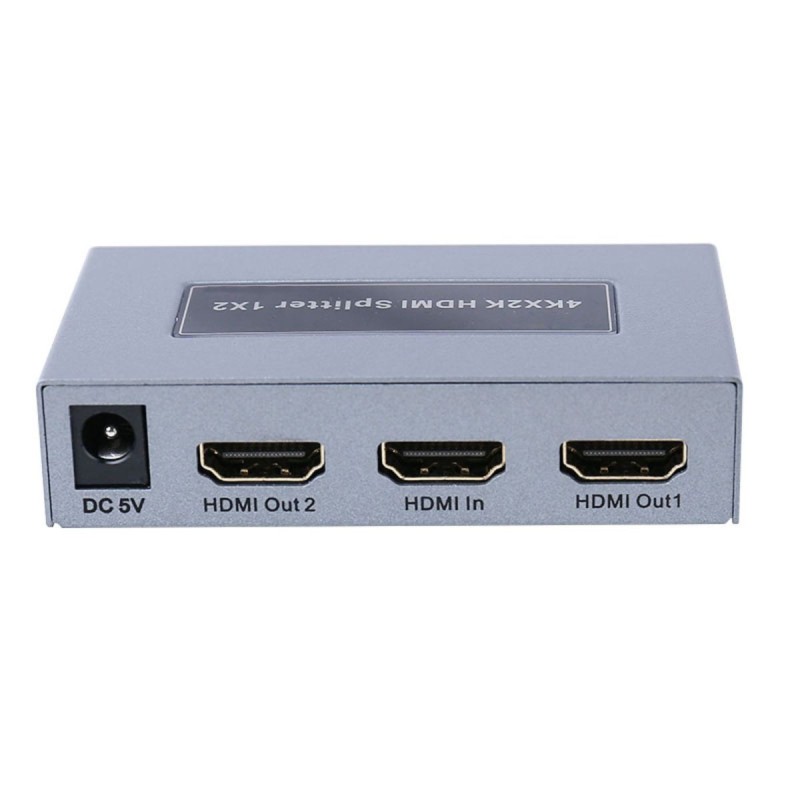

CCTVDirect SAM-4517 - HDMI Splitter with 2 Outputs

The HDMI splitter with 2 HDMI outputs is a compact and high-performance device, capable of streaming resolutions of up to 4K/2K at 30Hz on two screens simultaneously. It ensures a stable signal with advanced audio compatibility, ideal for home theater setups or multi-screen setups.

Highlights of the 2-Out HDMI Splitter

• 4K/2K resolution : Stream high-definition content in 4K/2K at 30Hz to two displays.

• Wide Audio Compatibility : Supports HD audio formats such as DTS-HD and Dolby-TrueHD for an immersive experience.

• Simple Installation : LED indicators and power adapter included for quick and easy set-up.

The 2-Out HDMI Splitter is designed for users who want to stream a single HDMI signal to two displays simultaneously without losing quality. Capable of supporting resolutions up to 4K/2K at 30Hz, it ensures crisp and clear video reproduction, ideal for home theaters, professional presentations, or multi-monitor setups. Its HDMI bandwidth of 340 MHz/3.4 Gbps ensures stable signal transmission, while its compatibility with advanced audio formats like DTS-HD and Dolby-TrueHD allows for a rich and immersive sound experience.

In addition, the HDMI splitter supports EDID auto-identification, optimizing the configuration of connected displays for maximum performance. The device is designed to operate in a variety of conditions, with a temperature range of -5°C to +70°C and a humidity of 5% to 90%. Compact and easy to install, it comes with a power adapter and LED indicators for visual monitoring of connection status.

Features of the 2-Out HDMI Splitter

• Number of outputs : 2 HDMI outputs
• Supported resolutions : 4K/2K at 30Hz, 1080p compatible
• HDMI Signal : 340 MHz / 3.4 Gbps bandwidth
• HDMI version : HDMI 1.4, HDCP 1.4
• Audio formats : DTS-HD, Dolby-TrueHD, LPCM7.1, DTS, Dolby-AC3, DSD, HD (HBR)
• Additional Features : EDID Automatic Identification
• Indicator : LED
• Operating Conditions : Temperature from -5°C to +70°C, Humidity 5% to 90%
• Power Supply : 5V DC/1A Input (AC Adapter Included)
• Dimensions : 94 mm (W) x 33 mm (H)
