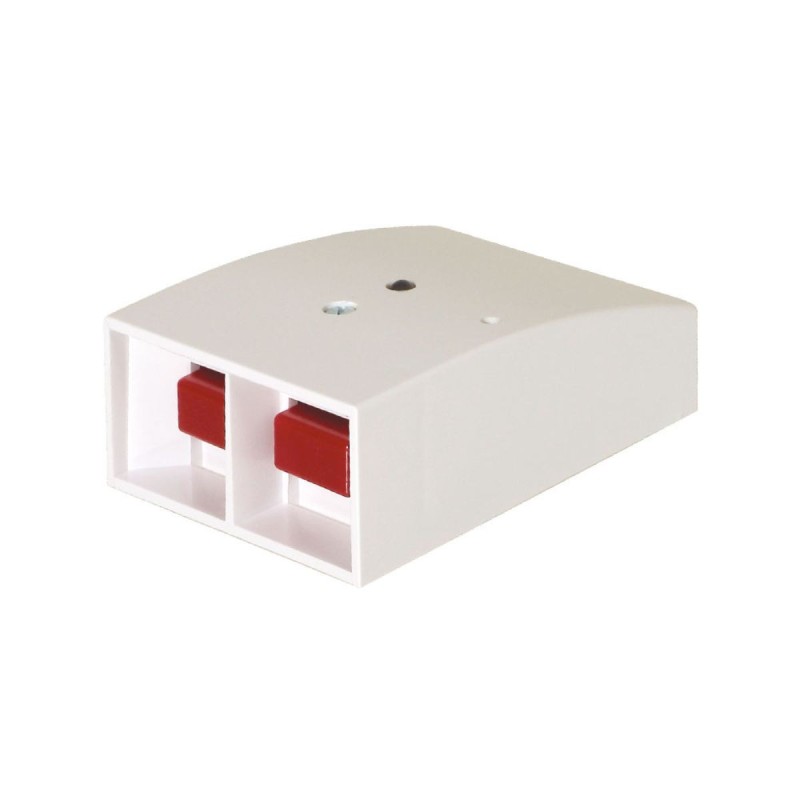

Alarmtech HB 105-M - Mechanical Push Button for Alarm

Two-button alarm push button configurable for double-press or separate activation, ideal for alarm systems, EN Grade 3 certified.

Highlights of the Push Button for Alarm:

• Dual NC/NO function for more flexibility in activating the alarm.
• EN Grade 3 certified for optimal safety in sensitive environments.
• Built-in tamper control with LED control for protection against unwanted openings.

The dual-function alarm push button is a robust and versatile device, designed for use in various alarm systems. It has two separate buttons, configurable for double-press or separate-press activation, providing flexibility of use as needed for safety. Certified EN CLC/TS 50131-11:2012 Grade 3, it is ideal for environments where safety is paramount. Its white ABS plastic housing, combined with its weatherproof capability (IP31) and integrated tamper protection, guarantees reliable protection against unauthorized manipulation. This device is suitable for applications that require precise control of alarm activation, while providing protection against outside interference.

Pushbutton Features:

• Two-button push button (NC/NO)
• Double-press or separate press configuration
• 2 NC/NO alarm outputs
• Maximum capacity limit: 30V DC / 100 mA
• Anti-tampering: 12V DC / 50 mA
• LED control and self-protection
• EN CLC/TS 50131-11:2012 Grade 3 certified
• ABS plastic housing, white
• Temperature range: -10°C to +55°C
• Protection class: IP31
• Dimensions: 80 x 65 x 30 mm
