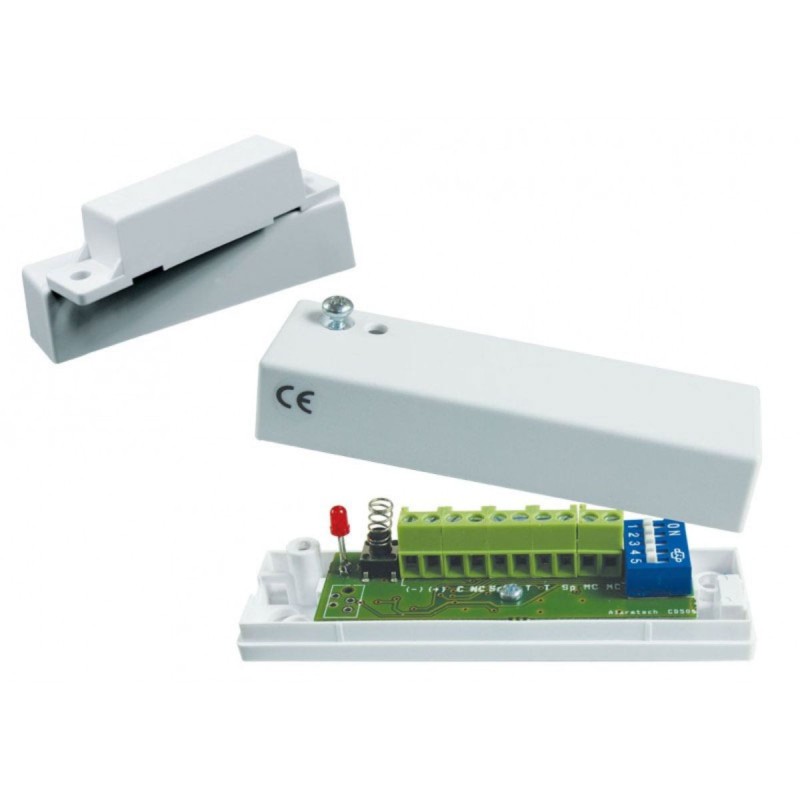

Alarmtech DEM-779 - Programmable Shock Detector with Magnetic Contact

The programmable shock detector with magnetic contact provides double protection for doors and windows, detecting vibrations and intrusion attempts with high sensitivity and high immunity to surrounding noise.

Highlights of the shock detector:

• Accurate Detection : Digital Signal Processor (DSP) with dual algorithm and 4 sensitivity levels for reliable detection.

• Enhanced Protection : Capable of detecting high-amplitude vibrations and explosions, with an adjustable controller channel to trigger the alarm.

• Versatile installation : Suitable for a variety of environments, with the option of installation in a DEM-680 casing for extreme conditions.

The programmable shock detector with magnetic contact is designed to provide advanced intrusion protection. It is ideal for use on doors and windows, providing double protection with shock detection and magnetic contact. Equipped with a Digital Signal Processor (DSP) and a second detection algorithm, this detector is able to discern between different amplitudes of vibrations, ranging from short shaking to powerful explosions.

With 4 pre-set sensitivity levels, it allows for easy customization to fit the different levels of security required. The detector also includes a vibration control channel, which activates the alarm when the selected vibration threshold is exceeded, and an explosion channel that overrides vibration settings for an immediate response in the event of an explosion. Its ability to work on various materials such as window frames, doors, and brick walls makes it extremely versatile.

Features of the shock detector with magnetic contact:

• Input voltage : 8~15V DC
• Power consumption : 8 mA (10 mA in alarm)
• Alarm output : NC (35V DC / 100 mA)
• Alarm Indication : LED
• Tamper Output : 35V DC / 50 mA
• Connection : Clema
• Casing : White ABS plastic
• Operating temperature : -10°C to +70°C
• Protection Grade : IP42
• Dimensions : 80 x 23 x 20 mm
