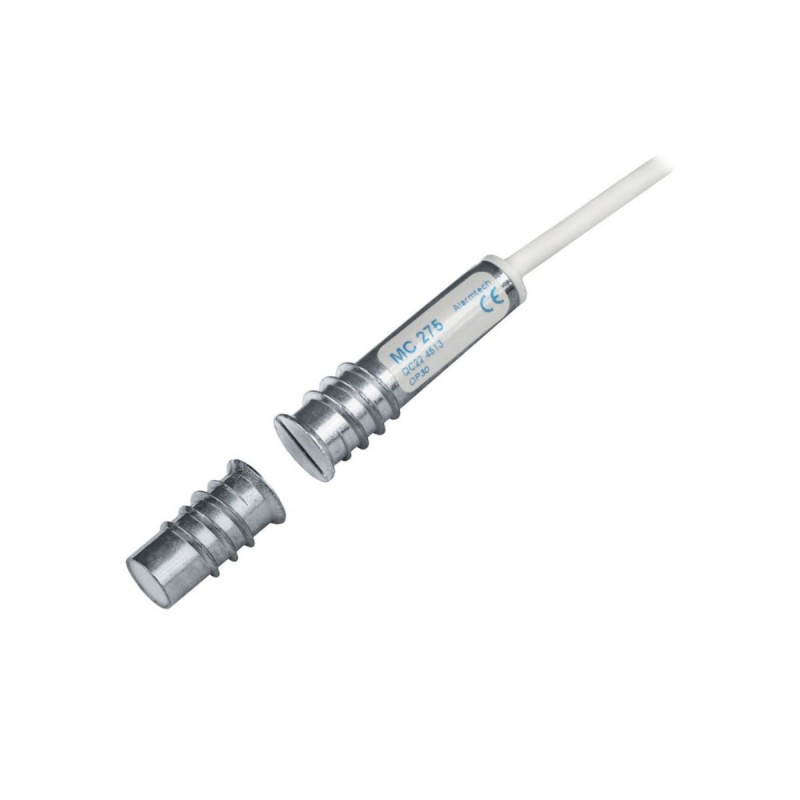

Alarmtech MC 275-10 - 10 m Recessed Magnetic Contact

The Alarmtech MC 275-10 is a recessed magnetic contact, ideal for securing doors and windows, with a 10-meter cable and an NC function for accurate detection on non-magnetic surfaces.

Highlights of the Alarmtech magnetic flush mount:

• Discreet installation : Flush mounting with rotating screw for perfect integration.

• Tough and durable : Made of metal, with IP67 protection and operation in extreme temperatures.

• 10 meter long cable : Easy to connect, even on complex installations.

The Alarmtech™ 275-10 is a recessed magnetic contact designed for discreet and effective protection of entry points such as doors and windows. Thanks to its 10-meter 4-conductor cable, it allows a simple and flexible connection, even on complex installations. The contact uses the NC function for accurate detection, making it ideal for non-magnetic materials.

Made of metal and EN50131-2-6 Level 3 certified, it is designed for high-security installations. The MC 275-10 is also very durable, with IP67 protection, capable of operating in extreme conditions, from -40°C to +70°C. This product is perfect for long-lasting and reliable installation in various environments.

Technical characteristics:

• Mounting Type : Recessed
• Cable : 10 meters, 4 wires
• Function : NC
• Material : Metal
• GAP on non-magnetic material : 15 mm
• Sabotage on non-magnetic material : 5 mm
• Operating temperature : -40°C to +70°C
• Protection Grade : IP67
• Maximum capacity : 48 V DC / 500 mA / 10 VA
• Dimensions : Contactor: 36 x 11 mm, Magnet: 22 x 11 mm
• Certificate : EN50131-2-6 Level 3
