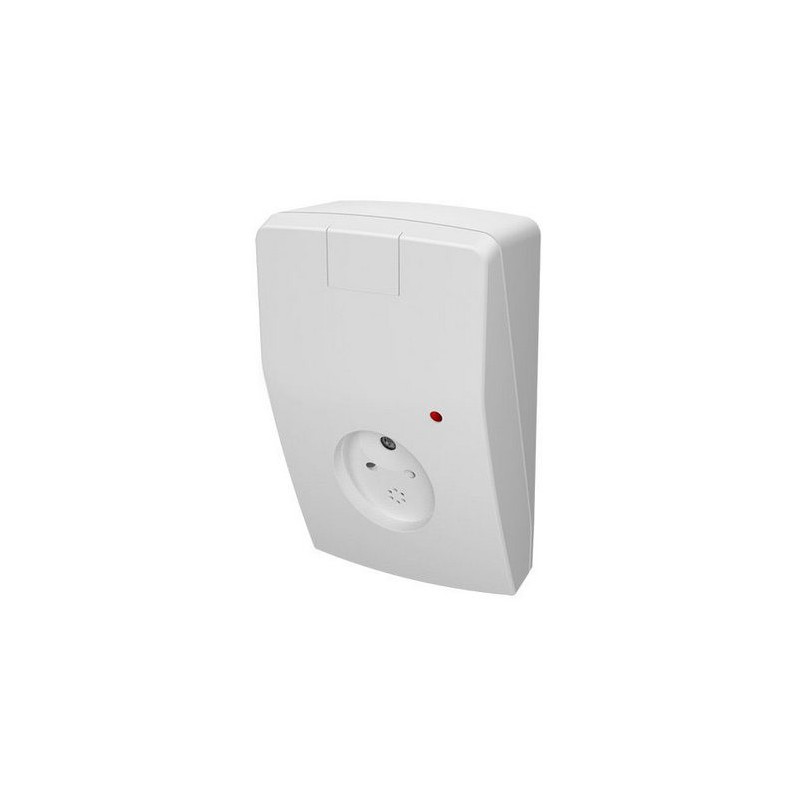

Alarmtech AD 800-AM - Acoustic Glass Breakage Detector with Anti-Marking

This innovative detector is designed to effectively secure areas equipped with windows or glazing by detecting any intrusion attempts. Equipped with the latest microprocessor technologies and advanced algorithms (RDC), it distinguishes between broken glass noise and interference. Its anti-masking function, with an independent relay output, enhances safety.

Key features:

• Advanced Technology: Detects standard, hardened, and laminated glass breakage accurately.
• Wide coverage: detects over a radius of 9 m at 165°, covering several windows.
• EN 50131 level 3 certified: a guarantee of quality and reliability.
• Flexible installation: adaptable to walls or ceilings, indoors, facing the areas to be protected.
• Robust design: white ABS plastic, with IP31 protection.

Technical specifications:

• Maximum range: 9 m radius, 165° angle.
• Glazing compatibility: up to 6 x 6 m and 4 mm thick (flat or laminated glass).
• Input voltage: 7~30V DC, consumption 12mA @12V.
• Outputs: alarm, error and anti-masking (NC, 50 mA max).
• Dimensions: 68 x 39 x 110 mm.
• Operating temperature: -5°C to +40°C.

Note: Avoid installation in a corner or near a vent to ensure optimal performance.
