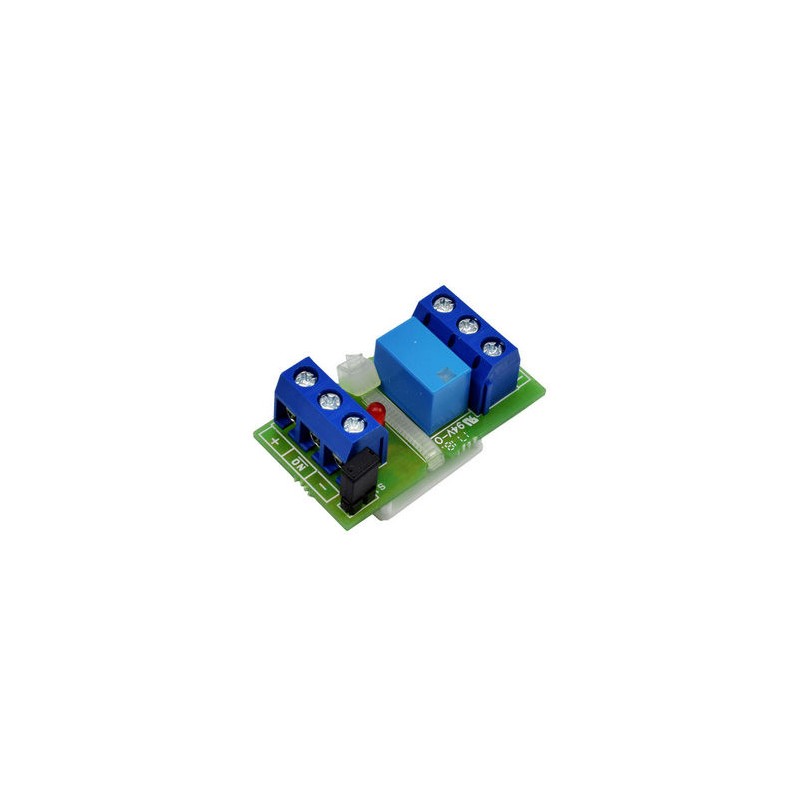

Alarmtech RC 2 - 9~30V Relay Board with SPDT Function
€15.99
VAT included
Alarmtech RC 2 - 9~30V Relay Board with SPDT Function
Compact SPDT relay board (NC/NA) with LED, adhesive attachment and 9 to 30V DC operation.
Garanties sécurité(à modifier dans le module "Réassurance")
Politique de livraison(à modifier dans le module "Réassurance")
Politique retours(à modifier dans le module "Réassurance")
Alarmtech RC 2 - 9~30V Relay Board with SPDT Function
This compact relay board is ideal for universal use thanks to its convenient design and advanced features. Perfect for systems that require low power consumption and quick installation, it can be easily integrated into many electronic projects.
Key features:
- Relay Type : SPDT (NC/NA) for maximum flexibility in configurations.
- Transistor control : requires only 1 mA to activate the relay.
- LED Indicator : Signals relay activation in real time.
- Secure connection : terminals with cable protection and spring connection.
- Input voltage : works with a power supply between 9 and 30V DC.
- Power consumption :
- 16 mA at 12V DC
- 20 mA at 28V DC
- Contact capacity : 30V DC / 1A / 28 VA.
- Operating temperature : suitable for extreme environments, from -40°C to +70°C.
- Convenient attachment : Built-in tape on the back for quick and stable installation.
- Compact dimensions : only 37 x 16 x 13 mm, ideal for tight spaces.
RC2
