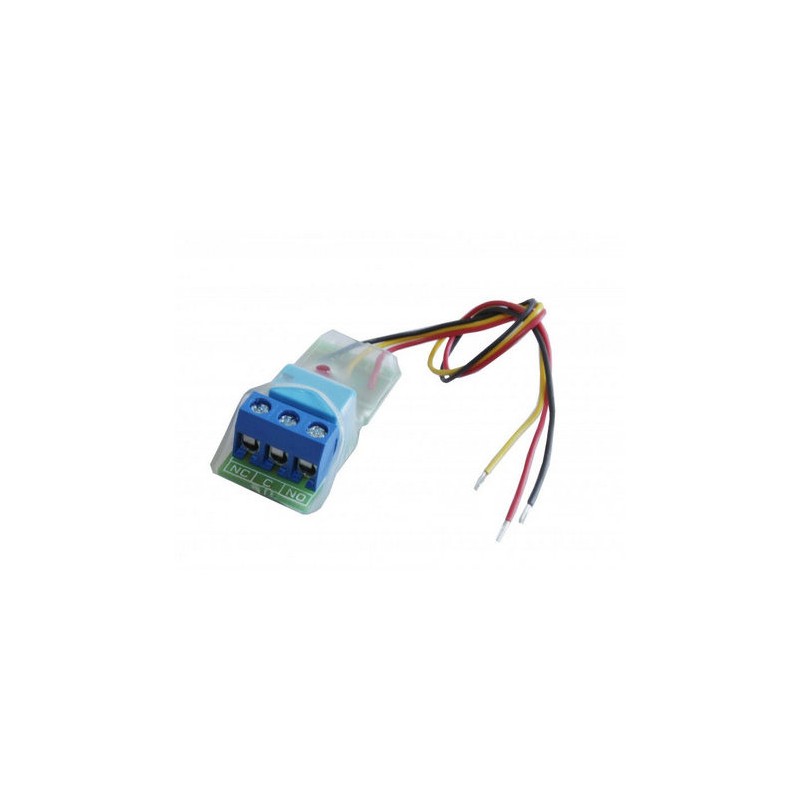

Alarmtech RC 1 - 9~30V Relay Board with SPDT Function (NC/NA)
€15.27
VAT included
Alarmtech RC 1 - 9~30V Relay Board with SPDT Function (NC/NA)
Compact universal relay board with SPDT (NC/NA), LED indicator, adhesive attachment and 9 to 30V DC operation.
Garanties sécurité(à modifier dans le module "Réassurance")
Politique de livraison(à modifier dans le module "Réassurance")
Politique retours(à modifier dans le module "Réassurance")
Alarmtech RC 1 - 9~30V Relay Board with SPDT Function (NC/NA)
This extremely compact universal relay board is ideal for various applications thanks to its convenient design and advanced features. It is ideal for systems that require low control current and simplified installation.
Key features:
- SPDT Relay (NC/NA): Supports both Normally Closed (NC) and Normally Open (NA) configurations.
- Transistor control : Requires a low current of 1 mA for activation.
- LED indicator : visualization of relay activation in real time.
- Easy attachment : Adhesive tape on the back for quick and convenient assembly.
- Secure connection : terminals with cable protection and spring connection.
- Input voltage : works with a 9 to 30V DC power supply.
- Power consumption :
- 16 mA at 12V DC
- 20 mA at 28V DC
- Contact Information : 30V DC / 1A / 28VA.
- Operating temperature : suitable for extreme conditions, from -40°C to +70°C.
- Ultra-compact dimensions : 37 x 16 x 13 mm.
RC1
