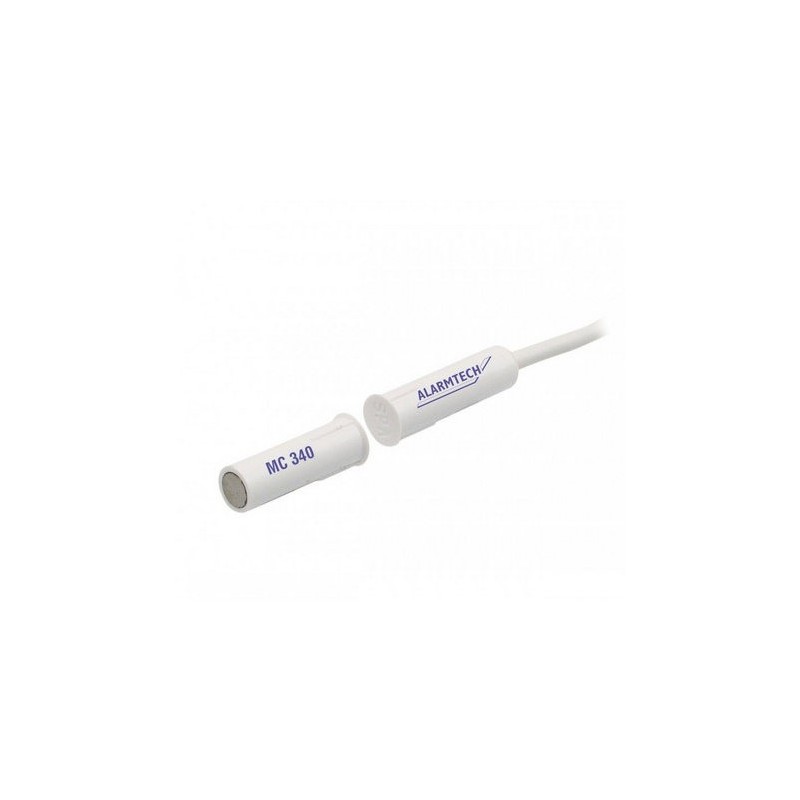

Alarmtech MC 340 - Recessed Magnetic Contact

The MC 340 recessed magnetic contact effectively protects doors and windows with a compact design, IP67 protection, and resistance to extreme conditions.

Strengths:

• Ruggedness : Designed to withstand extreme temperatures (-40°C to +70°C) and IP67 waterproof.

• Tamper Protection : Prevents unauthorized manipulation.

• Flush installation : Discreet, suitable for demanding environments with a drilling diameter of 8 mm.

The MC 340 recessed magnetic contact is ideal for alarm and access control systems, providing protection against intrusion by detecting the unauthorized opening of doors and windows. This discreet, EN50131 Grade 2 compliant device includes a reed contact and a magnet with an NC (normally closed) configuration, activating an alarm in the event of a magnetic field break. Designed for recessed installation with an 8mm drilling diameter, it easily fits into wood or steel frames, offering a 20mm gap. This contact is particularly suitable for harsh environments thanks to its IP67 rating and ruggedness, withstanding temperatures ranging from -40°C to +70°C. It also includes anti-tampering functionality for added security.

Characteristics:

• Type : Recessed magnetic contact
• Operation : Reed Form A (open rest), SPST
• GAP : 20 mm
• Operating temperature : -40°C to +70°C
• Protection Grade : IP67
• Dimensions : Contact and magnet Ø9 x 25.5 mm
• Drilling diameter : Ø8 mm
• Connection : 4 wires
• Certification : EN50131 Degree 2
