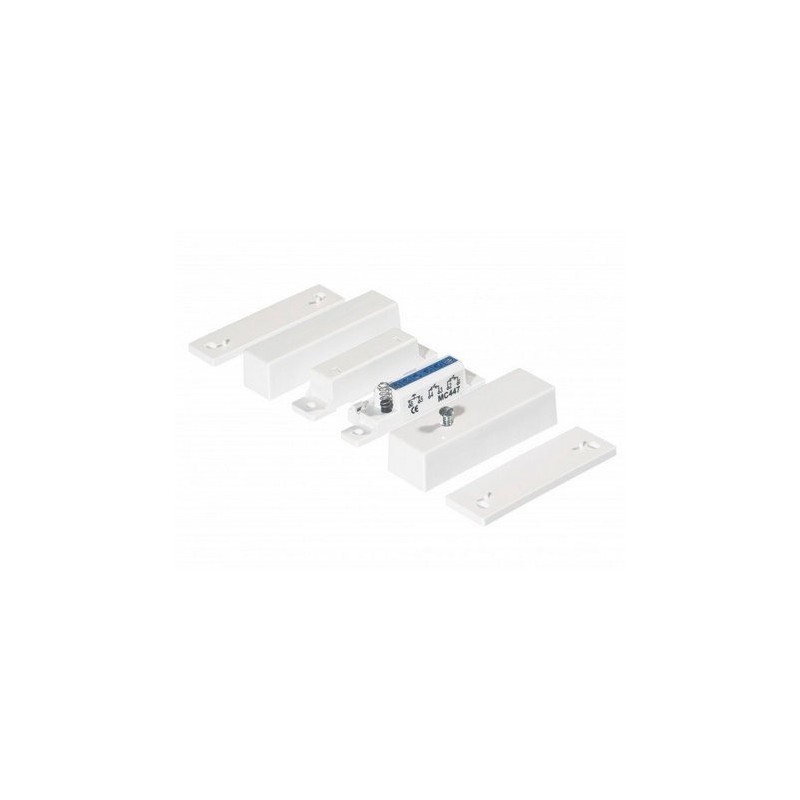

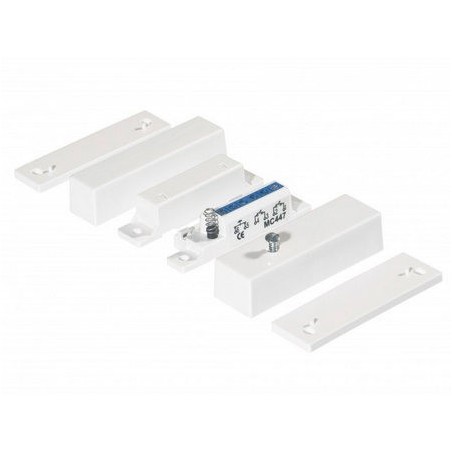

Alarmtech MC 447 - Surface Magnetic Contact

The magnetic surface contact MC 447 protects doors and windows against unauthorized openings, with double switch and tamper protection.

Strengths of Surface Magnetic Contact:

• Enhanced security : double switch and tamper protection.

• Flexible installation : adaptability for wood and steel surfaces, with spacers included.

• Safety Standards : Grade 2 EN50131 compliant for maximum reliability.

The MC 447 magnetic contact is designed to protect doors and windows in alarm and access control systems from unauthorized intrusion. This surface contact is equipped with two switches that remain closed under the influence of the magnetic field and open in the event of separation, thus triggering an alarm. Thanks to its tamper protection, the MC 447 is particularly suitable for demanding environments. Compatible with wood and steel surfaces, it includes spacers for installation on ferromagnetic materials. Easy to install, the MC 447 provides reliable monitoring and complies with EN50131 Grade 2 safety standards, ensuring high resistance to sabotage attempts and harsh environments.

Characteristics:

• Contact Type : Reed Form A (Open at Rest)
• Relay output : NC (normally closed)
• GAP : 30 mm for wood, 15 mm for steel
• Connection : 6 screw terminals with cable protection
• Operating temperature : -10°C to +55°C
• Housing material : ABS plastic
• Protection Grade : IP43
• Standard : EN50131-2-6 Grade 2
• Dimensions : Contact: 65 x 15.6 x 19.6 mm, Magnet: 65 x 15.1 x 16.1 mm
