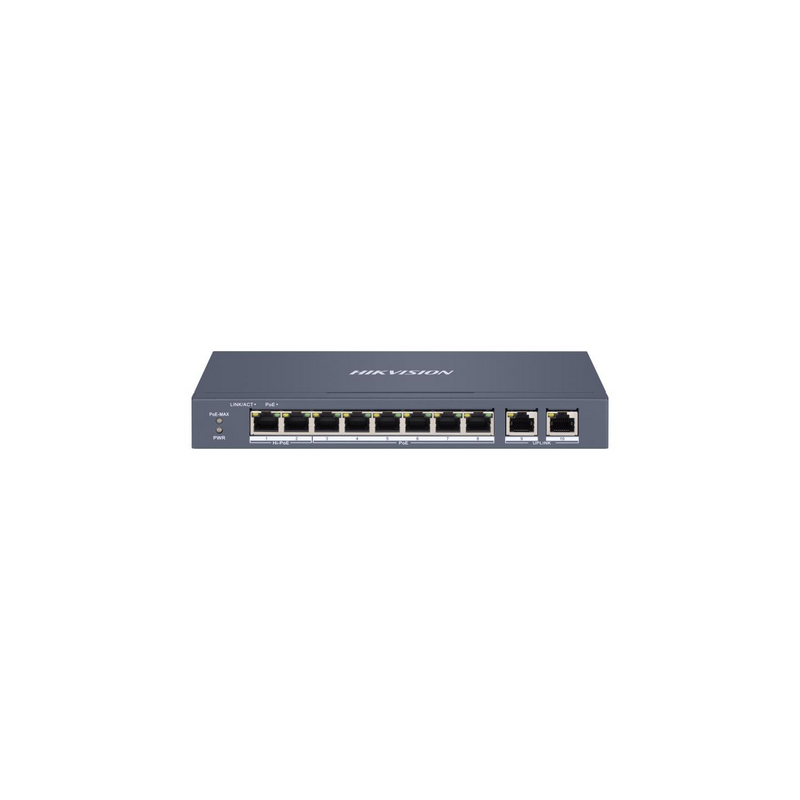

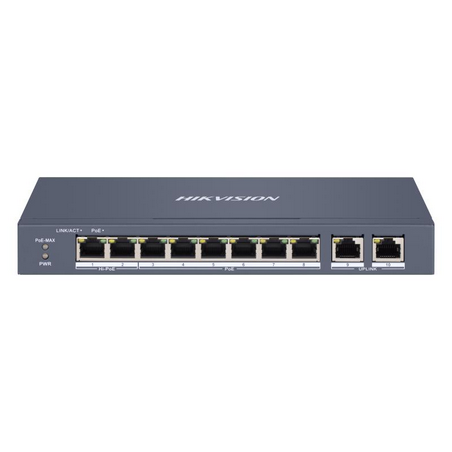

Hikvision DS-3E1310HP-EI - 8-Port POE Switch

Hikvision 8-port PoE switch offering long-range transmission, high surge protection, and Hi-PoE support for high-performance and secure network power.

PoE Switch Highlights:

• Long-range transmission : Up to 300 meters, ideal for extended installations.

• Enhanced Protection : 6 KV surge protection for added safety.

• Powerful PoE ports : Support Hi-PoE and PoE with a total capacity of 110W.

The Hikvision DS-3E1310HP-EI switch is designed for networking applications that require an integrated power supply, including security cameras and network equipment. This 8-port 100Mbps, 2-port Gigabit PoE switch offers reliable connectivity with long-range transmission up to 300 meters, ideal for installations requiring extensive coverage.

Support for IEEE 802.3af, 802.3at, and 802.3bt standards allows various PoE and Hi-PoE equipment to be powered with a total power of 110W, while ensuring enhanced surge protection up to 6 KV. Its IP40 rating ensures resistance to common environmental conditions, and its 54 VDC (120W maximum) power supply ensures optimal stability. Compact and lightweight, the DS-3E1310HP-EI switch is ideal for enterprise security infrastructures and networks that require reliable performance.

Characteristics:

• Ports: 8 x 100 Mbps PoE RJ45, 2 x Gigabit RJ45 ports
• PoE Power: 1-2 Hi-PoE ports, 3-8 PoE ports
• PoE Standards: IEEE 802.3af, 802.3at, IEEE 802.3bt, 110W total power
• Ingress protection: IP40
• Power supply: 54 VDC, 2.22 A (max. 120W)
• Transmission: Long range up to 300 meters
• Surge protection: 6 KV for PoE ports
• Operating temperature: 0°C to 40°C
• Dimensions: 21.7 cm x 2.7 cm x 10.3 cm
• Weight: 0.55 kg
