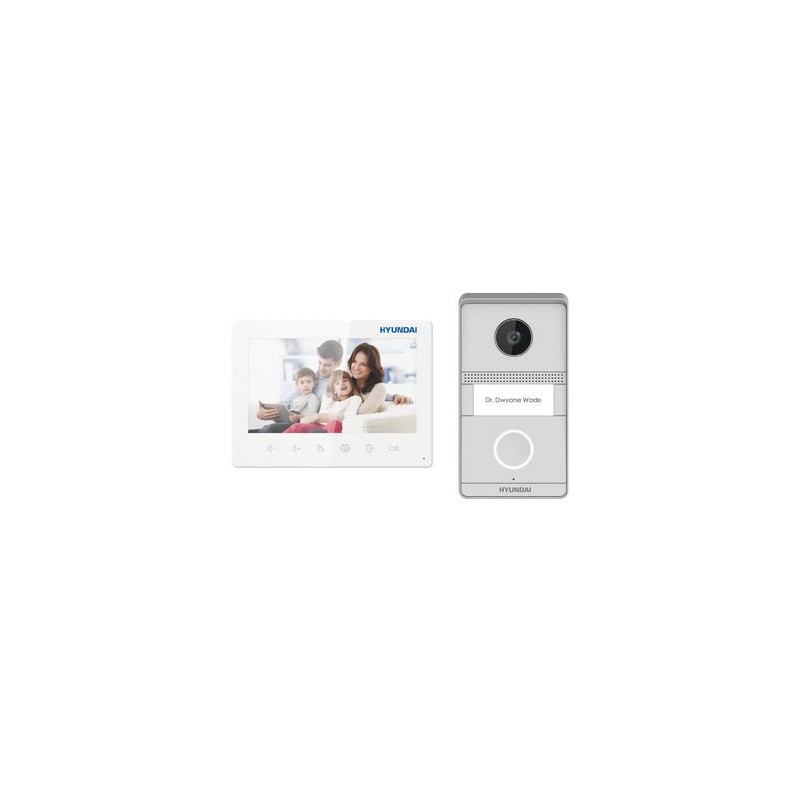

Hyundai SF-VIK007-S-2ANALOG - 2-Wire Video Intercom Kit

The HYUNDAI 2-Wire Video Door Station Kit offers a convenient and cost-effective plug-and-play solution to secure your entrances, combining a colour TFT monitor and a robust door station with HD camera and access control.

Strengths:

• Quick and easy installation: Plug-and-play 2-wire system, ideal for easy and cost-effective mounting.

• Advanced Security: 2 MP HD camera with night vision and weather resistance (IP65) and vandalism resistance (IK07).

• Comfort of use: Intuitive 7" TFT indoor monitor with touch buttons and remote access control.

The HYUNDAI 2-wire video door entry kit combines performance, simplicity and robustness to offer a complete access control solution for your home or business. Thanks to its plug-and-play installation, this system is designed to be practical and economical, even for the uninitiated. The outdoor video door station is equipped with a 2MP HD color camera with an extended viewing angle, night vision enhanced by white light, and WDR backlight for clear images, even in low-light conditions. It is also weatherproof (IP65) and vandal-resistant (IK07), ensuring increased durability.

The 7-inch TFT indoor monitor, with an intuitive interface and touch buttons, allows you to receive video calls, view visitors live and unlock doors remotely. Thanks to its 2 locking relays and its compatibility with electric locks, this kit ensures total access control. In addition, it supports up to 4 alarm inputs, further enhancing the security of your property.

Technical characteristics:

2-wire video door station:

• Camera: Fisheye HD 2 MP (100° horizontal, 69° vertical).
• Night vision: White light supplement.
• Backlight: WDR.
• Audio: Built-in omnidirectional microphone and speaker with adjustable volume.
• Alarms: 4 alarm inputs.
• Access control: 2 exit request buttons, 2 door contact inputs, 2 locking relays (up to 12V /1A).
• Resistance: IP65 waterproof, IK07 vandal-proof.
• Power supply: 48V DC, consumption ≤12W.
• Operating conditions: -30°C to +60°C, humidity 10%~90% (non-condensing).
• Dimensions: 82 (W) x 150 (H) x 23.5 mm.
• Installation: On the surface.

2-wire indoor monitor:

• Screen: 7-inch TFT (1024x600).
• Interface: 6 touch buttons.
• Audio: Built-in omnidirectional microphone and speaker with adjustable volume.
• Power supply: 48V DC, consumption ≤5W.
• Operating Conditions: -10°C to +55°C, Humidity 10%~90% (non-condensing).
• Dimensions: 187 (W) x 137 (H) x 25.4 mm.
• Installation: On the surface.
