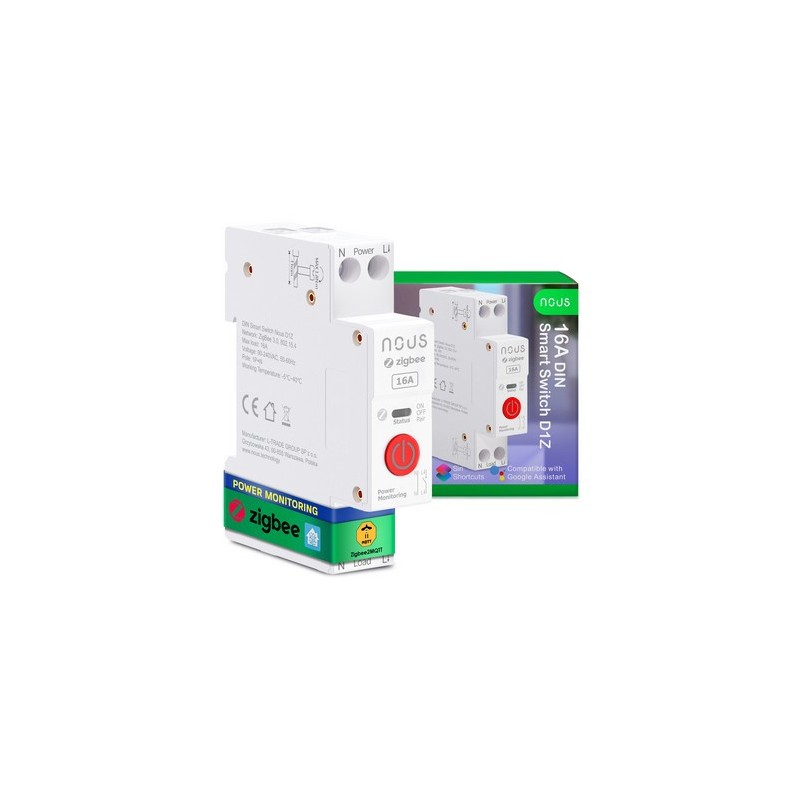

US D1Z - Zigbee Module DIN Rail 16A Power Consumption Measurement

The D1Z Zigbee Rail DIN 16A + Consumption Measurement module from NOUS is a device designed for home automation, allowing the energy consumption of electrical appliances to be controlled and monitored via the Zigbee 3.0 protocol. It is primarily intended to be mounted on a DIN rail, which is a standard format for electrical installations in switchboards.

Key features:

1. Zigbee 3.0 protocol :

   • The module uses Zigbee 3.0, a wireless communication standard widely used in home automation, ensuring low power consumption and good range for smart home systems. It can be integrated with compatible Zigbee hubs or gateways, such as those in the Tuya, Amazon Alexa, or Google Home ecosystems.

2. 16A Load Capacity :

   • The module allows you to control electrical devices with a maximum load of 16 amps. This makes it suitable for medium to high power household appliances, such as heaters, air conditioners, washing machines, etc.

3. Energy consumption measurement :

   • One of the key features of this module is the ability to measure the power consumption of the device to which it is connected. You can view real-time data on the energy used by your devices via the compatible mobile app, which helps you track consumption and optimize your energy spend.

4. DIN rail installation :

   • The module is designed to be mounted on a DIN rail, allowing for professional and secure installation in a standard electrical panel. It is ideal for existing home automation systems where a clean and organized installation is required.

5. Remote control via app :

   • Thanks to Zigbee connectivity, this module allows you to control your devices remotely via the Tuya Smart or Smart Life app. You can turn your devices on or off from your smartphone, set schedules or receive alerts.

6. Integration into a home automation system :

   • This module can be integrated into an existing home automation system, allowing you to create automated scenarios. For example, you can schedule devices to turn on and off on specific schedules or integrate them into scenarios with other smart devices (such as motion sensors or thermostats).

Benefits:

• Accurate consumption tracking : Allows you to monitor electricity consumption in real time and thus better manage energy at home, thus reducing the electricity bill.

• Clean and secure installation : DIN rail mounting is ideal for installation in electrical panels, ensuring an organized and secure installation.

• Remote Control : Allows you to control your devices flexibly and conveniently via a smartphone app.

• Eco-friendly and economical : Tracking consumption helps you adopt more responsible energy consumption behaviors.

Use and installation:

1. Installation in the electrical panel : The module must be installed by a professional electrician in a standard electrical panel using a DIN rail.

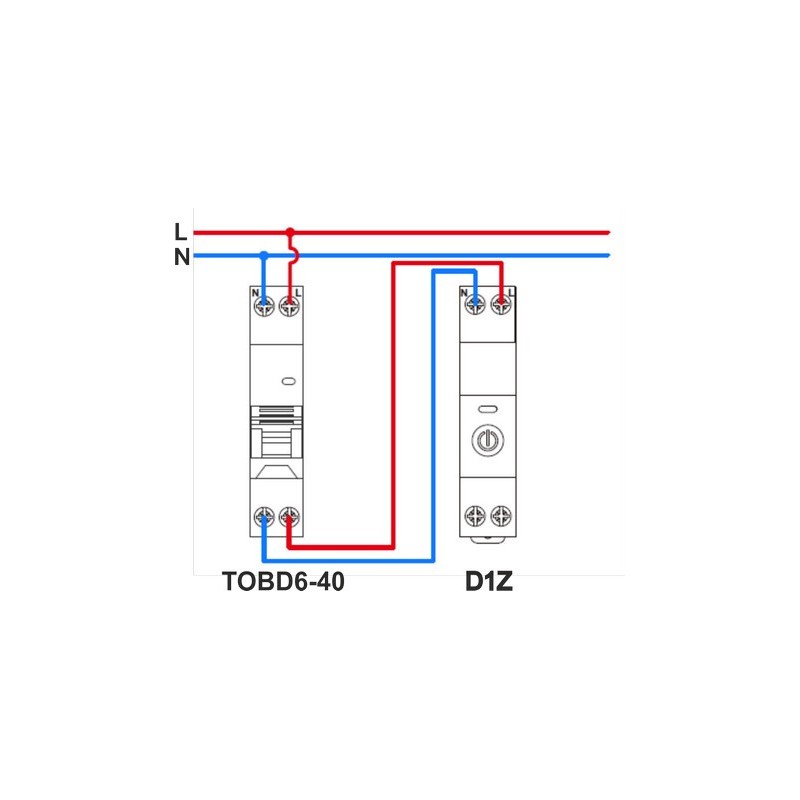

2. Electrical connections : Connect the power and charging wires to the terminals provided. The module will control the power supply of the device based on the commands received via Zigbee.

3. Pairing with a Zigbee hub : Once installed, pair the module with a compatible Zigbee hub (e.g., a Tuya Zigbee gateway or another standard Zigbee hub). You can then add it to the Tuya Smart or Smart Life app to manage the device remotely.

4. Setup and tracking : Use the mobile app to set up usage schedules,

Features US D1Z - Zigbee Module DIN Rail 16A Power Metering:

• Colour: White

• Material: PC/ABS (V0)

• Special functions: Consumption measurement

• Certifications: CE, RoHS

• Device dimensions: 82 x 50 x 15 mm

• Operating temperature: -25°C to 70°C

• Operating Voltage Range: 90-240V

• Maximum Load: 16A

• Moisture protection level: IP20

• Communication Standard: IEEE 802.15.4

• Control from a smartphone: NOUS Smart Home App

• Voice assistant compatibility: Amazon Alexa, Google Home

• Protocol: ZigBee 3.0

• System requirements: iOS 8 or Android 4.4 or later
