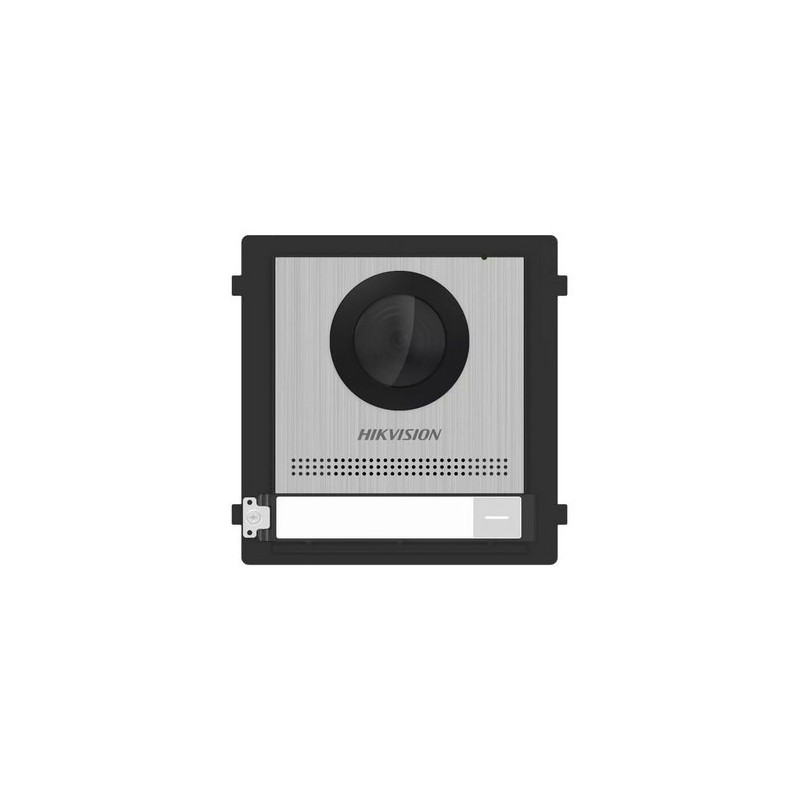

Hikvision DS-KD8003-IME1(B)/S - IP Modular Video Door Station

The Hikvision DS-KD8003-IME1(B)/S is a modular door station with 2 MP wide-angle camera, video intercom, and PoE compatibility, providing optimal security and communication for residential and business entrances.

Strengths

• HD video and night vision : 2 MP camera with fisheye lens, WDR and IR illumination for optimal surveillance day and night.

• Security & Access Control : Supports 2 locking relays, 4 alarm inputs, and 6000 access cards.

• Flexible installation and connectivity : PoE compatible and surface or flush mounting, with configuration via web interface.

The Hikvision DS-KD8003-IME1(B)/S is a modular door station designed to improve security and communication at entry points. Equipped with a 2 MP HD wide-angle camera (146° horizontal / 82° vertical) and IR illumination for clear vision even in low light, it makes it easy to identify visitors before granting access.

This turntable incorporates a video intercom function, ensuring smooth communication with indoor stations and main stations. It features an omnidirectional microphone and a speaker with noise cancellation and echo cancellation, ensuring clear and accurate sound.

Advanced access control allows the management of 6000 access cards and supports 2 locking relays, making it easy to open doors and manage entrances. In addition, its 4 alarm inputs (2 exit buttons and 2 door contacts) enhance security.

It is compatible with a 10/100 Mbps Ethernet connection and can be powered by PoE (IEEE 802.3af) or 12 VDC, providing simplified installation. Its IP65 structure guarantees weather resistance, and its mounting can be made surface-mounted or recessed to adapt to different environments.

Thanks to its configuration via web interface, this stage is easy to set up and integrate into existing security systems.

Technical characteristics

• Camera : 2 MP HD, fisheye lens (FOV 146° H / 82° V), WDR, IR illumination
• Audio : Omnidirectional microphone, built-in speaker, noise cancellation, and echo cancellation
• Access control :
  • 2 locking relays (max 30V, 2A)
  • 6000 access cards
  • 4 alarm inputs (2 exit buttons, 2 door contacts)
• Connectivity : TCP/IP, RTSP, 10/100 Mbps Ethernet
• Power supply : 12 VDC or PoE (IEEE 802.3af)
• Installation : Surface mount or flush mount
• Protection : IP65 (weatherproof)
• Operating temperature : -40°C to 60°C
• Dimensions : 98 mm × 100 mm × 42 mm
• Weight : 0.410 kg (without packaging), 0.581 kg (with packaging)
