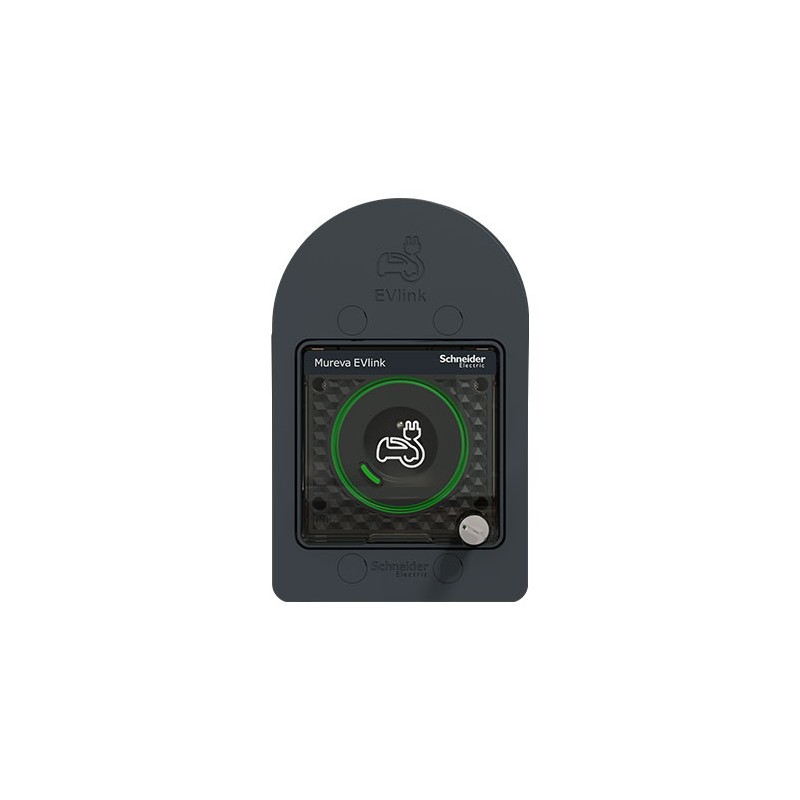

Schneider Electric MUR36015 - Mureva EVlink 2P+T Keyed Electric Vehicle Charging Socket

The Mureva EVlink MUR36015 is a 16A/250V reinforced socket with key lock, designed for the safe charging of electric and plug-in hybrid vehicles. IP66 waterproof, robust IK08 and connectable to the Wiser system, it combines security, practicality and intelligence.

Strengths

• Enhanced Security: Key-locked restricted access, IP66 waterproof, and IK08 impact resistance.

• Simple and complete installation: Ready-to-use housing with cable holder, cable gland, secure flap and drilling template included.

• Intelligent Load Management: Connectivity with Wiser for remote control and energy optimization (requires a gateway).

The Schneider Electric MUR36015 – Mureva EVlink is a 2P+T reinforced socket designed to offer safe and efficient charging to electric and plug-in hybrid vehicles. Thanks to its key lock, it limits access and prevents unauthorized use, thus ensuring better protection.

Its high protection class (IP66 & IK08) makes it ideal for both indoor and outdoor installation, with increased resistance to impacts and weathering. Inspired by French mileposts, its modern anthracite grey design blends in perfectly with any environment.

Installation is quick and easy, thanks to a ready-to-use surface-mounted box including:
✔ 2P+T reinforced socket with eclipses
✔ Secure clear flap with key lock (2 keys included)
✔ Cable holder with hooks
✔ Cable gland and plugs to ensure sealing
✔ Drilling template for precise assembly

The socket mechanism (3x2.5mm² screw connection) can be clipped on and off without tools in a patented sealed area. Its robust flap, fixed with 4 captive metal screws, ensures long-lasting protection.

Connectivity and energy intelligence

The Mureva EVlink can be connected to the Wiser management system, allowing users to remotely control their charging, program schedules (off-peak hours) and optimize their energy consumption (requires a gateway).

Security and certifications

✔ 8A VE CERTIFICATION (NF C 61-314) and reinforced 16A approval (IEC 60884-1)
✔ Green Premium certified, an eco-label that guarantees sustainable and environmentally friendly performance
✔ Installation without EVSE clearance required

Technical characteristics

• Product Type: 2P+T Reinforced Socket with Key Lock
• Current & Voltage: 16A / 250V
• Ingress protection: IP66 (waterproof) and IK08 (impact-resistant)
• Installation:
  • Wall mount with 3 cable entries (top, bottom, back)
  • Screw connection (3x2.5mm²)
  • Secure clear flap with key lock (2 keys included)
  • Built-in cable holder
  • Cable gland and plugs provided
• Safety and compliance: NF C 61-314 (8A VE) and IEC 60884-1 (16A reinforced)
• Connectivity: Wiser compatible (requires a gateway)
• Colour and design: Charcoal grey

Why choose the Mureva EVlink MUR36015?

✅ Maximum security with key lock
✅ Quick and complete installation, without the need for EVSE accreditation
✅ Efficient and intelligent charging, with control via Wiser
✅ Compatible with all electric and plug-in hybrid vehicles
