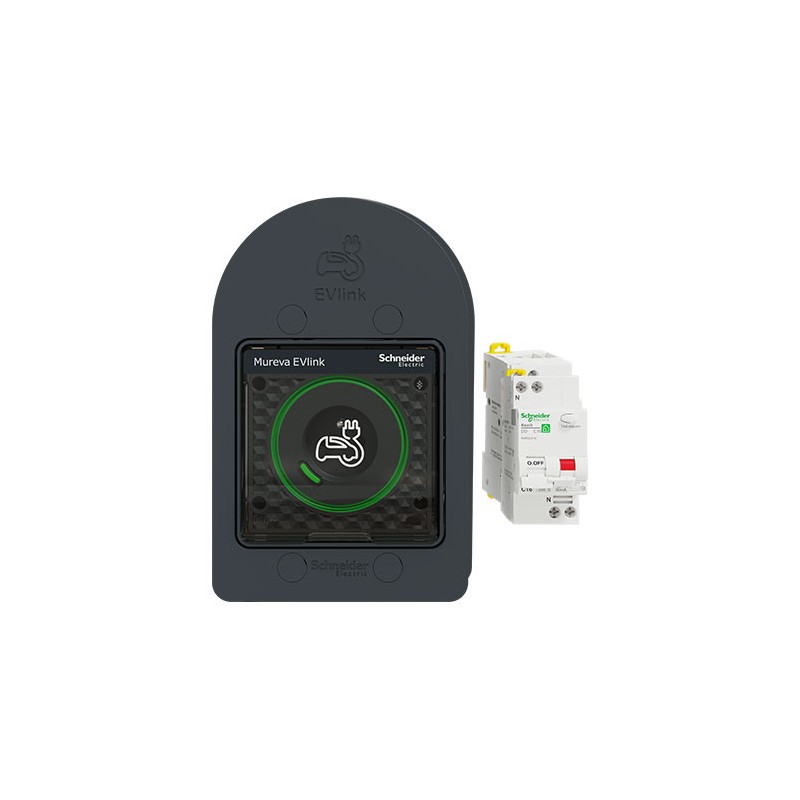

Schneider Electric MUR36016 - Mureva Evlink EV Power Outlet Kit + Protection

The Mureva EVlink MUR36016 kit combines a reinforced 16A / 250V socket and a residual current circuit breaker, offering a complete, IP66 waterproof and robust IK08 solution, for charging electric and plug-in hybrid vehicles, with Wiser compatibility for intelligent management.

Highlights of the electric vehicle kit:

• Complete and secure installation: Includes a reinforced outlet and a RCD, eliminating the need for additional items.

• Robustness and ergonomics: IP66 and IK08 protection, easy attachment with drilling template and optimized wiring.

• Scalability and connectivity: Compatible with Wiser (requires a gateway) and available in keyed or keyless versions to limit access.

The Schneider Electric MUR36016 – Mureva EVlink Kit is the ideal solution for ensuring safe and efficient charging of electric and plug-in hybrid vehicles. This complete kit includes a reinforced 16A socket and a residual current circuit breaker, ensuring a compliant and perfectly protected installation.

Designed to prevent overheating, the plug offers advanced features such as:
✔ Built-in cable holder for better organization
✔ Indicator light for quick monitoring of the state of charge
✔ Compatibility with the Wiser system, allowing intelligent control of charging (via gateway)

Thanks to its IP66 protection rating and IK08 resistance, this socket is suitable for both indoor and outdoor use. Its modern anthracite grey design, inspired by French kilometre markers, brings an aesthetic and discreet touch to your installation.

Quick and easy installation

• Surface-mounted housing with 3 cable entries (top, bottom, back) for optimal fit.
• Screw connection (3x2.5mm²) with a patented mechanism that can be clipped on and unclipped without tools.
• Secure transparent flap, fixed by 4 captive metal threaded screws for increased robustness.
• Drilling template included, making it easy to install the 8 holes needed (4 for the housing, 4 for the cable holder).
• Cable gland and plugs provided, guaranteeing a perfect seal.

Security and certifications

✔ 8A VE CERTIFICATION (NF C 61-314) and reinforced 16A approval (IEC 60884-1)
✔ Green Premium certified, guaranteeing an environmentally friendly product
✔ Installation without EVSE clearance required
✔ Key-lock option, limiting access to the outlet

Technical characteristics

• Product type : 2P+T reinforced socket kit + RCD
• Current & Voltage : 16A / 250V
• Ingress protection : IP66 (waterproof) and IK08 (impact-resistant)
• Installation :
  • Wall mount with 3 cable entries (top, bottom, back)
  • Screw connection (3x2.5mm²)
  • Secure clear damper
  • Built-in cable holder
  • RCD included
  • Cable gland and plugs provided
  • Drilling jig for simplified installation
• Safety and compliance : NF C 61-314 (8A VE) and IEC 60884-1 (16A reinforced)
• Connectivity : Wiser compatible (requires a gateway)
• Colour and design : Charcoal grey
