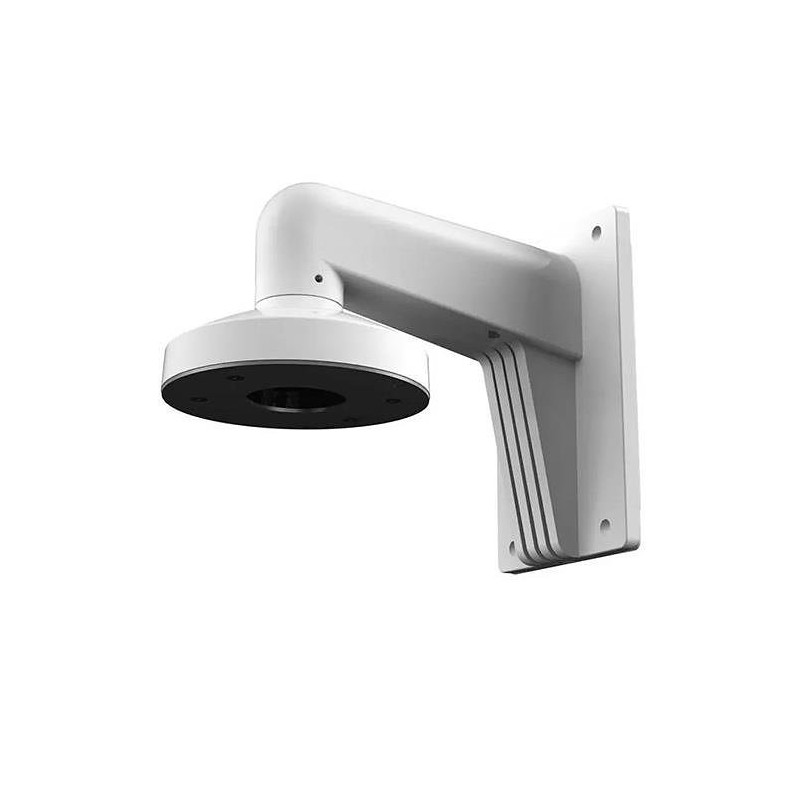

Hikvision DS DS-1273ZJ-130-TRL - Camera Mounting Bracket

The Hikvision DS-1273ZJ-130-TRL Mounting Bracket is an aluminum alloy wall bracket, designed for the secure installation of Hikvision cameras. It ensures a robust and stable fixing, with a load capacity of up to 3 kg, ideal for indoor or outdoor installation.

Strengths

• Durable Material : Aluminum alloy with surface treatment for increased weather resistance.

• Secure Installation : Designed to support up to 3 times the weight of the camera and mount.

• Easy to install : Built-in protective cover and flat wall mounting with gaskets for outdoor use.

The Hikvision DS-1273ZJ-130-TRL is a wall mounting bracket designed to ensure reliable and stable installation of Hikvision surveillance cameras. Made of aluminum alloy with a durable coating, it is ideal for both outdoor and indoor use.

Thanks to its robust structure, it can support up to 3 kg, guaranteeing a strong and secure fixation. It is designed to be installed on a flat wall, with the use of gaskets recommended for outdoor installations.

Its ergonomic design makes it easy to install and maintain the cameras, with a built-in cover to protect cable passage. This mount is particularly suitable for compatible Hikvision cameras, offering perfect integration and an optimized viewing angle.

Technical characteristics

• Product Type : Camera Wall Mount
• Material : Aluminum alloy with surface treatment
• Dimensions : Ø 132 mm × 183.5 mm × 288.5 mm (5.20" × 7.22" × 11.36")
• Weight : 900 g (1.98 lbs.)
• Load capacity : 3 kg (6.6 lbs.)
• Installation :
  • Flat wall mounting
  • Use of exterior gaskets
  • The wall must support at least 3 times the total weight of the stand and camera
• Color : Hikvision White
