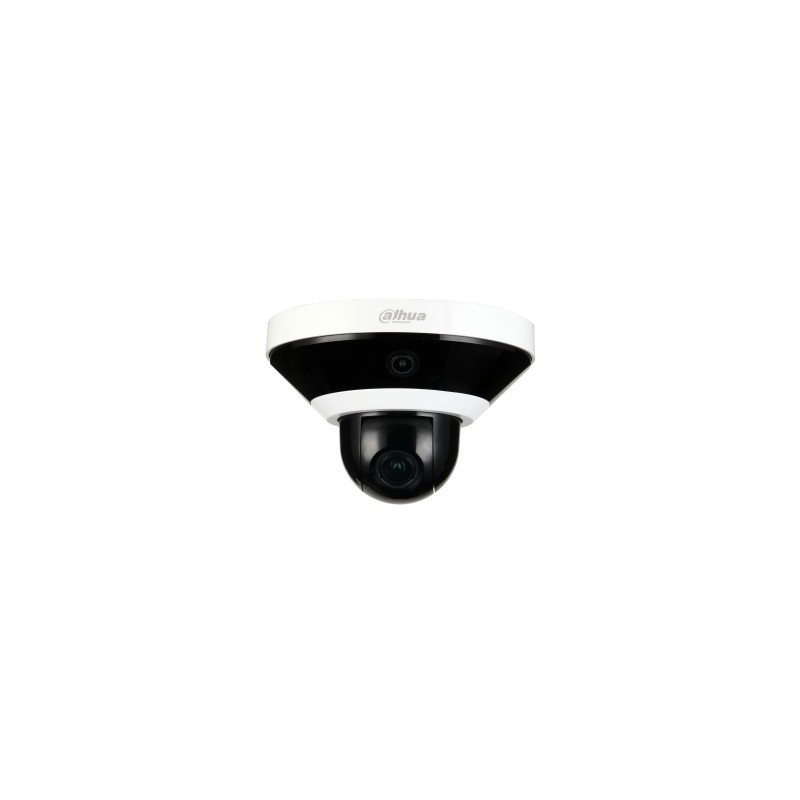

Dahua PSDW5631S-B360 - 3x2 Megapixel Panoramic IP Mini Dome

Dahua PSDW5631S-B360 - 3x2 Megapixel Panoramic IP Mini Dome

The Dahua PSDW5631S-B360 camera is an advanced indoor IP video surveillance solution, combining a 360° panoramic view with PTZ (Pan-Tilt-Zoom) capabilities for comprehensive and flexible coverage.

• Sensors: Three 2 MP 1/2.7" CMOS sensors for the panoramic view and one 2 MP 1/2.7" CMOS sensor for the PTZ function.

• Objectives:

• Pan: 2mm fixed lenses with a 136° horizontal and 78° vertical angle of view.

• PTZ: 2.7-13.5mm motorized lens with 5x optical zoom, 105.9° to 33.3° horizontal and 56° to 18.7° vertical view.

• Resolution: Up to 1080p (1920 x 1080) at 25 frames per second.

• Night vision: Infrared illumination up to 15 meters.

• Video compression: H.265/H.264 with dual stream.

• Smart features: Motion detection, lane crossing, intrusion, private area masking, ROI (Region of Interest).

• Audio: Audio in and out (1/1).

• Alarms: 3 alarm inputs and 2 alarm outputs.

• Storage: Micro SD card slot up to 256GB.

• Connectivity: RJ45 (100/1000 Base-T) network port, ONVIF (T-Profile), CGI compatible.

• Power supply: 12V DC or PoE+ (802.3at).

• Dimensions: Ø172 x 123.4 mm.

• Weight: Approx. 780 g.

• Operating temperature**: -10°C to +50°C.

• Installation**: Wall, ceiling or pole mounting.

This camera is ideal for indoor surveillance of large areas such as lobbies, shopping malls, warehouses, or public spaces, where full panoramic coverage and detailed zoom capability are required.

Features of Dahua PSDW5631S-B360 - 3x2 Megapixel Panoramic IP Mini Dome:

• Fixed lenses: 2mm

• Three 1/2.7'' 2MP CMOS sensors

• Resolution of the 3 fixed lenses: 2MP

• PTZ lens resolution: 2MP

• Infrared distance: 15 meters

• Image enhancement function: WDR (120dB), 3D DNR, HLC, BLC, AWB, AGC, ICR

• Power supply: PoE plus 802.3at or 12V DC, 2A

• Audio I/O 1/1

• Motorized PTZ Lens: 2.7-13.5mm

• Video compression: H.265/H.264/H.264B/H.264H/MJPEG

• Intelligent analysis function: Line crossing, area intrusion

• Angle of view: H: 136°, V: 78°°

• SD card slot, max 256GB

• Compatibility: ONVIL T-Profile, CGI

• 2 streams

• 3-axis mounting: Wall, ceiling and pole

• Operating temperature: -10°C to 50°C

• Dimensions: Ø 17.2cm x 12.34cm

• Weight: 0.78Kg
