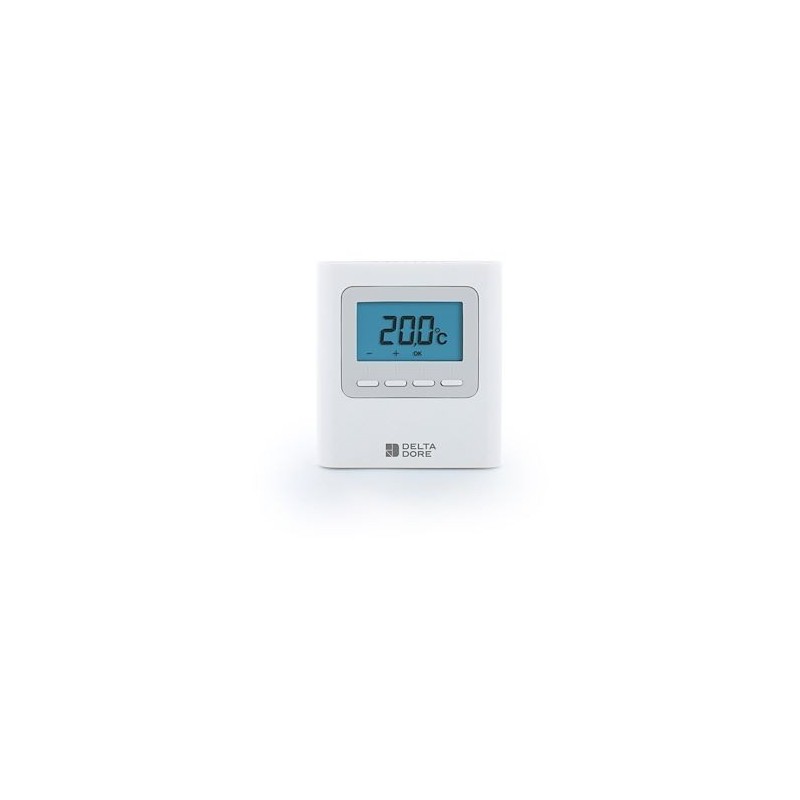

Delta Dore Minor 1000 6151058 - White Room Thermostat

The Delta Dore Minor 1000 Room Thermostat (reference 6151058) is a wireless room thermostat for the management of electric heaters without a pilot wire, such as convectors. It allows precise temperature control and offers advanced features to optimize the comfort and energy efficiency of your installation.

Key features

Temperature Control: Precise room temperature control with a backlit LCD display showing temperature, relative humidity, and energy consumption in kWh.

Programming and automation: Up to 16 receivers (such as RF 6620, RF 6630 or RF 6640) can be combined to drive multiple radiators. Compatible with the Delta Dore TYDOM connected box for remote management via smartphone and voice assistants.

Comfort and economy features:

• Automatic lowering of the temperature in case of absence detected (requires a motion detector).

• Frost protection mode activated if a window equipped with an opening sensor is opened.

Autonomy and installation:

• Powered by 2 FR03 lithium batteries provided, offering a 10-year battery life.

• Compact dimensions: 80 x 80 x 25 mm.

• Surface mounted on wall or tabletop.

Compatible Accessories

For a complete installation, you will need a receiver suitable for your type of radiator:

• RF 6620: Receiver with wired output.

• RF 6630: Receiver with terminal block output.

• RF 6640: Receiver with dry contact output.

These receivers allow the radiators to be controlled according to the commands issued by the Minor 1000 thermostat.

Features Delta Dore Minor 1000 6151058 - White Room Thermostat:

• Dimensions : 80 x 80 x 25 mm

• Weight : Not specified

• Power supply : 2 FR03 lithium batteries included

• Battery life : Approximately 10 years

• Operating temperature : 0 to 40 °C

• Adjustment range : 5 to 40 °C (with the possibility of locking between 16 and 40 °C)

• Display : Backlit LCD screen

• Radio range : 100 to 300 m in open field

• Regulation : PI (Proportional-Integral) and On/Off

• Protection class : IP30

• Warranty : 5 years

• Place of use : Indoor

Main functions

• Temperature control : Precise room temperature control for electric heaters without a pilot wire.

• Data display : Indication of room temperature, relative humidity and energy consumption in kWh.

• Programming : Possibility of programming time slots to adapt the heating to needs.

• Absence Detection: Automatic temperature reduction in case of absence detected (requires a Delta Dore motion detector).

• Frost protection : Automatic activation of frost protection mode if a window equipped with an opening detector is opened.

• Home automation compatibility : Integration with the Delta Dore TYDOM connected box for remote management via smartphone and voice assistants.
