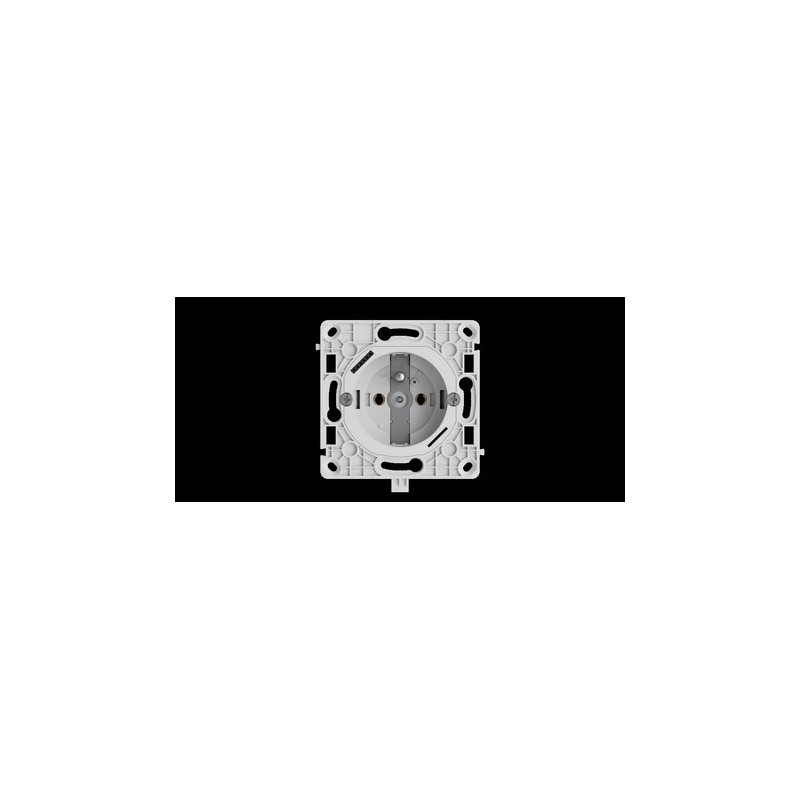

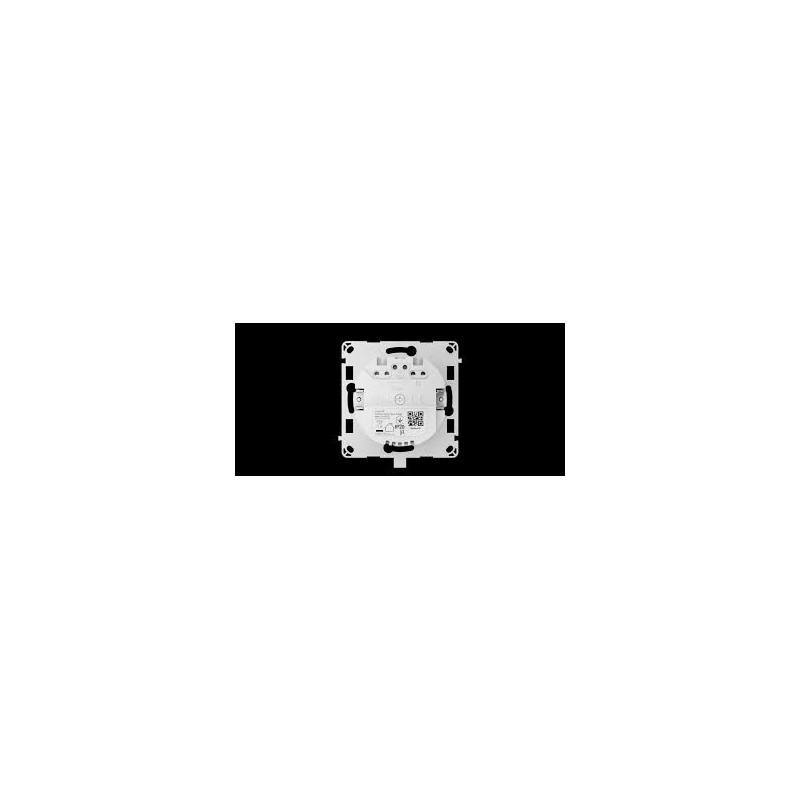

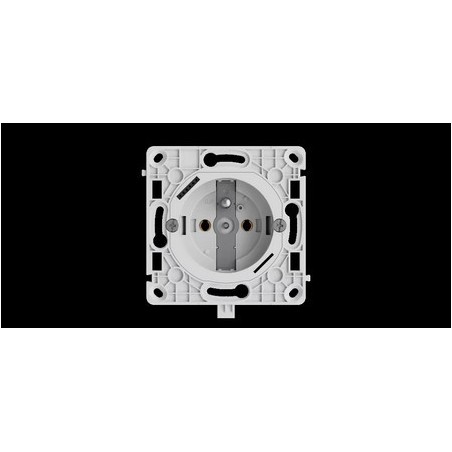

Ajax OUTLETCORE Type E - Recessed Smart Plug with Energy Control Function

Ajax OUTLETCORE Type E Smart Flush Socket with Energy Consumption Control Function

The Ajax OUTLETCORE Type E Smart Recessed Window is a wireless device designed to control the power supply of electrical appliances while monitoring their consumption. It integrates seamlessly with the Ajax security system via the secure protocol

Technical characteristics

• Plug Type : Compatible with European E-type plugs (Schuko plug), featuring a grounding terminal and protective shutters to prevent electrical hazards.

• Load capacity :

  • Resistive load: up to 3 kW (with current protection set to 13 A).

  • Inductive or capacitive load: maximum switching current of 8 A.

• Energy monitoring : Real-time measurement of voltage, current, power , and power consumption of connected devices.

• Built-in protection :

  • Surge protection (184 to 253 V range).

  • Overcurrent protection (adjustable from 1 to 16 A).

  • Thermal protection (95°C trigger).

• Control modes :

  • Via the Ajax mobile app.

  • By automation scenarios.

  • Use of the built-in touch button .

  • With Button or LightSwitch devices.

• Communication : Jeweller Protocol with a range of up to 1,100 meters in the open field.

• Installation : Requires a recessed box with a minimum depth of 50 mm.

• Compatibility : Works with Ajax hubs with OS Malevich firmware 2.16 or higher.
