US D4Z - Zigbee Rail DIN Module 120A Power Consumption Measurement

US D4Z Zigbee Module DIN Rail 120A Power Consumption Measurement

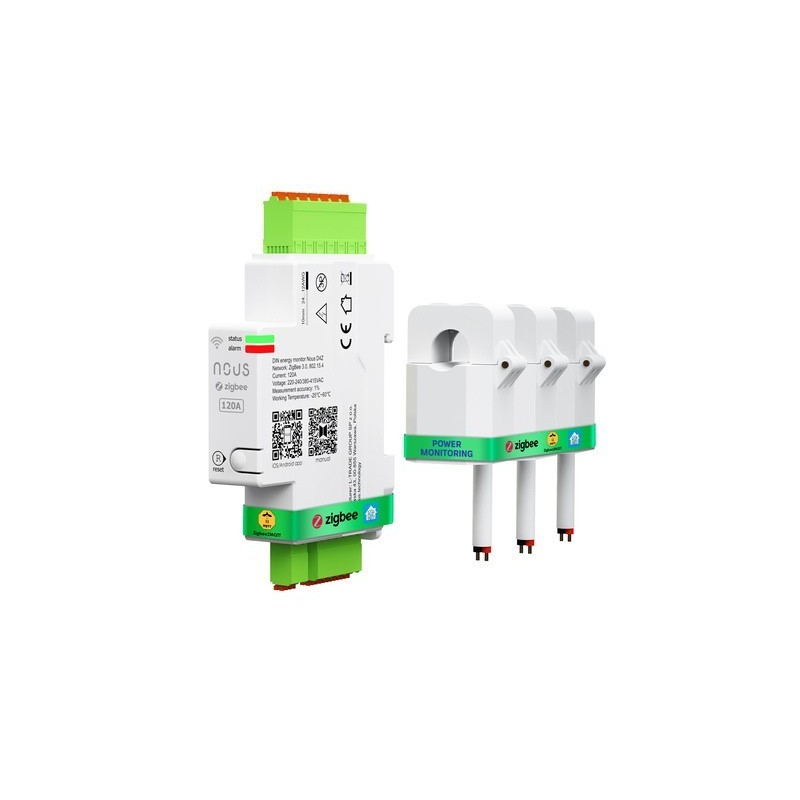

The NOUS D4Z Zigbee Smart Energy Monitor is a monitoring device consisting of an 18mm wide (1MW) monitor installed on a DIN rail and three split-core (CT) current transformers.

Operating as a professional three-phase energy meter, it accurately measures voltage, current, power, and energy data in real-time, with wireless and/or wired communication options available for data transmission.

Features US D4Z - Zigbee Module DIN Rail 120A Power Consumption:

• Brand US

• Colour White

• PC/ABS Material (V0)

• Special Features Energy Monitoring; Direction of the Flow of Positive Energy

• CE, RoHS Certificate

• Compatibility Lock Clip for DIN Rail Mounting

• Operating voltage range 220~240 VAC phase to neutral, 50/60 Hz 380~415 VAC phase to phase, 50/60 Hz

• Operating Temperature -25~70°C

• Moisture protection level IP20

• Maximum load Maximum Imax current: 120 A

• ZigBee 3.0 protocol

• Compatibility with Amazon Alexa, Google Home voice assistants

• Control from a smartphone app: NOUS Smart Home

• System Requirements iOS 8 or Android 4.4 or higher

• Communication Standard IEEE802.15.4

• 24 Month Warranty
