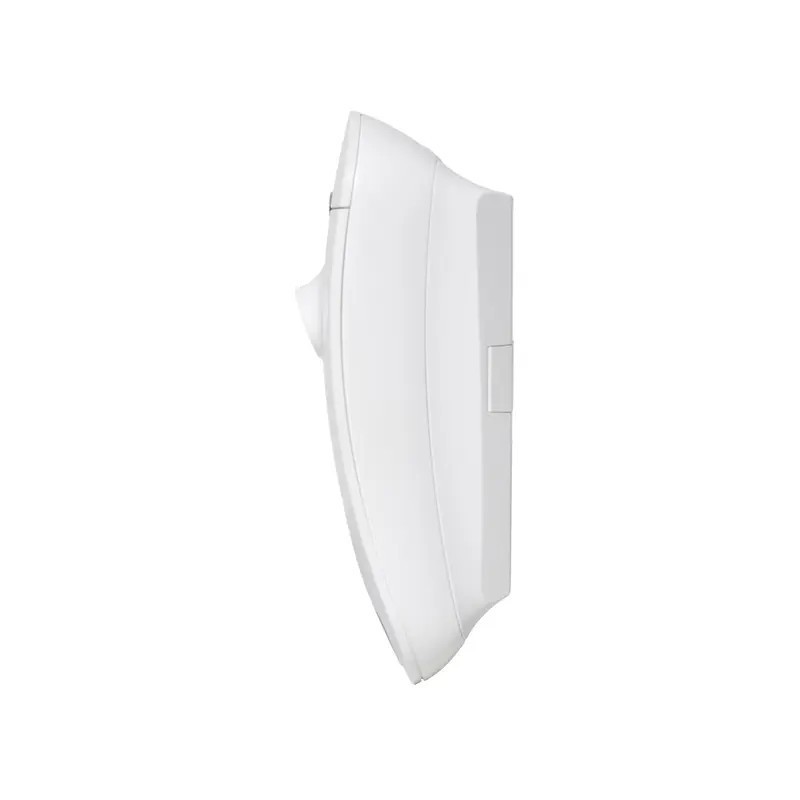

Acre WPIRCAM-EXT - IP65 Wireless Motion Detector

Acre WPIRCAM-EXT Wireless Motion Sensor IP65

Sensing Technology

This wireless motion sensor is equipped with advanced detection technology, including an active anti-mask that prevents any attempt at concealment. It also incorporates a CMOS camera, allowing visual surveillance in addition to motion detection. PIR coverage ranges from 0 to 15 meters with nine levels of sensitivity, providing a wide 96-degree coverage. The camera can capture images up to a range of 15 meters.

Communication and transmission

The device uses a two-way radio operating on the 868-869 MHz frequencies, ensuring reliable communication. The communication range reaches up to 1300 meters, allowing flexible installation in various environments. Events such as alarm, anti-tamper, anti-mask, photo(s) check, supervision, and low battery status are transmitted effectively. The transmitting power can reach up to 14 dBm.

Image quality and configuration

The camera's resolution is configurable, offering a choice between VGA and QVGA. The image mode is also adjustable, allowing you to switch between black and white and color modes according to specific surveillance needs.

Power supply and autonomy

The detector is powered by four 1.5V AA batteries with a capacity of 3400mAh (Li-FeSx). The system is designed to indicate a low battery at 2.8V, with an automatic cut-off at 2.5V in order to preserve essential functions.

Security and protection

To ensure the safety of the device, an anti-tamper contact is integrated, reacting to the opening of the detector or the removal of the wall. This feature provides continuous protection against unauthorized manipulation.

Installation and operating conditions

The detector is designed to be mounted at a height of 0.8 to 1.2 meters, optimizing its detection capacity. It works effectively in a wide temperature range of -25°C to 65°C, making it suitable for various outdoor environments. The device is IP65 rated, guaranteeing dust and water resistance.

Dimensions and weight

With dimensions of 21.8 cm x 7.5 cm x 8.7 cm and a weight of 400 grams, the detector is compact and lightweight, making it easy to install and integrate into different types of security systems.

Features of Acre WPIRCAM-EXT - IP65 Wireless Motion Sensor:
