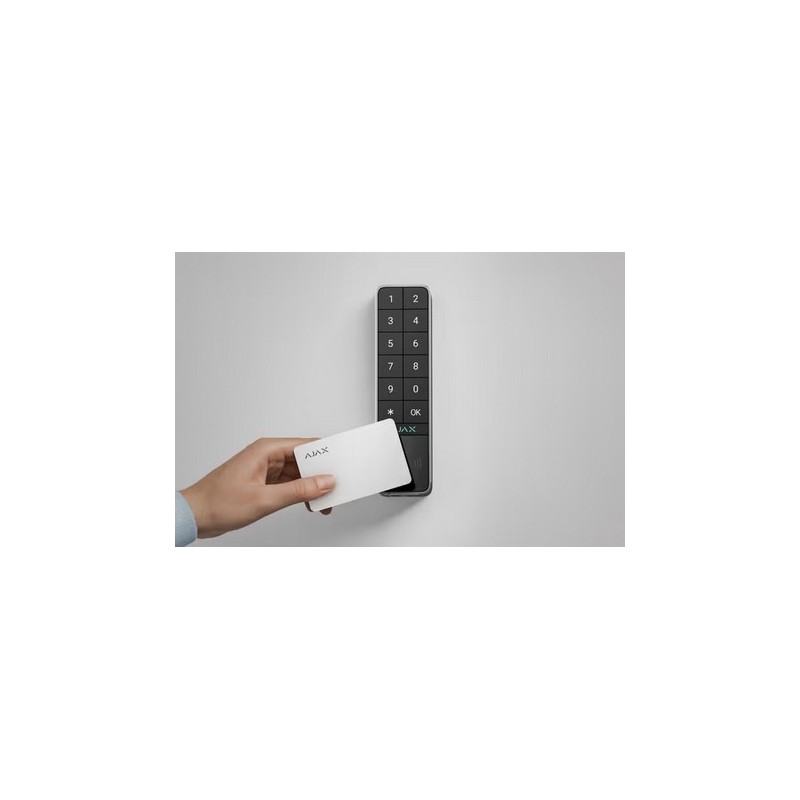

Ajax KEYPAD OUTDOOR - Outdoor Keyboard Black

The KeyPad Outdoor Jeweller keyboard from Ajax Systems is a wireless keyboard designed for outdoor installation. It allows the Ajax alarm system to be activated or deactivated in a secure way, even outside the building.

Installation

The keypad is fixed to the wall at the entrance, on a gate, or on the exterior façade

Compatible with Ajax SmartBracket mounts

Configuration via Ajax PRO app or Ajax Security System

Ability to deactivate the system with an RFID badge, a code, or a smartphone

Key Benefits

Outdoor / weatherproof operation

The Outdoor keyboard is designed to resist water, dust, shocks, temperature variations. This allows it to be installed outside (gate, exterior entrance) without fear of the weather.

Multiple authentication

You can disarm or arm the system with a contactless code, card or badge (Pass / Tag / NFC / DESFire), or even via smartphone in some models. This makes access more flexible (and sometimes faster) than relying solely on one code.

Enhanced security

Communication encryption.

Tamper detection: If someone tries to force the box, unhook it, or guess the code repeatedly, the system can block the keypad or send an alert.

High safety standards, especially for wired models like the Fibra, which is important if you want a certified alarm.

Use even with constraints

Keys can be used with gloves depending on some models. Handy in winter.

Large buttons and good visibility.

Rugged housing (IP, IK class) that protects against physical damage.

Reduced autonomy / maintenance

For cordless versions: often long battery life (1-2 years or more depending on usage), which reduces the need for frequent battery replacement.

Flexibility & comfort of use

You don't have to take out a phone to disarm, or touch a delicate device: you have a quick physical access point (often near the door).

If you have several users, you can give individual badges or codes. Useful in a family, or for different people (nomads, service providers)

Features Ajax KEYPAD OUTDOOR - Ajax KEYPAD OUTDOOR - Outdoor Keyboard Black:

• Wireless keypad with authentication

• By Pass, Tag, smartphones and codes

• Jeweller Communication Technology

• Two-way communication

• Advanced Tamper Protection

• Max. effective radiated power (ERP): up to 20 mW

• Radio signal range: up to 1700m

• Frequency bands: 866.0 to 866.5 MHz 868.0 to 868.6 MHz 868.7 to 869.2 MHz 905.0 to 926.5 MHz 915.85 to 926.5 MHz 921.0 to 922.0 MHz

• Keypad functions: switching safety modes, managing automation devices, starting timers on disarming (bypass keypad)

• Authentication methods: access codes, tag badges, Pass cards, smartphone (via Bluetooth)

• Contactless access: DESFire® EV1, EV2, EV3, ISO14443-А (13.56 MHz)

• Contactless authentication via smartphone

• Unauthorized Access: Self-Locking

• Anti-tamper button alarm

• Data Theft Protection

• Battery: 2x CR123A

• IP66, IK08

• Operating temperature: -25 °C to 60 °C

• Dimensions: 17cm x 4.5cm x 3.1cm

• Weight: 258g
