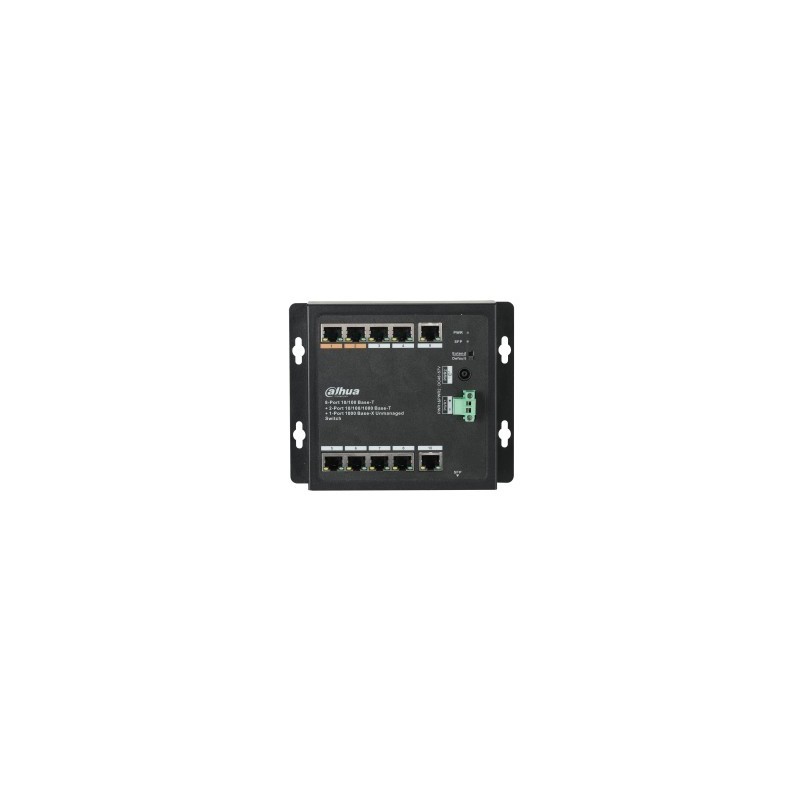

Dahua PFS3111-8ET-96-F - 10-Port POE Switch

Dahua PFS3111-8ET-96-F 10-Port POE Switch

The Dahua PFS3111-8ET-96-F switch is an unmanaged Layer 2 PoE switch for use in video surveillance or PoE-powered IP network installations.

Points of attention / recommended uses

• Since it is an unmanaged switch, there are no advanced configuration capabilities (VLANs, QoS, SNMP, etc.). If you need network management functions, you will need to consider a "manageable" switch.

• The "Extend" mode allows coverage of up to 250 m, but at a speed of only 10 Mbps — this is only useful for segments where bandwidth is not critical.

• Ports 1 and 2 support Hi-PoE (up to 60 W) — useful for demanding devices (PTZ cameras, projectors, etc.).

• Make sure to provide DC power in the 48-57V range, and use good quality cables (Cat6 or better) to minimize losses.

• Electrical protections (4 kV / 2 kV) provide increased resistance to power surges, which is useful for outdoor installations or in sensitive environments.

Characteristics Dahua PFS3111-8ET-96-F - 10-Port POE Switch:

• Lightning protection: 4 kV common mode

• 8-Port RJ45 10/100M PoE Switch

• 2 x 10/100/1000M RJ45 ports

• 1 x 1000M SFP port

• Port 1 ≤60W, Port 2 ≤60W, Port 3-8 ≤30W

• Total power 96W

• Switching capacity: 13.6 Gbps

• Transfer Rate 5.65Mpps

• Packet buffer memory: 2 MB

• Power supply: DC 48-57V

• PoE standards: IEEE802.3af, IEEE802.3at, Hi-PoE

• Operating Temperature -30°C to 65°C

• Dimensions: 15.8cm x 13cm x 2.5cm
