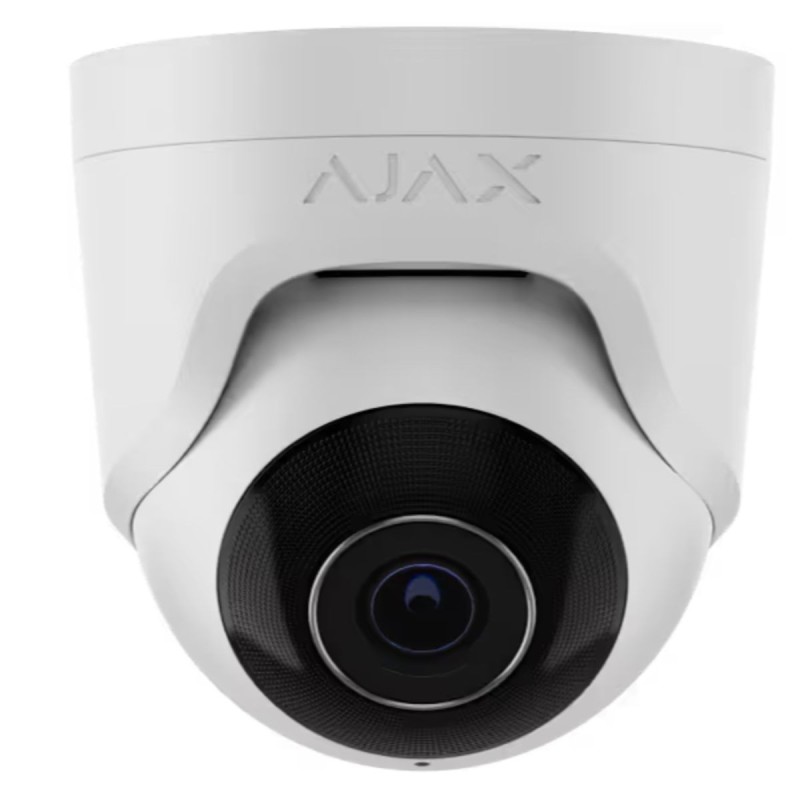

Ajax TurretCam HL - 8 MP 4 mm White Camera

The Ajax TurretCam HL camera (8 Mp/4mm) is a wired IP camera with Hybrid lighting offering an exceptional resolution of 3840 × 2160 px and a wide viewing angle of 75 to 85°. Designed for reliable surveillance, it incorporates advanced motion and object detection features, as well as robust weather protection.

Highlights of the TURRETCAM 8 MP camera:

• High-definition resolution : Captures sharp, detailed images with a maximum resolution of 3840 × 2160 px.

• Intelligent Detection: Using AI to detect humans, pets, and vehicles.

• Ruggedness and reliability: Durable design with IP65 and IK08 protection, resistant to extreme weather conditions and impacts.

The Ajax TurretCam HL (8 Mp/4 mm) camera is an advanced surveillance solution, ideal for environments requiring enhanced security. With its high resolution of 3840 × 2160 px, it captures crisp and sharp images, enabling efficient monitoring of your premises. Its 75 to 85° viewing angle covers a wide area, reducing blind spots.

Equipped with a fast, encrypted JetSparrow video protocol, the TurretCam ensures secure data transmission. It is compatible with NVR storage up to 16TB or microSD storage up to 256GB, providing storage flexibility as needed. The H.265 and H.264 video codecs ensure efficient compression and optimal image quality.

The camera incorporates True WDR, improving image quality in contrasting light conditions. Its ability to detect motion and objects using AI allows for proactive monitoring, with specific alerts for humans, pets, and vehicles. The intelligent IR illumination automatically adjusts the intensity to prevent overexposure and allows you to see clearly up to 35 meters in the dark.

In terms of protection, the TurretCam has several layers of security, including mTLS for an encrypted connection, cloud authentication, and Secure Boot to prevent firmware spoofing. It is also weatherproof (IP65) and impact resistant (IK08), ensuring reliable performance even in extreme conditions.

Features of Ajax TurretCam HL camera

• Models:

  • 5 Mp/2.8 mm: Resolution up to 2880 × 1620 px, angle of view from 100° to 110°, frame rate up to 25 FPS.
  • 5 Mp/4 mm: Resolution up to 2880 × 1620 px, 75° to 85° angle of view, frame rate up to 25 FPS.
  • 8 Mp/2.8 mm: Resolution up to 3840 × 2160 px, angle of view from 100° to 110°, frame rate up to 20 FPS.
  • 8 Mp/4 mm: Resolution up to 3840 × 2160 px, 75° to 85° angle of view, frame rate up to 20 FPS.

• Video stream:

  • Video protocol: JetSparrow (encrypted, peer-to-peer).

• Storage:

  • NVR: Hard drive up to 16 TB (SATA connectivity, 3.5" size).
  • microSD: Up to 256GB.

• Video codec: H.265, H.264.

• Dynamic range: True WDR.

• Communication network: Ethernet up to 100 Mbps.

• Key features:

  • Motion detection.
  • Object detection via AI (Humans, Pets, Vehicles).
  • Intelligent IR illumination up to 35 m.

• Ajax doubts:

  • Activation of the cameras by the Ajax detectors with immediate sending of the results to the remote monitoring application.

• Microphone: Audio recording with G711-ULAW, G711-ALAW, G726, G722 codecs.

• Power supply:

  • Power supply unit: 12 V⎓ ± 20%, 1 A.
  • Maximum consumption: 15 W.

• Ethernet port: IEEE 802.3at PoE standard.

• Tamper Protection:

  • mTLS for data protection.
  • Authentication via Cloud.
  • Secure Boot against firmware spoofing.
  • OTA signature verification for secure updates.

• Case:

  • Dimensions: 103 × 98 × 98 mm.
  • Weight: 496 g.
  • Operating temperature: −30 °C to +60 °C.
  • Permissible humidity: up to 90%.
  • Ingress protection: IP65, IK08.

• Colors: Black, White.

• Complete Kit:

  • TurretCam (8 Mp/4 mm).
  • Installation diagram.
  • Installation kit.
  • Quick Start Guide.
