Wiser S940530 Odace - 10A Zigbee Black Onyx Connected Push Button

The Wiser Odace connected push switch allows S940530 to control lighting in manual ON/OFF control locally or remotely, compatible with the Wiser app and voice assistants.

Highlights of the connected push button S940530W

• Refined and modern design, flush finish

• Connected relay switch for optimal management of electrical devices

• Compatible with the Wiser app for remote control

• Allows you to create "moments" to group multiple actions together for simplified control

• Configurable for actions triggered automatically or at scheduled times

What is the product used for? Where to install it?

This Odace connected relay switch offers simple management of electrical appliances with remote control via the Wiser app. It allows you to create "moments", grouping together several actions for a more fluid management of lighting and connected devices.

What do I receive when I buy this reference?

The Odace control comes with its integrated mounting bracket and paint cover. It is to be combined with an Odace, Odace Metal, Odace Architect or Odace Origine trim plate.

What are the advantages of installation?

The mechanism is easy and robust to attach to any type of flush-mounted box thanks to its rigid support. It offers easy automation, with scenarios that trigger actions automatically or on a predefined schedule.

What standards and norms does the product meet?

Made with premium and recycled materials (57% on average across the range), with IP21D and IK04 protection ratings, Odace offers increased longevity and a controlled environmental impact

Features Wiser S940530 Odace - 10A zigbee connected push button black Onyx

• Product Brand Schneider Electric

• Odace range

• Type of product or equipment Connected switch

• Related accessories Wiser hub generation 2

• Name Mobile App Wiser Home

• Complementary

• Product presentation Mechanism with mounting bracket and hubcap

• Type of technology Electronics

• Function Switch Relay Switch

• Number of Scales 1

• Actuator Push Button

• Charging Type Incandescent Lamp: 2200 W for 230 V AC

• Halogen lamp: 2000 W for 230 V AC

• LED lamp: 200 W at 230 V AC

• Motor (single phase): 1000 VA for 230 V AC

• TBT halogen lamps: 1050 VA for 12 V AC

• TBT halogen lamps: 500 VA for 12 V AC

• Compact fluorescent lamp: 200 W at 230 V AC

• [EU] rated operating voltage 230 V AC 50 Hz

• Rated current 10 A

• Standby power consumption Max. 0.4 W

• Fuse rating to be paired 10 A

• Colour shade Black (RAL 9005)

• Surface Finish Matt

• Untreated surface treatment

• Number of FONCTION1 keys

• Local Signage Commissioning: 1 LED (amber/green/red)

• Signalling function Commissioning

• Number of Outputs 1

• Control Type Remote control via auxiliary push button

• Software name Wiser Home App: Pulse generator management

• Max Zigbee Connected Devices: 10 (Smart Device)

• Technology Type Zigbee

• Product Data Sheet

• Specifications

• Oct 9, 2025 1

• Disclaimer: This documentation is not intended to replace and cannot be used to determine the suitability or reliability of these products for any specific application

• Communication Network Type Wireless (2.4GHz), 2.5mW at < 50m

• System Requirements Wiser App

• Up to 11 wireless devices, distance: < 50 m

• Connection Mode Screw Terminals

• Number of free connectors 2

• Terminal clamping capacity 1.5... 2.5 mm² for rigid cable(s)

• Shape of the Pozidriv No. 1 screw head and combi

• Tightening torque 0.5 N.m

• ASA + PC material: hubcap

• PC (polycarbonate) GF10 FR: envelope

• PC (polycarbonate) GF10 FR: mounting bracket

• Flush mounting bracket

• Mounting the Flush Device

• Fastening method By screws and claws

• Installation Type Indoor Installation

• Lot quantity 1 piece

• Packaging Type: Carton

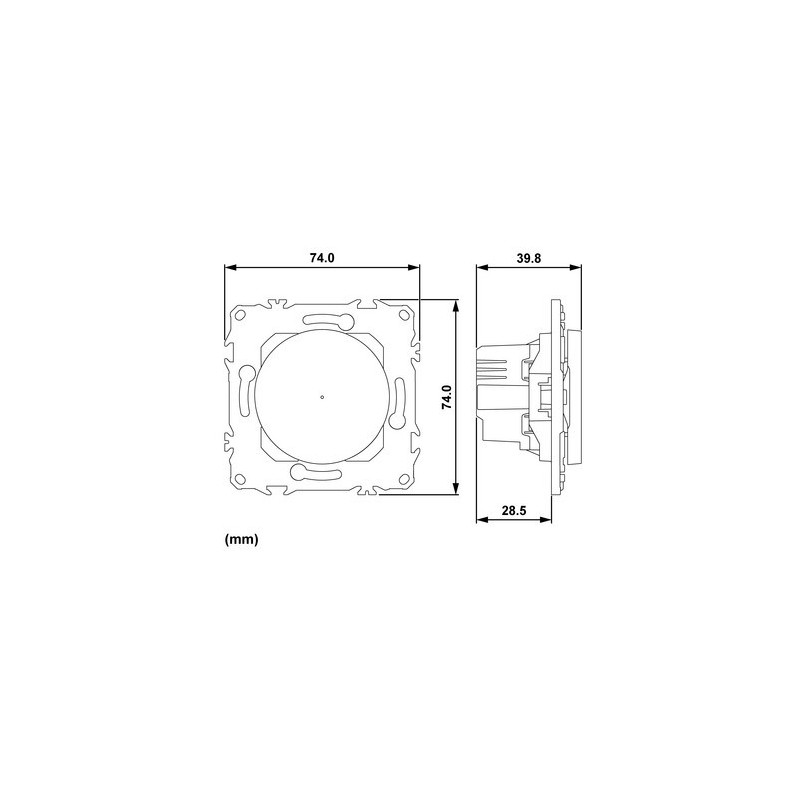

• Mounting depth 29 mm

• Depth 41 mm

• Width 73.9 mm

• Height 73.9 mm

• Net Weight 0.061 kg

• Chemical Resistance Lactic Acid Resistant

• Dilute quaternary ammonium resistant

• Resistant to diluted bleach

• Diluted ammonia resistant

• Resistant to soapy water

• Windshield washer resistant

• Hydrogen peroxide resistant 10 volumes

• Hexane resistant

• Environment

• Ambient air temperature in operation 5... 40 °C

• Room temperature for storage 5... 40 °C

• IP protection degree IP20 indoor

• Relative humidity 5... 95% 0-50°C

• Impact resistance IK IK02

• Environment Feature Indoor Use

• Protection and environmental issues

• Lead-free

• CE Product Certifications

• IP protection degree IP20
