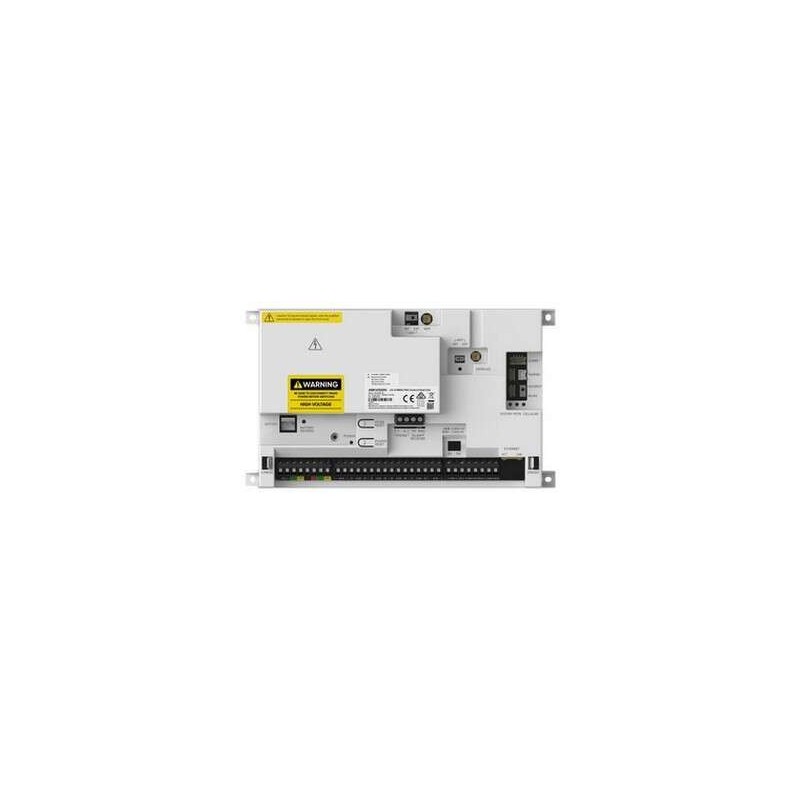

Hikvision DS-PA502-64 - AX PRO HYBRID control unit
€156.99
VAT included
Hikvision DS-PA502-64 - AX PRO HYBRID control unit
Garanties sécurité(à modifier dans le module "Réassurance")
Politique de livraison(à modifier dans le module "Réassurance")
Politique retours(à modifier dans le module "Réassurance")
Hikvision DS-PA502-64 - AX PRO HYBRID control unit
Hikvision DS-PA502-64 AX PRO HYBRID hub
Technical characteristics
The product is equipped with 64 zones and 64 outputs, also offering 32 additional zones. It allows for custom configuration with up to 32 bus devices per dual bus. Connectivity is provided by a self-adaptive 10/100 Mbps interface and an 802.11b/g/n Wi-Fi module operating on the 2.4 GHz band.
User Management
The system incorporates advanced user management, allowing the presence of an installer, an administrator and up to 100 operators. This makes it easier to delegate tasks and manage access across different permission levels.
Notification systems and protocol
The product supports dual-path notification to Alarm Receiving Centers (ARCs) with redundancy functionality for increased security. ISAPI and OTAP protocols are supported, providing extensive compatibility with various management and communication systems.
Video Verification & Compliance
Video verification is optimized with support for the built-in 4-channel IPC video verification cache. In addition, the device complies with level EN50131 Grade 2 safety standards, ensuring compliance with European safety standards.
Event Log
The event log offers a storage capacity of 4950 records, of which 1000 are guaranteed in flash memory. This allows for in-depth monitoring and analysis of events that have occurred within the system.
Physical Specifications
Designed to withstand a variety of conditions, the product performs effectively in temperatures between -10°C and 50°C. Its dimensions are 23.1 cm x 13.3 cm x 4.4 cm, and it weighs 488 g, making it easy to fit into various environments.
Power supply and autonomy
The system is powered by a 4-conductor alarm cable, consisting of at least 2 conductors of 0.5 mm² and 2 of 0.22 mm². A 12VDC rechargeable sealed lead-acid (SLA) battery with a maximum capacity of 7Ah is required but not included by default, providing a bus range of up to 500m.
Features of Hikvision DS-PA502-64 - AX PRO HYBRID control unit:
-
64 zones and 64 outputs
-
32 zones
-
1 installer, 1 administrator, 100 operators
-
Dual buses, up to 32 bus devices per bus
-
Dual-path notification to ARC, support ARC redundancy
-
Support for built-in 4-channel IPC video verification cache
-
Support for ISAPI, OTAP protocols
-
EN50131 Grade 2
-
Event log records: 4950 of which 1000 are required in flash memory
-
4-conductor alarm cable (at least 2 x 0.5 mm² + 2 x 0.22 mm²)
-
Range per bus: Up to 500 m
-
10/100 Mbps self-adaptive
-
Wi-Fi 802.11b/g/n (2.4 GHz)
-
1x Rechargeable Sealed Lead-Acid (SLA) Battery (Not Included by Default)
-
Battery capacity: 12VDC, up to 7Ah
-
Operating temperature: -10 °C to 50 °C
-
Dimensions: 23.1cm x 13.3cm x 4.4cm
-
Weight: 488g
DS-PA502-64
6 Items
Data sheet
- Security
- Central
- Type
- Hybride
- Range
- AX PRO Hybride
Specific References
