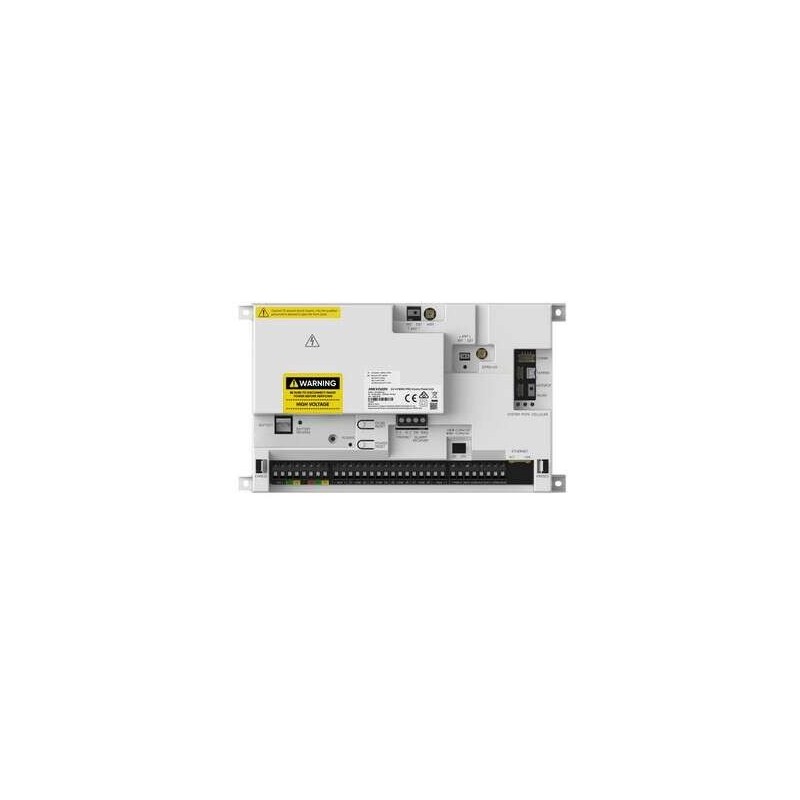

Hikvision DS-PA502-96 Ax Pro Hybrid 96-zone motherboard

Characteristics of the zones and exits

This system has 96 zones and 96 outputs, thus offering great flexibility in the management of different spaces and functions. It also allows for 48 zones to be configured, making it suitable for a wide range of security configurations.

User Management

The system allows the management of an installer, an administrator and up to 128 operators, thus allowing flexible and multi-user access control for different levels of responsibility and privileges.

Bus infrastructure

Featuring a dual bus, this system allows for the connection of up to 48 bus devices per bus, which promotes easy expansion and integration of safety devices throughout the infrastructure.

Notification and redundancy

Dual-path notification to ARC ensures reliable and continuous communication with the alarm receiving center, with redundancy options for added security.

Compatibility and protocols

The system supports the built-in 4-channel IPC video verification cache, as well as ISAPI and OTAP protocols, allowing for easy integration with other security systems and technologies.

Certification and compliance

Designed to the EN50131 Grade 2 standard, this product meets security requirements for both domestic and commercial installations, ensuring an adequate level of monitoring and intrusion detection.

Recording Capability

With an event log recording capacity of 4950 entries, of which 1000 are required in flash memory, the system allows past events to be saved and viewed for effective security analysis and auditing.

Network connection

It offers network connectivity through a 4-conductor alarm cable and has a 10/100 Mbps self-adaptive Ethernet port, as well as 802.11b/g/n Wi-Fi in 2.4 GHz, guaranteeing flexibility and reliability in communication with other devices.

Power and battery

The main power supply required is 100-240VAC, 50/60Hz with a consumption of 0.3A. A 12VDC and up to 7Ah rechargeable sealed lead-acid (SLA) battery can be used to provide backup power, although not included by default.

Operating conditions

The system is designed to operate in an extended temperature range of -10°C to 50°C, ensuring stable performance even in demanding or varied environments.

Dimensions and weight

With compact dimensions of 23.1 cm x 13.3 cm x 4.4 cm and a weight of 488 g, this product is easy to install and integrate into various environments, while optimizing the available space.
