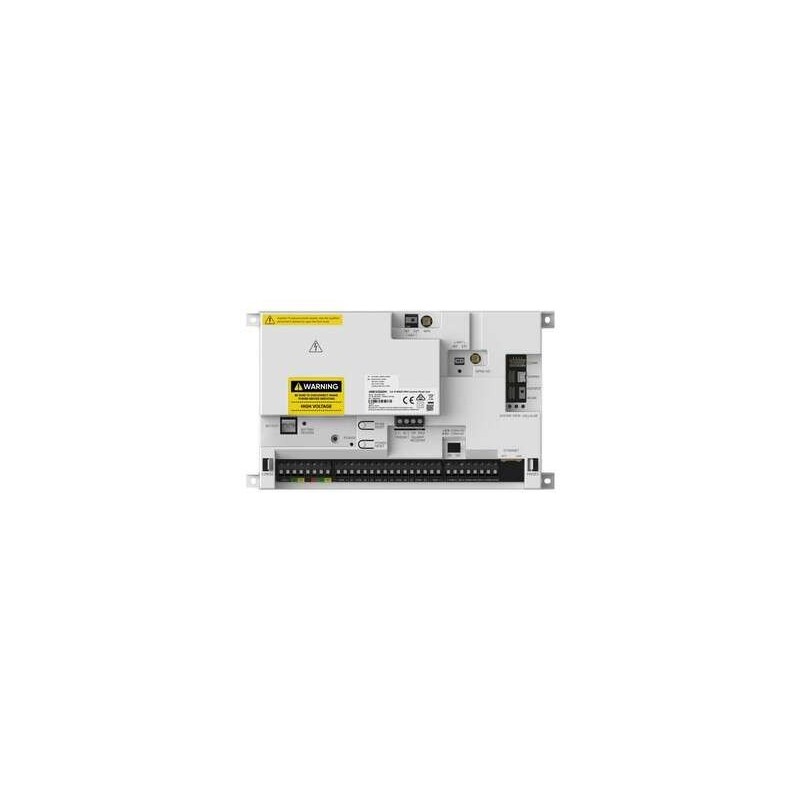

Hikvision DS-PA502-128 - AX Hybrid PRO 128-zone motherboard

Hikvision DS-PA502-128 AX Hybrid PRO 128-zone motherboard

General features

This product offers 128-zone and 128-output management, with an additional 64 zones built-in capability. It allows the configuration of an installer, an administrator and up to 128 operators, offering great flexibility of use.

Connectivity and protocols

The system is equipped with a dual bus, allowing the connection of up to 64 devices per bus. For reliable notifications, it incorporates dual-path notification to ARC, with support for ARC redundancy. ISAPI and OTAP protocols are also supported for broad compatibility.

Video and Logging

The system supports a built-in 16-channel IPC video verification cache, allowing for efficient video surveillance. In addition, it records 4950 events in the log, 1000 of which are mandatory, stored in the flash memory for enhanced security.

Communication and networking

For network connectivity, it has a self-adaptive 10/100 Mbps interface. In addition, it offers Wi-Fi connectivity thanks to support for 802.11b/g/n standards on the 2.4 GHz band.

Power and Cabling

Power is powered by a rechargeable sealed lead-acid (SLA) battery, not included by default, with a capacity of 12VDC and up to 7Ah. The system uses a 4-core alarm cable, with minimum specifications of 2 x 0.5 mm² + 2 x 0.22 mm² to ensure a secure installation.

Bus range and range

The product offers a bus range of up to 500 meters, allowing for flexible and often extended installation in various configurations.

Safety Standard

This system is EN50131 Grade 2 compliant, ensuring a robust level of safety for a variety of applications.

Environment and dimensions

Suitable for different environments, the system operates in a temperature between -10 °C and 50 °C. Its dimensions are 23.1 cm x 13.3 cm x 4.4 cm for a weight of 488 grams, making it compact and light, making it easy to install.
