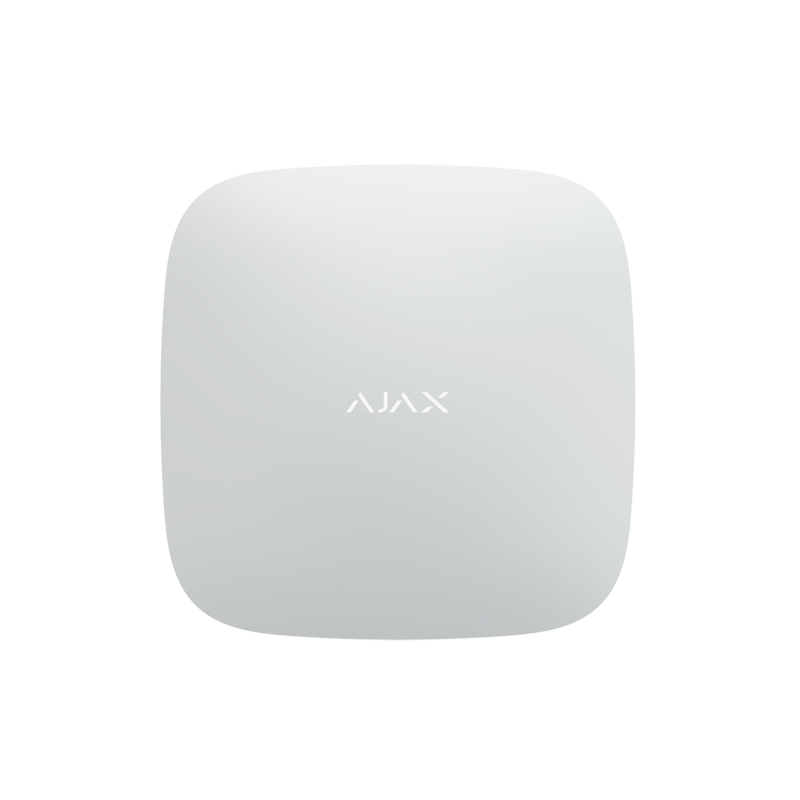

Ajax Hub 4G White - 4G IP Alarm Panel

Ajax Hub 4G White Central Alarm 4G IP

Ajax alarm control panel with IP transmitter and 4G GSM

The 4G IP 4G HUB is not compatible with outdoor and photo detectors

Wireless HUB Ajax alarm panel for professional installations both residential and commercial.

Communication is via Ethernet and/or 4G GSM.

The supervised bidirectional link of the detectors and accessories is done by radio frequency according to its own protocol, with Jeweller, in the 868 MHz band, obtaining Grade 2 certification.

The wireless link achieves high reliability thanks to its advanced Jeweller protocol, high-security AES encryption.

The exclusive instantaneous and intelligent monitoring system detects signal inmutation by identifying the determined time of inactivity and in turn helps reduce maintenance costs since it manages to significantly extend the life of the detectors' batteries without compromising safety.

The wireless signal is capable of covering distances of up to 2 km in an open space.

It also includes features to facilitate installation, such as Smart-Bracket or the simple connection of the detectors to the alarm system.

It allows up to 100 wireless zones, which allows these devices to be grouped into up to 9 different groups, on which the different actions of arming, partial arming or disarming can be performed.

These Ajax wireless devices have different possible configurations, such as a 24-hour zone, an area with an input or output delay...

The AJ-HUB Hub has a 110-250 V AC power input and a rechargeable backup battery for up to 15 hours.

Ethernet communication is its main advantage for remote access, both for the user and for the installer, as it allows its connection via the AJAX PRO Desktop PC software and mobile applications for iOS and Android Ajax Security Systems (end user) and AJAX PRO: Tool for Engineers (professionals).

Thanks to these applications, it is possible to configure the entire system, manage users and their permissions, add devices, group them into rooms and change their configuration.

Using the cloud supports dynamic IP addresses without the need to open ports.

Ajax users will enjoy many benefits, as you can receive reliable and instant notifications in both desktop software and mobile apps.

In addition to the Ajax alarm system, from the mobile app, you can add up to 10 IP cameras or video recorder channels to be able to check the live video feed.

Features Ajax Hub 4G White Central 4G IP Alarm

• Analyze the data

• Collects detector information

• Notifies the system owner and monitoring station in the event of an alarm

• Tamper Protection, Jamming Detection, Tamper-Proof

• Max. number of users: 50

• Max. number of groups: 9

• Max. number of cameras that can connect: 10

• Ethernet/4G

• Power supply: 110 – 240 V

• Certification: Grade 2, CE

• Not compatible with MOTIONCAMs

• Operating temperature + 5° С to + 40° С

• Dimensions: 16.3cm x 16.3cm x 3.6cm

• Weight: 350g
