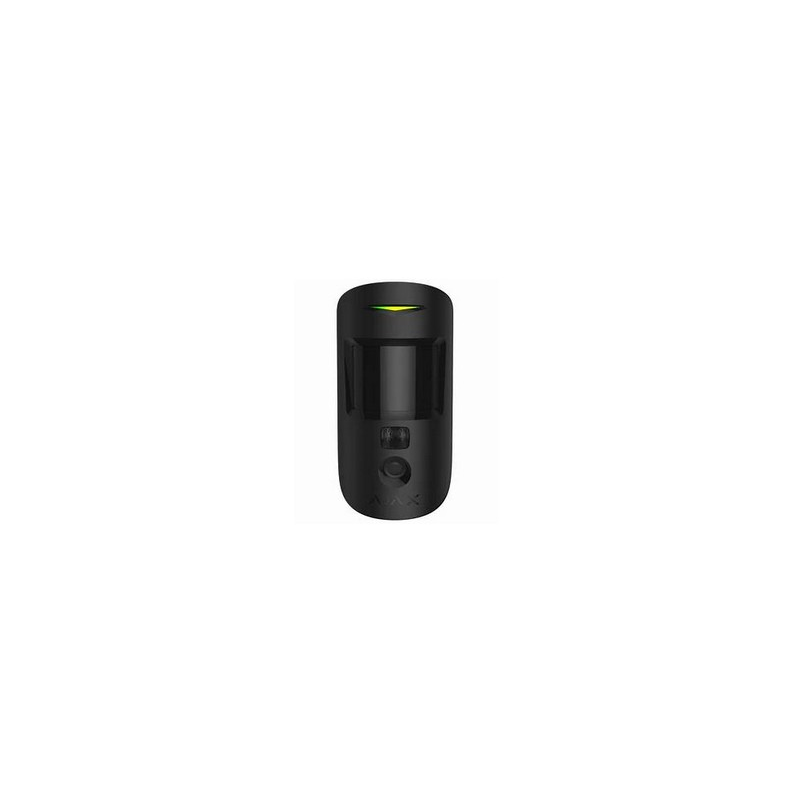

Ajax MotionCam HDR - Motion Detector with Black Camera

The Ajax MotionCam HDR Jeweller Black (P/N 117743.307.BL1) is a wireless motion detector with built-in camera, designed for Ajax security systems. Intended for indoor use, it combines precise PIR motion detection with visual alarm verification through HDR photo taking.

When motion is detected, the MotionCam HDR automatically captures a series of images, allowing the user or monitoring station to quickly confirm the nature of the alert. HDR technology improves image quality in high-contrast environments, while infrared illumination ensures actionable photos even in complete darkness.

The detector offers a detection range of up to 12 meters with a wide coverage angle. It incorporates pet immunity, reducing false alarms caused by pets up to about 20 kg.

Communication with the Ajax hub is bidirectional, encrypted and secure, ensuring reliable transmission of alarms and images. The MotionCam HDR is battery-operated with a battery life of up to several years, reducing maintenance.

Easy to install and configure via the Ajax app, the MotionCam HDR Jeweller Black is an ideal solution for enhancing the security of homes, offices and business premises while maintaining efficient and privacy-friendly visual verification.

Technicalfeatures of the Ajax MotionCam HDR Jeweller Black (ref. 117743.307.BL1)

General

• Wireless motion sensor with built-in HDR camera

• Use: Indoor

• Color: Black

• Security: Grade 2 level (alarm standard)

• Manufacturer's warranty

Motion Detection

• Sensor Type: PIR (Passive Infrared)

• Detection range: up to 12 m

• Detection angle: ≈ 88.5°

• Detected Motion Speeds: 0.3 to 2 m/s

• Sensitivity: Adjustable

• Recommended installation height: ~2.4 m

Camera & Photo-verification

• Built-in camera with HDR technology

• Photo resolution: up to 640 × 480 px (adjustable)

• Number of photos per alarm: 1 to 5 images

• Infrared (IR) illumination for night photos

• Photo transmission time: usually ≤ 20 s depending on parameters and conditions

Animal immunity

• Tolerated animal weight: up to ~20 kg

• Tolerated animal height: up to ~50 cm

Communication

• Secure two-way radio technology

• Radio bands: 868 MHz

• Maximum radio range in open field: up to ~1,700 m

• Encrypted transmission of alarms and images

• Built-in tamper protection

Power supply and autonomy

• Powered by 2 CR123A batteries (pre-installed)

• Battery life: up to ~4 years depending on frequency of use

• Low battery notification

Environmental conditions

• Operating temperature: –10 °C to +40 °C

• Maximum humidity: ≤ 75%

• Ingress protection: IP50 (indoor use)

Dimensions & Weight

• Approximate dimensions: 135 × 70 × 60 mm

• Approximate weight: ~170 g

Compatibility

• Only works with Ajax hubs

• Requires pairing with an Ajax hub to enable all functions
