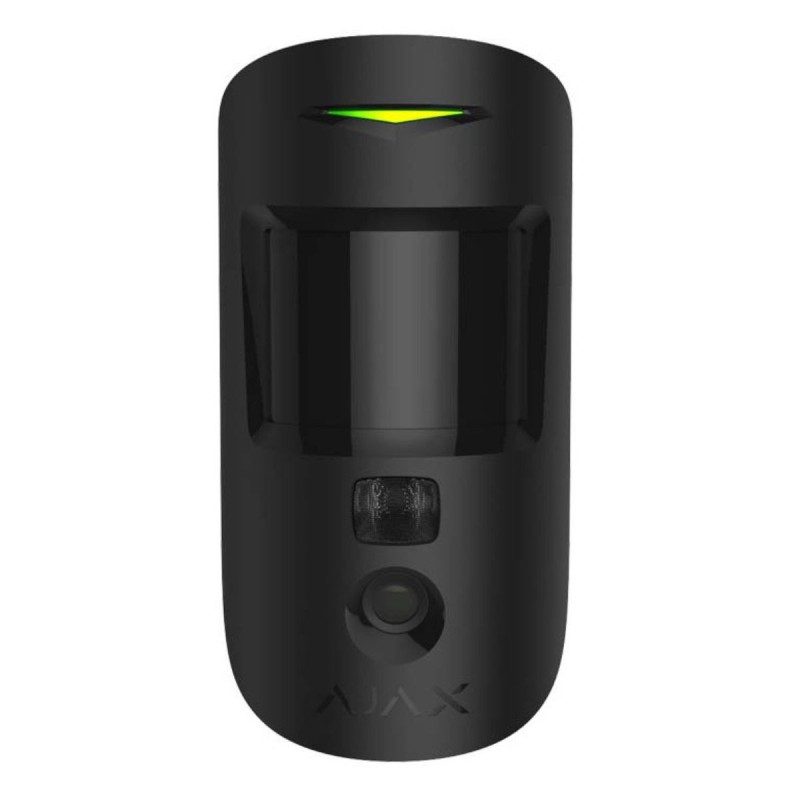

Ajax MotionCam HDR PHOD - Motion Sensor Photo on Demand Black

The Ajax MotionCam HDR Black is a wireless PIR motion detector with built-in photo camera in black color designed for Ajax security systems. It not only detects intrusions, but also provides high-quality photo-verification using HDR technology, improving the accuracy and speed of reacting to an alarm.

This detector is integrated into an Ajax alarm system with a hub and transmits images when movement is detected, allowing an intrusion to be visually confirmed without the need for continuous video surveillance. It combines precise detection, secure communication and long battery life, all in a discreet black housing.

Main functions

• PIR motion detection up to ~12 m with a wide coverage angle.

• Built-in camera with HDR technology for sharp photos even in high light contrast conditions.

• Photo-verification of alarms : sending 1 to 5 images per event.

• Infrared (IR) illumination for shooting in the dark.

• Immunity to pets up to ~20 kg and ~50 cm in height to reduce false alarms.

• Secure two-way radio transmission (alarm + images) with long range.

• Anti-tamper protection (alert if forced withdrawal). (Setik)

• Simple installation (SmartBracket wall mounting, QR code).

? Key technical features

• Detection range : up to ~12 m.

• Detection angle : ~88.5° horizontal.

• Photo resolution : up to 640 × 480 px.

• Number of images per alarm : 1 to 5.

• Radio range : up to ~1,700 m in open field.

• Power supply : 2 x CR123A batteries (battery life up to ~4 years).

• Operating temperature : approx. –10°C to +40°C.

• Protection class : IP50 (indoor use).

• Dimensions : ~135 × 70 × 60 mm.

• Weight : ~167 g.

Convenient use

The MotionCam HDR Black is ideal for Ajax alarm systems where effective photo-verification of security events is required. Photos are sent via the Ajax Security System app as soon as motion is detected when the system is armed, allowing you to quickly check the situation on the spot or remotely.

It must be paired with an Ajax hub (Hub 2 or Hub 2 Plus) to function properly.

Features Ajax MotionCam HDR PHOD - Motion Sensor Photo on Demand Black

General

• Wireless motion sensor with built-in HDR camera
• Use: Indoor
• Color: Black
• Security level: Grade 2
• Manufacturer's warranty

Motion Detection

• Sensor Type: PIR (Passive Infrared)
• Range: up to 12 m
• Detection Angle: ~88.5° Horizontal
• Sensitivity: Adjustable
• Recommended installation height: ~2.4 m
• Pet immunity: up to 20 kg and 50 cm

Camera & HDR photo-verification

• Built-in camera with HDR technology for clear images even in high-contrast conditions
• Photo resolution: up to 640 × 480 px
• Number of photos per alarm: 1 to 5
• Built-in infrared light for night vision
• Fast transmission of photos during an alarm (often < 10 sec)

Communication

• Secure two-way radio
• Frequency: 868 MHz
• Free field radio range: up to 1,700 m
• Data encryption and tamper protection

Power supply and autonomy

• 2 x CR123A batteries pre-installed
• Battery life: up to 4 years depending on use
• Low battery notification

Operating Conditions

• Temperature: –10 °C to +40 °C
• Maximum humidity: ≤ 75%
• Ingress protection: IP50 (indoor use)

Dimensions & Weight

• Dimensions: ~135 × 70 × 60 mm
• Weight: ~167 g

Compatibility

• Must be paired with an Ajax hub to work
• Compatible with Hub 2, Hub 2 Plus and other Ajax hubs

The MotionCam HDR Black is an indoor PIR motion detector that combines reliable detection, HDR photo-verification, pet immunity, secure communication and long battery life, ideal for securing your home or business premises while being able to visually check any alarm quickly.
