Dahua DHI-ARA62 - 6V-24V DC Power Module

Dahua DHI-ARA62 - 6V-24V DC Power Module

The Dahua DHI-ARA62 Power Module is a DC auxiliary power module designed for use with the AirShield Hub 2 (e.g. central ARC3800H). This module allows the control panel to be powered with an external DC voltage between 6 V and 24 V DC, either as a replacement for the original internal power supply or as a backup or redundant power supply to ensure continuity of operation in the event of a failure or variation of the main source. It is especially useful when the power plant needs to be powered from a battery, solar panel, or external DC stabilized power supply in residential or professional installations.

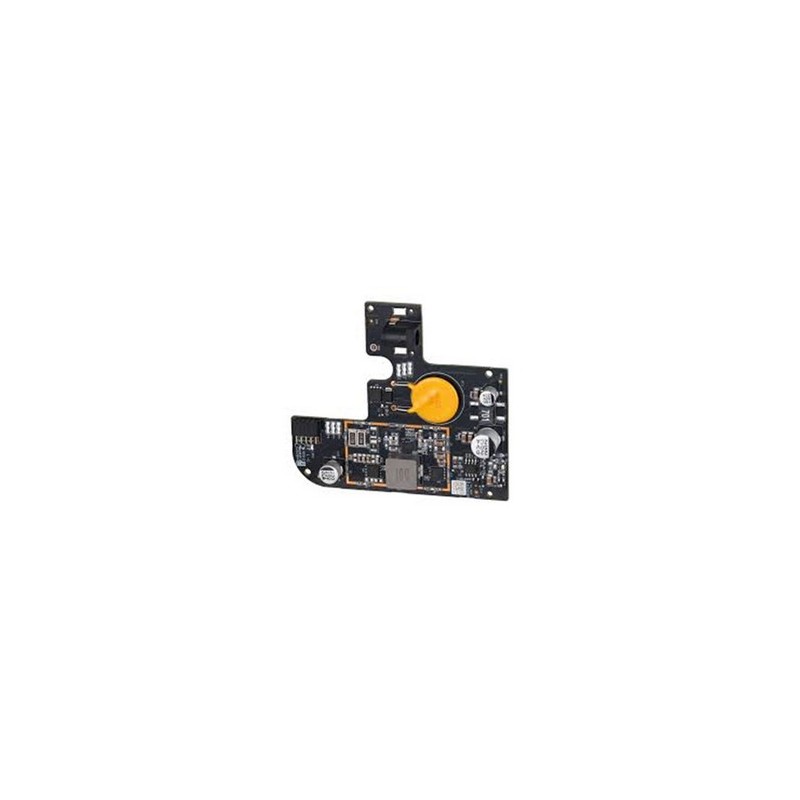

The module comes in the form of a compact board built inside the Hub 2 housing, with clear connection terminals for input voltage. It is designed for simple installation and replacement, fitting directly into the intended location of Hub 2. Once connected, it provides a regulated output to the motherboard of the control panel, ensuring stable and reliable voltage, which contributes to the robustness and reliability of the entire alarm system. This module is suitable for indoor environments and operates under normal temperature conditions.

Features of Dahua DHI-ARA62 - 6V-24V DC Power Module :

• Product type : DC power supply module for alarm control panel

• Model : Dahua DHI-ARA62

• Use : Provide external regulated DC power to an AirShield Hub 2

• Compatibility : Designed for Hub 2 (e.g. ARC3800H)

• Input voltage range : 6 V to 24 V DC

• Regulated Output Voltage : 5V DC for Hub Motherboard

• Maximum Output Current : 1.2 A

• Connection mode : screw terminals or standard connector

• Internal protection : protection against surges or moderate variations

• Installation : Indoor, integrated into the intended slot of Hub 2

• Operating temperature : approx. -10 °C to +55 °C

• Dimensions : approx. 89 mm × 79 mm × 12 mm

• Net weight : approx. 20 g

• Main applications : Hub 2 external DC power supply, redundant power supply, use with battery or solar source
