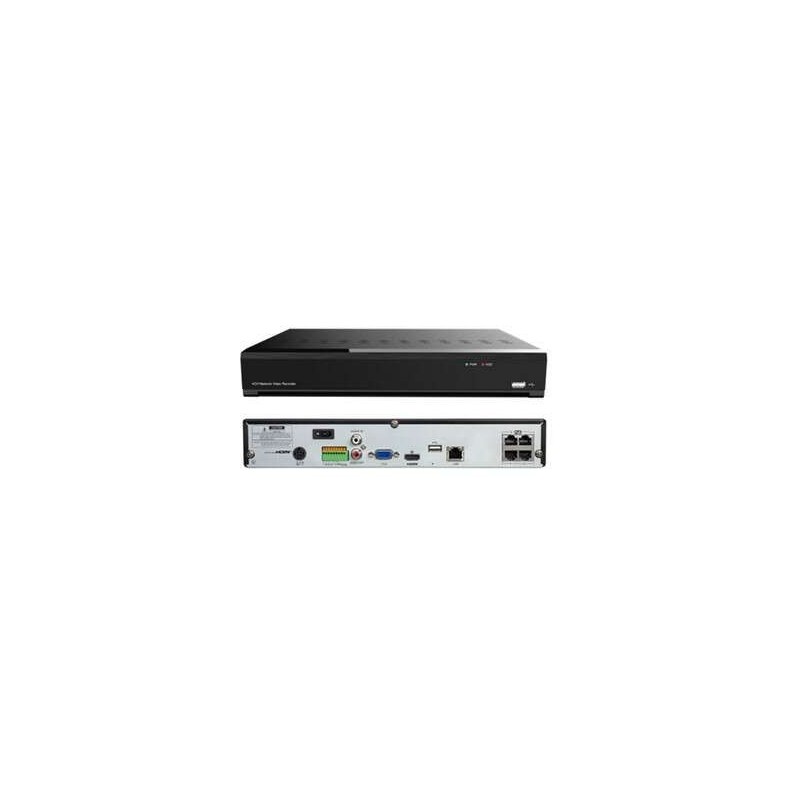

Risco RVNVR044K1RA - 12MP Recorder, Pedestrian/Vehicle AI, HDMI4K

Risco RVNVR044K1RA 12MP 4-Channel POE Recorder, Pedestrian/Vehicle AI, HDMI4K

Video recording performance

The recorder provides high-definition capture with a resolution of up to 12 MP per channel, enabling detailed image exploitation for identification and analysis. This per-channel capability ensures accurate scene reproduction, suitable for environments that require the highest quality of video evidence, such as sensitive sites, public areas or industrial facilities. The processing architecture is optimized to support multiple high-definition streams simultaneously without noticeable degradation of display fluidity.

Video outputs and display

The device incorporates a 4K HDMI port for direct connection to an ultra-high-definition monitor or video wall, ensuring accurate display of the details captured by the cameras. An additional 1080p VGA port allows connection to more standard displays, making it easy to integrate into existing supervisory stations. Dual video output allows for flexible management of control screens, with the option to dedicate one display to live viewing and another to playback or configuration.

Power supply and network connections

The logger is powered by 48 V / 1.2 A, ensuring stable operation in professional facilities. It has a 10/100 Base-T Ethernet port for LAN integration and remote access to video streams and configuration. Four built-in PoE ports, compatible with the 802.3at/af standard, provide power and data transmission for the connected IP cameras, simplifying cabling and reducing the need for injectors or external power supplies.

Storage Management

The device allows the integration of a single hard drive with a capacity of up to 10 TB, not included, providing a large storage volume for archiving high-resolution recordings. This capability adapts to scenarios requiring long retention periods or a high number of continuous recording cameras. Compatibility with high-capacity hard drives helps optimize the cost of storage per day of archiving, while making maintenance easier with a simple single-HDD architecture.

Video Compression Formats

The recorder supports the H.264, H.265 and H.265 Plus compression standards, allowing you to adjust the quality/weight ratio of files according to network and storage constraints. H.265 and H.265 Plus significantly reduce the bandwidth and disk space required compared to H.264, while maintaining high image quality. The H.265 Plus mode is particularly suitable for high-resolution multi-camera installations, optimizing the overall cost of infrastructure while preserving the readability of details.

On-board artificial intelligence features

The platform integrates AI functions directly at the recorder, enabling automated detection of pedestrians and vehicles. These intelligent analytics make it easier to filter relevant events, reduce false alarms, and improve operator responsiveness. AI-generated metadata can be used for targeted search in recordings, based on the types of objects detected, to speed up investigations and exploitation of video archives.

Alarm and control interfaces

Four alarm inputs are available for the connection of external sensors such as intrusion detectors, door contacts or technical systems, allowing recordings, video markings or notifications to be triggered automatically. A relay output offers the possibility of controlling third-party devices, such as sirens, lights or interlock systems, depending on the events detected by the recorder or cameras. This integration of inputs/outputs reinforces the coherence between video protection and alarm management.

Onvif Interoperability and Compatibility

The recorder is compatible with ONVIF S, G and T profiles, ensuring wide interoperability with many brands and models of IP cameras. The S profile ensures support for live video and basic control, the G profile covers recording and replay management, while the T profile brings advanced features for high-definition video and analytics. This compatibility facilitates integration into heterogeneous systems and allows future developments without dependence on a single manufacturer.

Features of Risco RVNVR044K1RA - 12MP Recorder, Pedestrian/Vehicle AI, HDMI4K:

• Recording: 12MP per channel
• 1x 4k HDMI port, 1x 1080P VGA port
• Power supply: 48V/1.2A
• 4x alarm inputs, 1x relay output
• Compression: H264, H265, H265 Plus
• AI by the recorder: pedestrian detection, vehicle detection
• 1x 10/100 baseT ethernet port, 4x PoE ports (802.3at/af)
• Storage 1 HDD up to 10TB (HDD not included)
• ONVIF S/G/T compatibility
