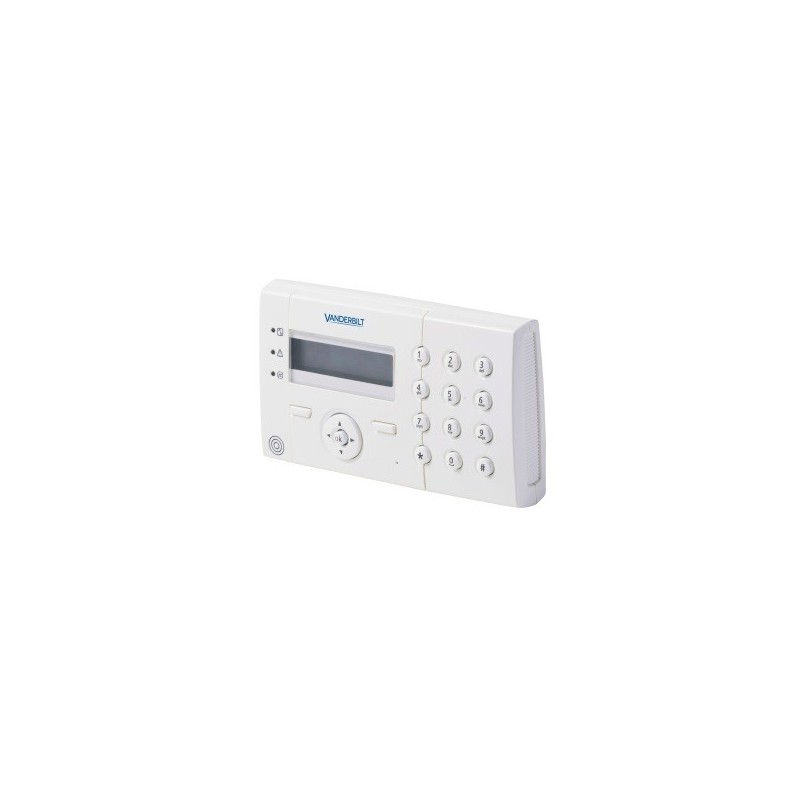

Keypad badge reader SPSPCK421 for central alarm Vanderbilt SCP
The wired keyboard standard SPCK421 takes on the characteristics of the keyboard SPCK420.
It integrates a proximity reader compatible with the badges EM4102' allowing the user to control the system (start/stop of 1 or several areas of oversight).
The keyboard can receive a card receiver radio SiWay SPCW112, transforming the keyboard into a true gateway radio remote used to expand the reach of detectors/remote controls of the site
Features:
|
LCD display |
2 x 16 characters |
|
Specific keys |
2 function keys, 1 navigation key |
|
LED indicators |
3 status LEDs |
|
Badge reader |
the integrated 125 Khz, EM 4102) |
|
Interfaces |
X-Bus (input / output) |
|
Contact self-monitoring |
Self-protection at the opening |
|
Operating voltage |
9.5 ~ 14 Vdc |
|
Intensity of operation |
Max. 110 mA /12 Vdc (backlight' |
|
Operating current optimal |
Max. 80 mA at 12 Vdc |
|
Mounting |
Applied |
|
Operating temperature |
-5 ~ +40 °C |
|
Color |
RAL 9003 (white) |
|
Weight |
0,210 kg |
|
Dimensions (L x H x P) |
148 x 85 x 33 mm |
|
Key Box / Cabinet |
Plastic casing (ABS) |
|
Standard / Certificate |
EN50131-1 / EN50131-3, Grade 3, Class II |
SPCK421.100
Data sheet
- Security
- Keyboard/Remote Control
- Type
- Wired
- Standard
- NFA2P
Specific References
- EAN13
- 4025515470953
