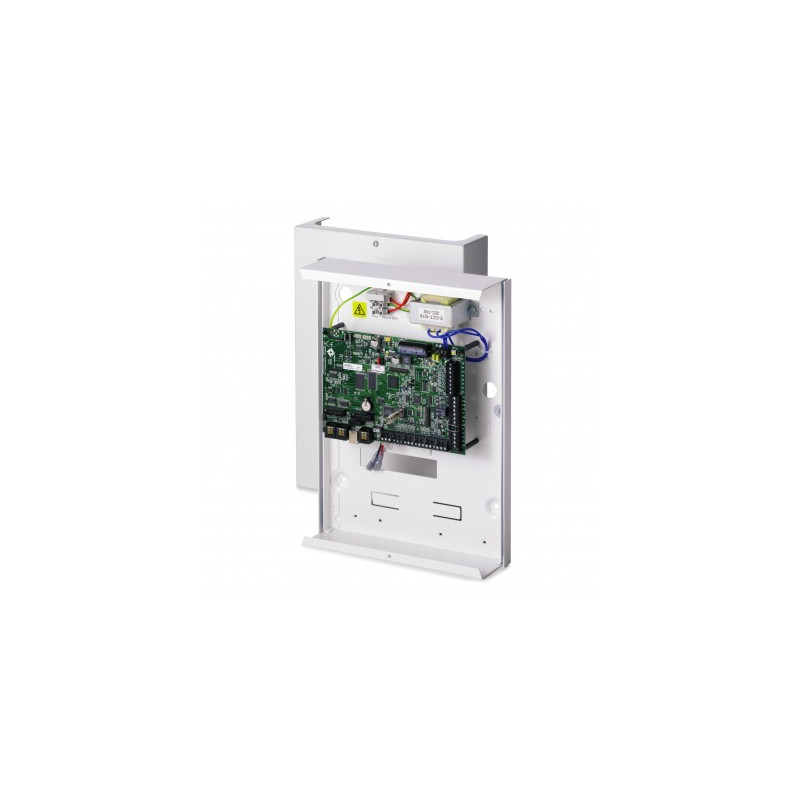

Acre SPC4320.320-L1- Vanderbilt 8/32 NFA2P Alarm Panel Built-in WEB Server

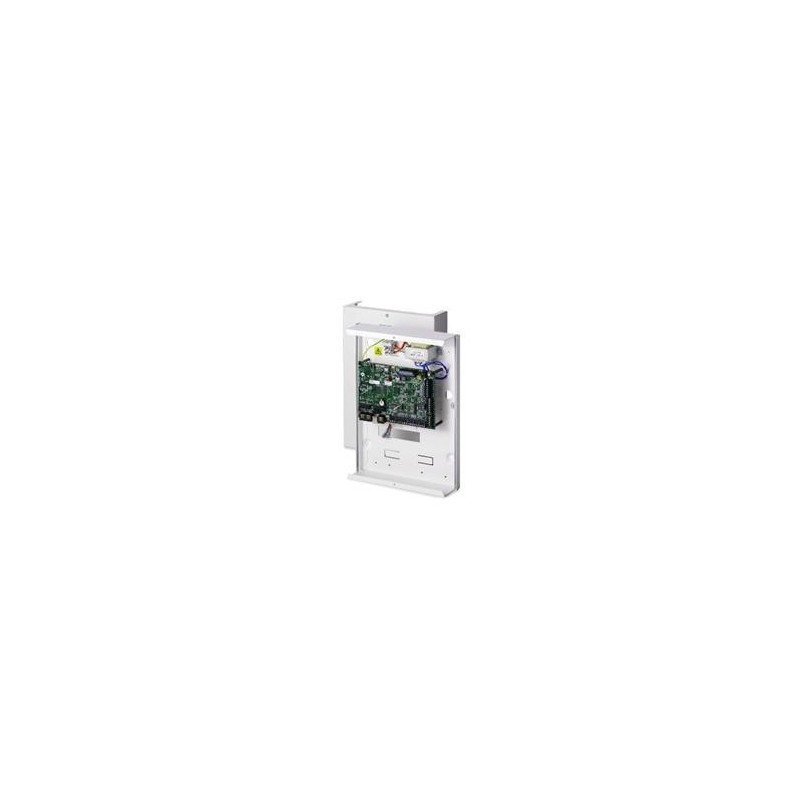

Vanderbilt 8/32 zone NFA2P alarm panel with integrated WEB server

IP-native anti-intrusion system with an NFA2P embedded web server

Comes with documentation and programming software on CD-ROM.

Vanderbilt's SPC4320 alarm control system combines optimal intrusion detection and access control capabilities into a single system that can be expanded to meet customer and needs requirements up to 32 inputs (8 on motherboard), 30 outputs (6 on motherboard), 4 keypads, 4 access doors, 8 IP audio/video verification zones.

The control panel manages 1 X-BUS port (1 branch), 4 sectors, 100 users and badges with different access levels, a memory for 1000 intrusion alarms and 1000 access events, an integrated web server, 2 connectors to receive PSTN and GSM/GPRS communication options, an on-board Ethernet interface.

The system is expandable with radio receivers and supports up to 32 radio detectors (coexisting with wired areas).

The unit is mounted in a self-protected case with space for a 7Ah battery.

Remote Access

The functionality of the SPC system can be extended to meet the specific requirements of a customer or market. The different

System triggers (e.g. areas, sectors, user identification and time periods) can be combined logically to activate processes.

Using the SPC Connect over IP Plug & Play feature, the SPC hub can be accessed remotely via the web interface or mobile app.

Access Control

Connected badge readers facilitate entry and exit from buildings using the card and/or a PIN code via 4 entry doors or 2 entry/exit doors, combined with automatic activation or decommissioning of sectors according to the rights of each user.

Key features Acre SPC4320.320-L1- Vanderbilt 8/32 NFA2P alarm control panel integrated WEB server:

• Native Ethernet interface

• Multi-language user interface

• Grade 2 EN50131 compliance

• Communications EN50136 compliant

• Self-protection when opening

• Configurable calendars

• Programmable logic functions

• Advanced access control features

• Audio and video alarm verification over IP

• Maximum number of wired inputs 32

• Number of inputs in the plant 8

• Maximum number of outputs 30

• Programmable Sectors 4

• Max number of users 100

• SMS Maxi 32

• Event memory 1000 intrusion events

• 4K7/4K7 End-of-Line Resistors (Default), 25 Other Selectable Combinations,Anti-Masking Contact Management (3R)

• Interfaces

  • 2 X-BUS (2 branches or 1 loop)

  • 2 RS232

  • 1 USB

  • 1 RJ45 Ethernet

  • 1 port for fast timer

• Access Control

  • Event memory 1000 access events

  • Maximum number of doors (inlets/inlets/outflows) 4/2

  • Maximum number of door groups 2

  • Compatible badge technologies

    • Mifare

    • Classic 1K

    • Cotag

    • DESfire

    • EM4102

    • Wiegand(26- 32 - 37 bit)

    • HID Corporate 1000

• Radio

  • Maximum number of radio detectors 32

  • Max number of radio remote controls 32

  • Maximum number of radio detectors received by a radio access point 20

  • Module radio compatible SPCW110, SPCW112

• Connectivity

  • Web Server HTTPS (Embedded) TLS Encryption

  • Native IP

  • Plug-in communication interfaces PSTN modem or GSM/GPRS modem (max. 2 optional modems)

  • SIA communication protocol, Contact ID, SMS

  • Quick Programmer Management Yes

  • Local Software Update / Remote Update of IP Communication Devices and Modules via Ethernet

  • IP alarm transmission channels via GPRS, PSTN, GSM

  • Alarm protocol for IP FlexC transmission – EDP multi-channel communication

  • Analogue protocols SIA, Extended SIA 1, Extended SIA 2, Scantronic, Contact ID, SMS

• Electrical and mechanical specifications

  • Main power supply 230 V AC, +10 to -15%, 50Hz

  • Operating current Max. 160 mA at 12 V DC

  • Idle current Max. 140 mA at 12 V DC

  • Output voltage 13-14 VDC under normal conditions (mains present and battery charged)

  • Auxiliary current (nominal) Max. 750 mA at 12 V DC

  • Battery Type NP7-12FR (12 V 7 Ah) (battery not supplied with the product)

  • Self-protection contact When opening

  • Operating temperature 0 to +40 °C

  • Metal case (1.2 mm mild steel),

  • Dimensions SPC4320.320: 264 x 357 x 81 mm

• Certification:

  • EN50131-1 / EN50131-3 / EN50131-6, Grade 2, Class II

  • NF & A2P 2 shields

  • CH: SES EN CH Grade 2

  • BE: INCERT

  • UK: PD6662:2010
