Vanderbilt SPCE652.100 - 8E/2S Plug-in for SPC Alarm
€130.93
VAT included
Vanderbilt SPCE652.100 8E/2S Plug-in for SPC Alarm
Garanties sécurité(à modifier dans le module "Réassurance")
Politique de livraison(à modifier dans le module "Réassurance")
Politique retours(à modifier dans le module "Réassurance")

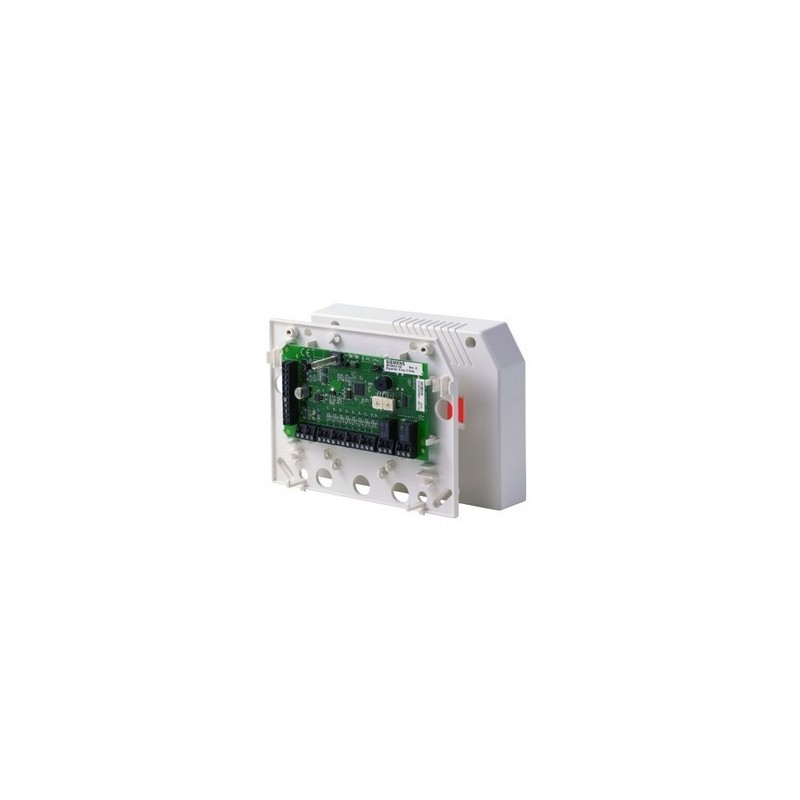

Vanderbilt SPCE652.100 8E/2S Plug-in for SPC Alarm
The addition of an SPCE650 transponder on the X-BUS of an SPC control panel extends the system with 8 wired inputs and 2 additional configurable relay outputs.
The operation of these inputs and outputs is identical to those located on the motherboard of the plant.
Each input can be wired in different modes (No' Nf' balanced 1R' balanced 2R' balanced 3R).
The 2 outputs are PSTN relay outputs free of potential.
The transponder is delivered in a self-protected box when opened and torn off.
It is 'among other things' equipped with an LED and a buzzer to easily locate it on the equipped site.
Features Vanderbilt SPCE652.100 plug-in 8E / 2S for SPC alarm:
-
Expansion box 8 wired zones and 2 relay output
-
Number of entries on the map: 8
-
Number of relay output on the board: 2 x 30 Vdc /1A Max
-
Standard: NFA2P Grade 3
-
Standards: EN50131-1 / EN50131-3, Grade 3, Class II
-
Balancing resistors: double 4k7 (default), many possible configurations including NO/NF
-
Laison interface with the control panel: X-BUS (1 input and 1 output)
-
Self-protection on opening and tearing
-
Integration into logical functions
-
More than 22 configurable input types
-
More than 24 combinations of balancing resistors
-
Fully configurable outputs
-
Operating Voltage: 9.5~14V DC
-
Consumption: 12 V DC at 80 mA max.
-
Operating Temperature: -10°~50°C
-
Dimensions: 20 x 15.3 x 4.7 cm
-
Weight: 350g
SPCE652.100
9 Items
Data sheet
- Security
- Expansion Module
- Type
- Wired
- Standard
- NFA2P
Specific References
- EAN13
- 4025515470854
