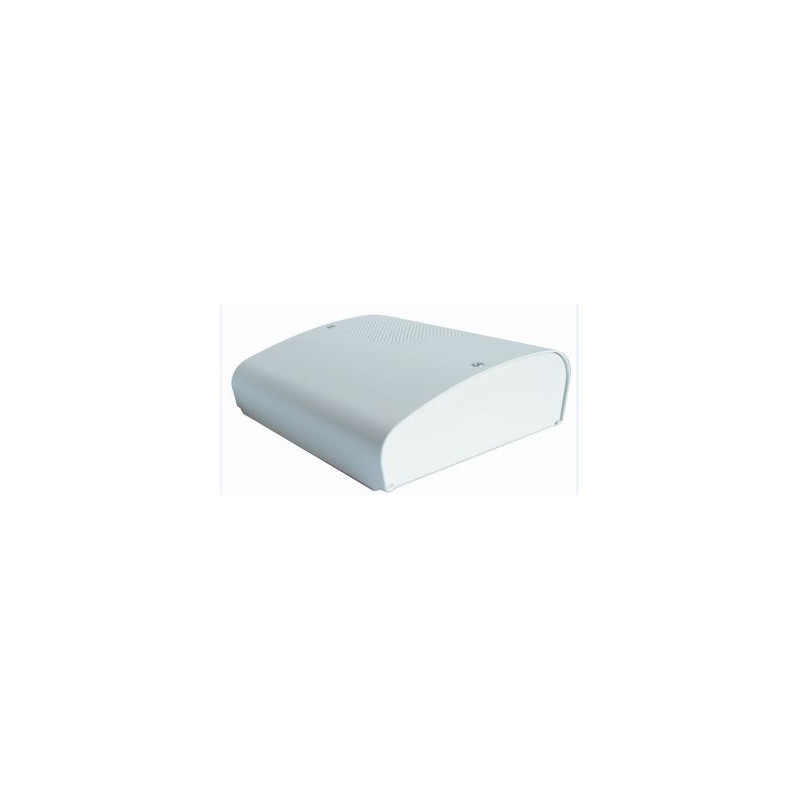

Siren alarm wired indoor self-powered steel Altec SIMAX

The siren alarm If-max has two alarm inputs that allow the dissemination of two modulations are different and complementary. The first extremely powerful to deter the intruder.

The second responds perfectly to any other need of modulation necessary for a sound-signalling (MPCS, start part of the alarm, pre-alarm management-door relief...)

Two outputs are also available, providing information in the event of failure of the remote power supply and the internal battery.

The sirens Altec have exclusive use of the SICB (Intelligent System for Charging the Battery), to ensure a perfect charge to the battery at 13.8 V even when the charging voltage provided by the power plant is only 12 V. This system ensures the sustainability of your

alarm systems.

Innovative and environmentally friendly, the SICB allows you to increase the life of the battery, thus offering a technological breakthrough compared to the other sirens of the market.

Features:

Box steel very strong.

• Box self-protected opening and pull-out.

• Dimension : 191 x 176 x 68 mm - Weight : 1.65 Kg.

• Degree of protection IP 40 and IK 08. Indoor use dry exclusive.

Power

• Supply voltage on +12V charge : 10.8 to 14.5 Vdc.

• Power consumption in standby : 5 mA.

• Power consumption on battery alarm 1.7 A on input 1 and 0.2 amps on input 2.

• Limitation of charging current to 200 mA.

• Autonomy on internal battery : 60 hours.

• Protection against surge, esd and reverse polarity.

• Internal battery Type 12 V - 2 Ah (not supplied).

Operation

• 2 trigger inputs with modulations different (intrusion – signaling ).

• 2 outputs for the default of the remote power supply and battery.

• Sound power of 114 db (input 1) and 103 dBa (input 2) at 1 meter according to standard.

• Sound power level of 117 dBa (input 1) according to old NF.

• Not triggering after power-on as long as the blocking signal is not appeared.

• 8 switches, 2 positions to select :

- Triggering of each of the 2 entries in the appearance/disappearance of a positive or a negative.

- The activation or deactivation of the second input.

- The sound volume min – max (input 1).

- Configuration of the outputs default to NO or nc.

- Selection of the duration of the alarm to 3 minutes or 15 minutes.
