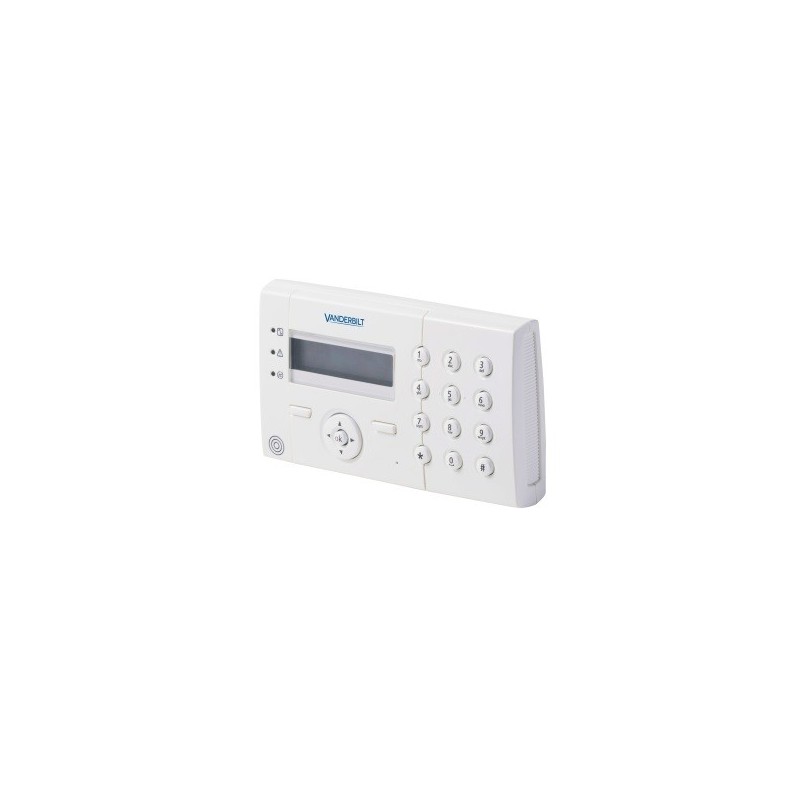

Keyboard SPCK420 for central alarm Vanderbilt SCP

Name: Keyboard SPCK420 for central alarm Vanderbilt SCP
Brand: Vanderbilt
SKU: SPCK420.100
Price: 137.2 EUR
Availability: OutOfStock

Review (0)

€137.20

VAT included

In the course of resupplying

Keyboard SPCK420 for central alarm Vanderbilt SCP

Garanties sécurité(à modifier dans le module "Réassurance")
Politique de livraison(à modifier dans le module "Réassurance")
Politique retours(à modifier dans le module "Réassurance")

Keyboard SPCK420 for central alarm Vanderbilt SCP

The LCD keypad wired standard SPCK420 provides the user with an interface iconic to order his security system.
Its display is capable of displaying 32 characters and the keyboard' all the two-to-blue backlight allow you to control the system under all lighting conditions.
The user navigates through the intuitive menu in the middle of the centre navigation key.
The keyboard also has programmable keys providing a contextual use, as well as alphanumeric keys to enter data if necessary.

The keyboard can receive a card receiver radio SiWay SPCW112, transforming the keyboard into a true gateway radio remote used to expand the reach of detectors/remote controls of the site.

Features:

LCD display	2 x 16 characters
Specific keys	2 function keys, 1 navigation key
LED indicators	3 status LEDs
Interfaces	X-Bus (input / output)
Contact self-monitoring	Self-protection at the opening Self protection tear
Operating voltage	9.5 ~ 14 Vdc
Intensity of operation	Max. 90 mA /12 VDC (backlight' The LEDs and buzzer activated)
Operating current optimal	Max. 45 mA at 12 Vdc
Mounting	Applied
Operating temperature	5° ~ +40 °C
Color	RAL 9003 (white)
Weight	0,210 kg
Dimensions (L x H x P)	148 x 85 x 33 mm
Key Box / Cabinet	Plastic casing (ABS)
Standard / Certificate	EN50131-1 / EN50131-3, Grade 3, Class II EN: NF & A2P Grade 3 CH: ITS Rank 3
